MT-PA5030 tower
Contact us

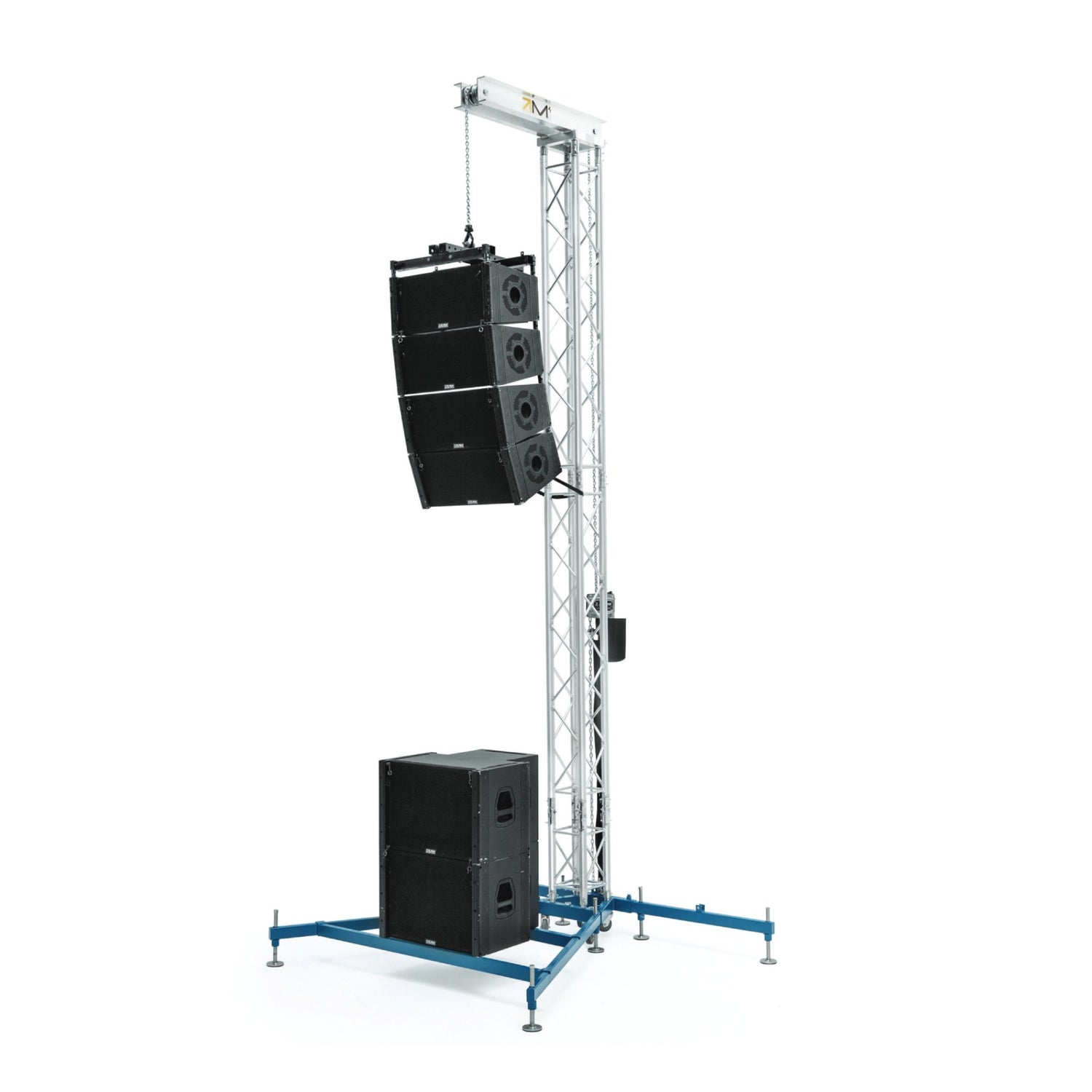

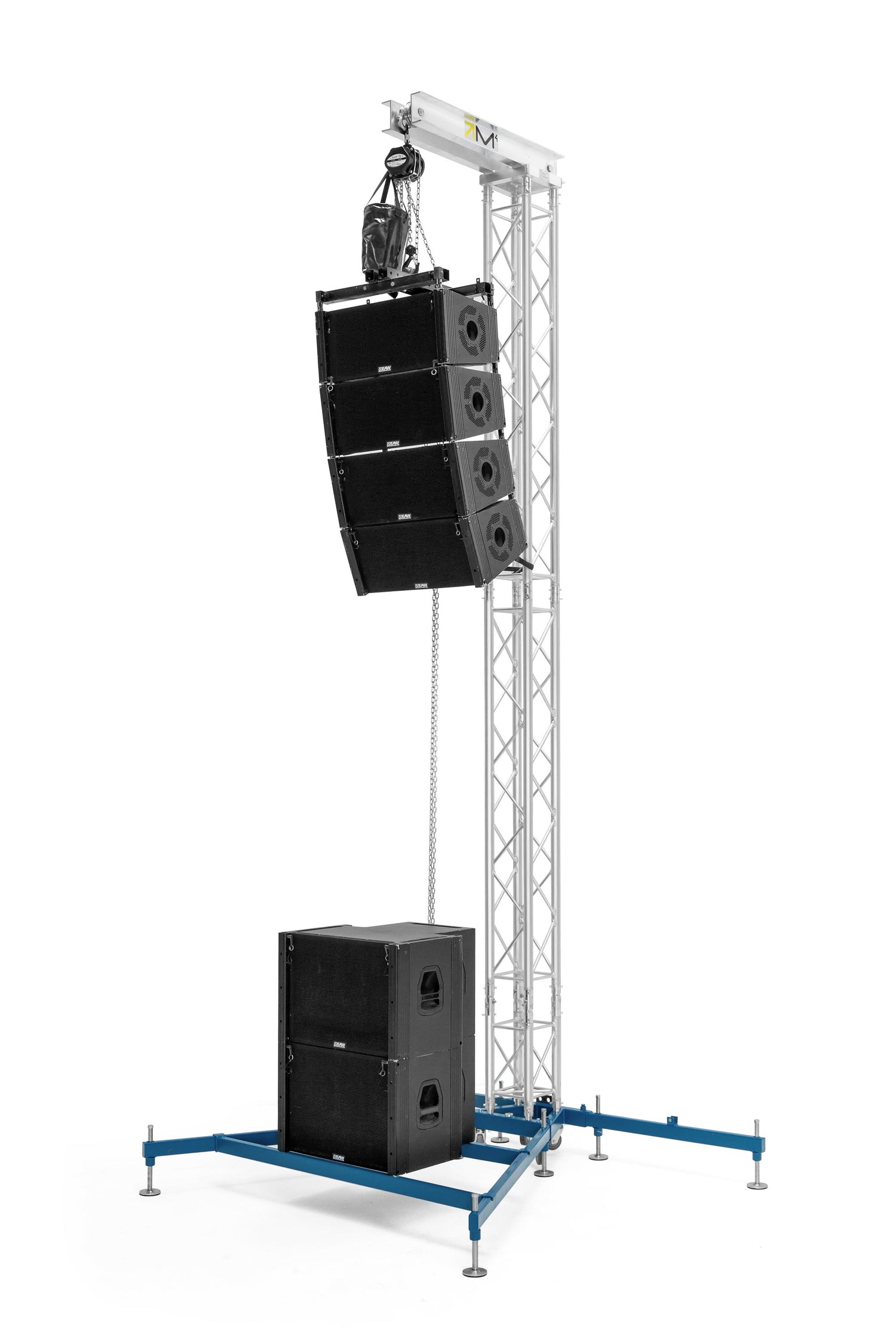

The new MILOS MT-PA5030 PA fly tower was designed for live events that require a compact PA fly tower for small systems that can be used both indoors and outdoors.
Set up is easy. Only a few 290 QTV truss components are needed to erect the tower and only 2 persons are required to accomplish this feat. Due to a height of just under 5 meters, approvals by authorities are not necessary. The design allows for placement of base cabinets or amplifier racks on top of the outriggers.
Key Features

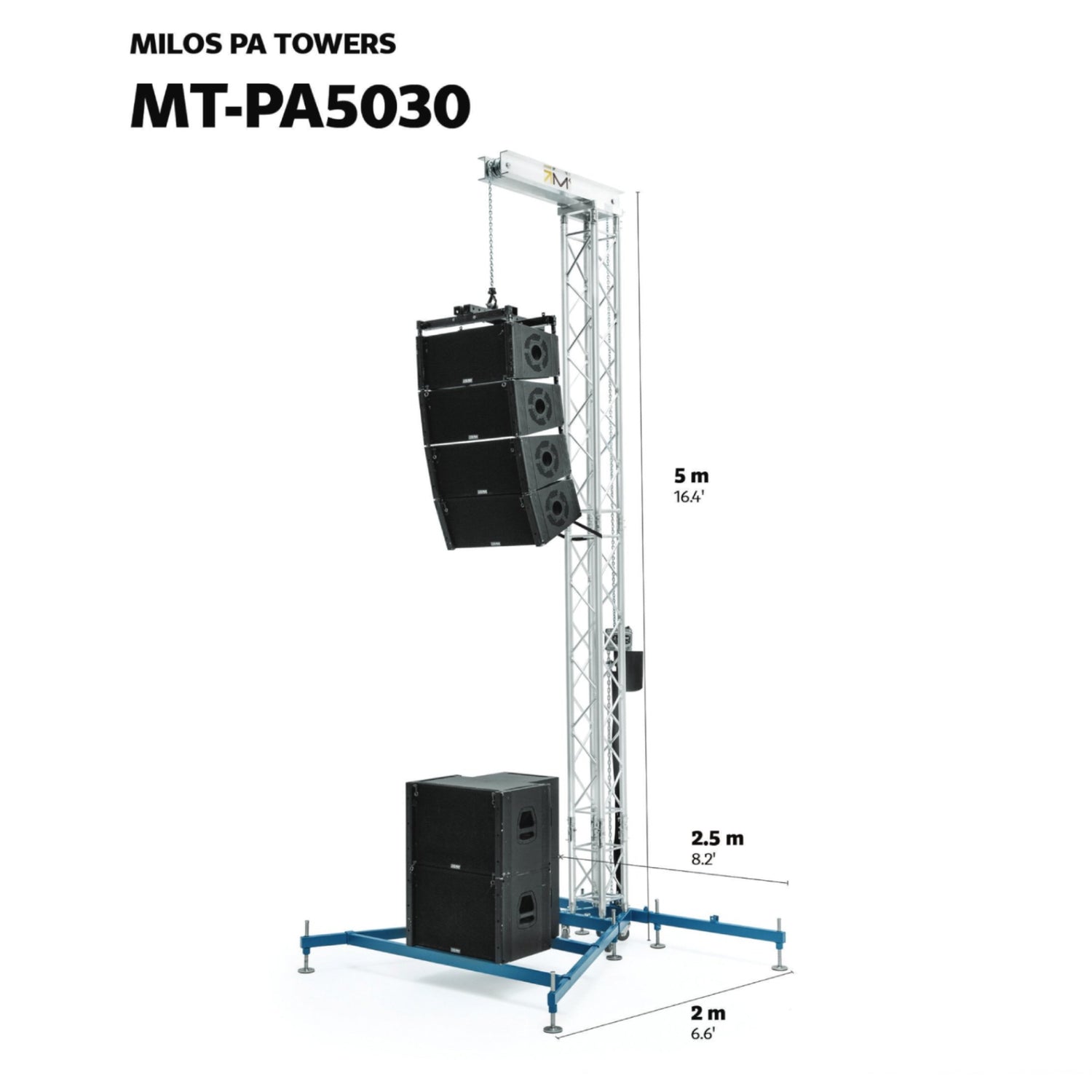

- Footprint at set up is 8.2' x 6.6' (width x depth), 2.5 × 2 m
- Max. load 660 lbs (300 kg)
- 16.15 ft2 (1.5 m2) max. front surface area of the PA
- 10.76 ft2 (1.0 m2) max. side surface area of the PA
- 110 lbs (50 kg) required ballast
- 45 mph (20m/s) in-service wind loading
- Out-of-service wind loading as per DIN-EN 13814

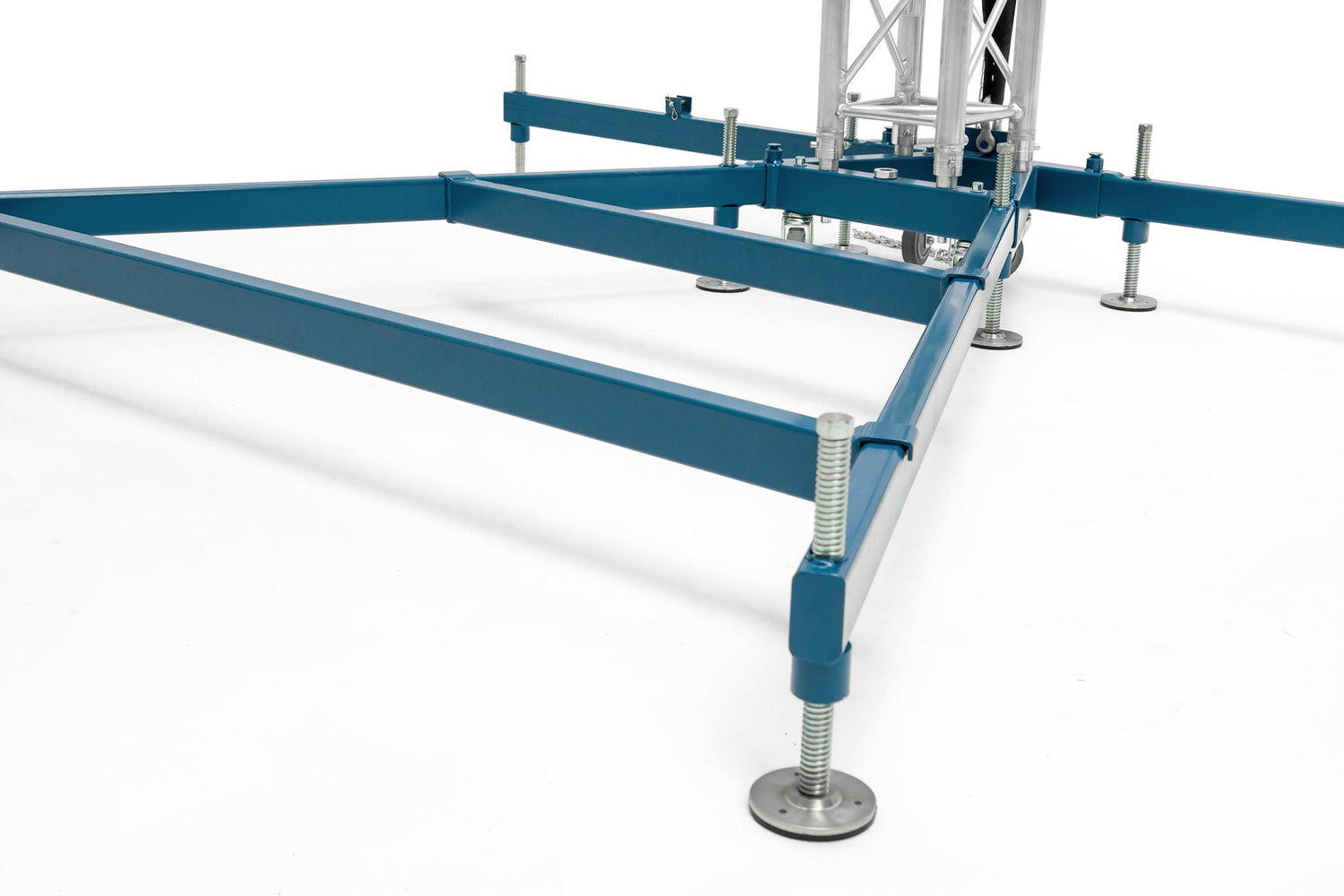

- Base frame is V-shaped steel centrepiece with set of 2 bespoke and 2 long MT1 outriggers

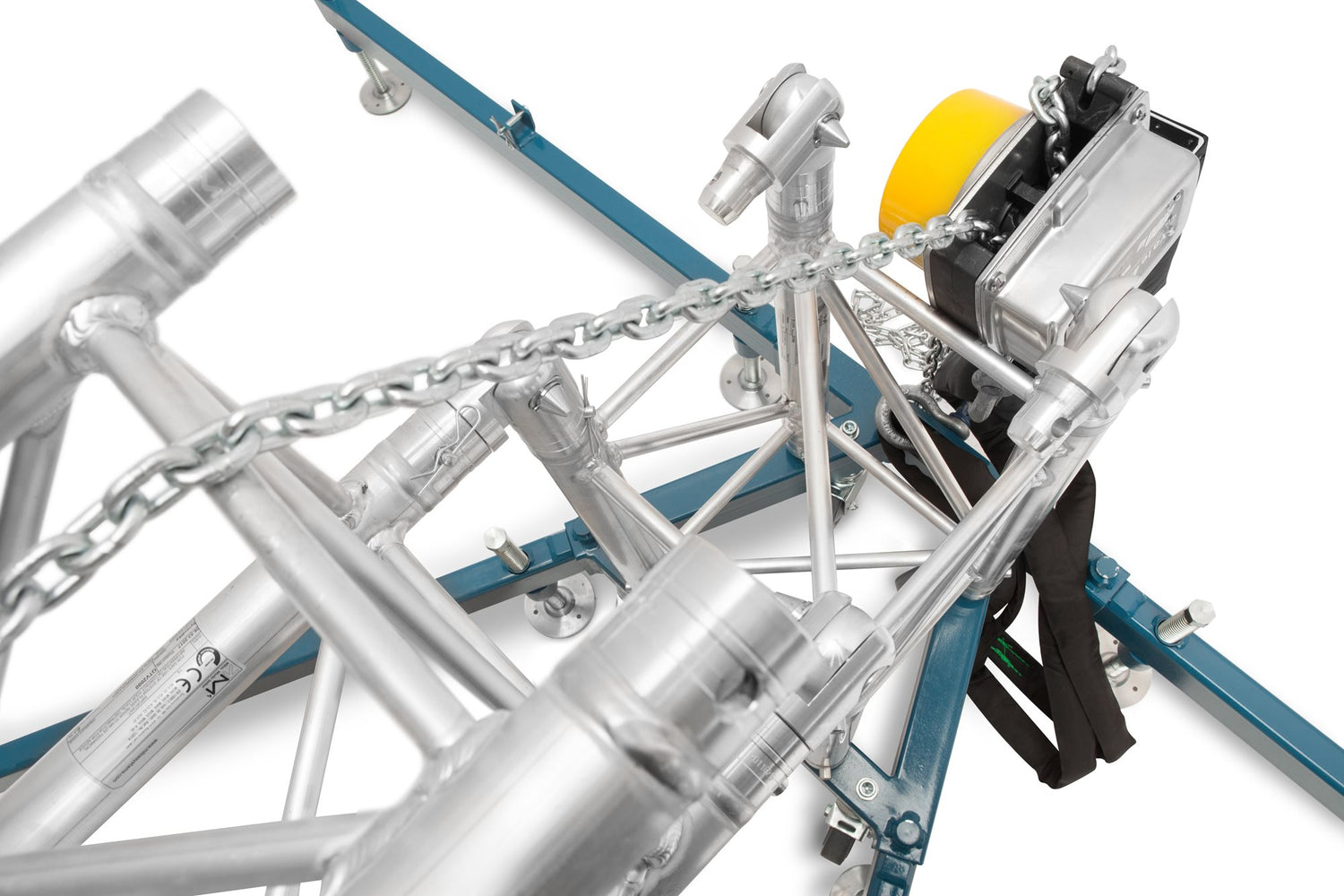

- Lifting operations with either electrical or manual

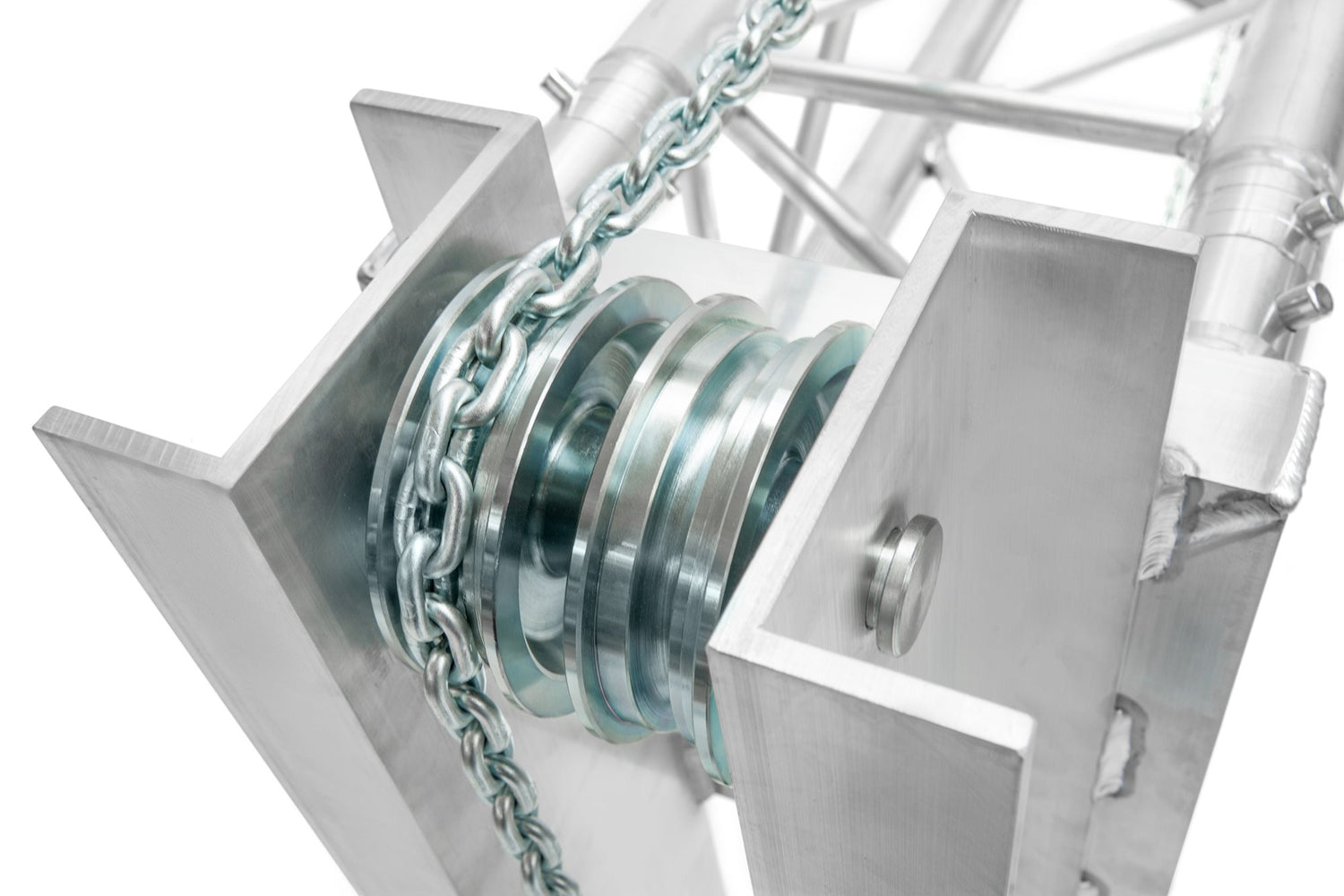

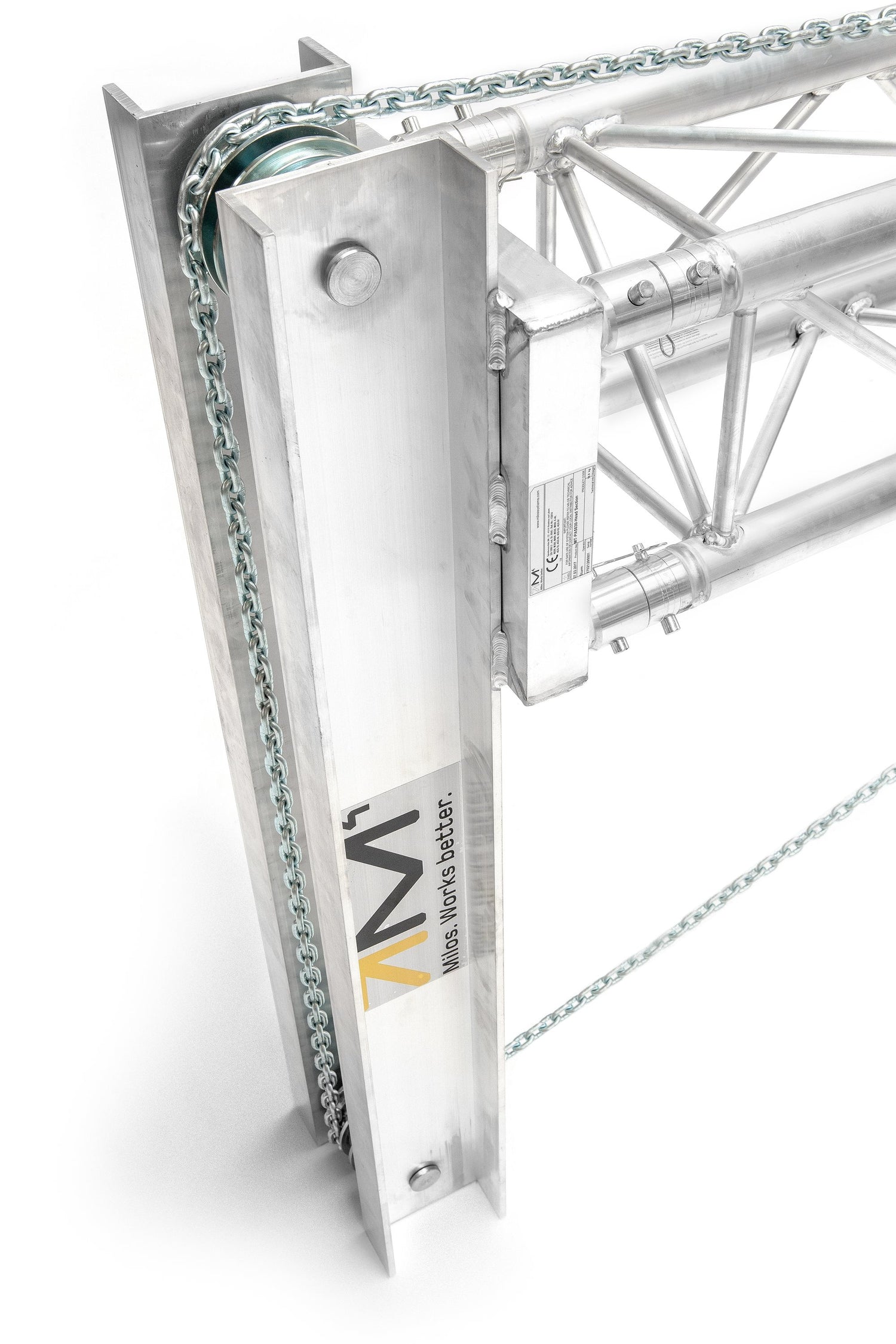

chain hoists - Head block equipped with double pulley system for attachment of safety chain or safety wire parallel to lifting chain.

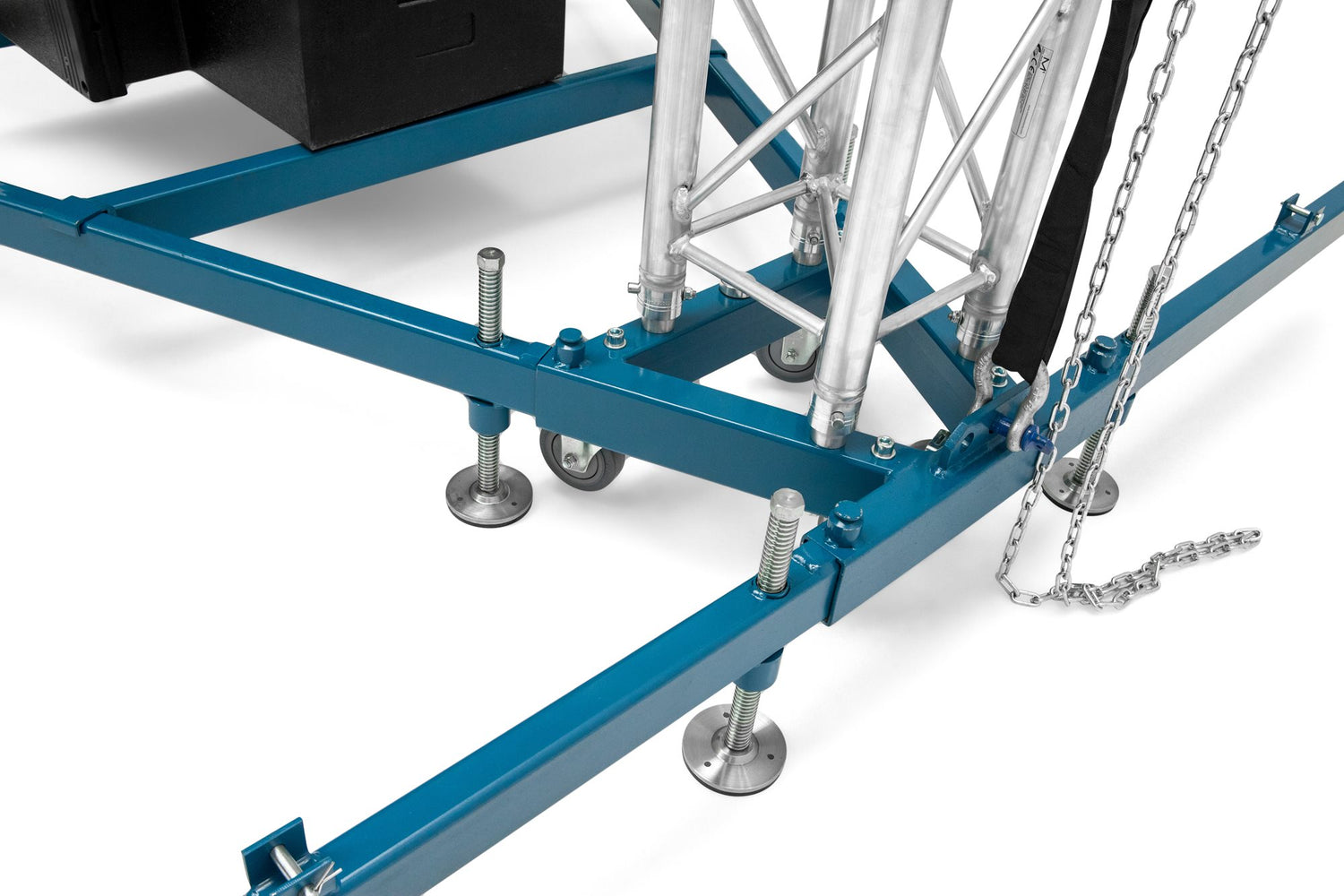

- Multiple attachment points on base for connection of hoists and safeties
Specifications
Specifications
-
Length (m)
-
Width (m)
-
Height (m)
