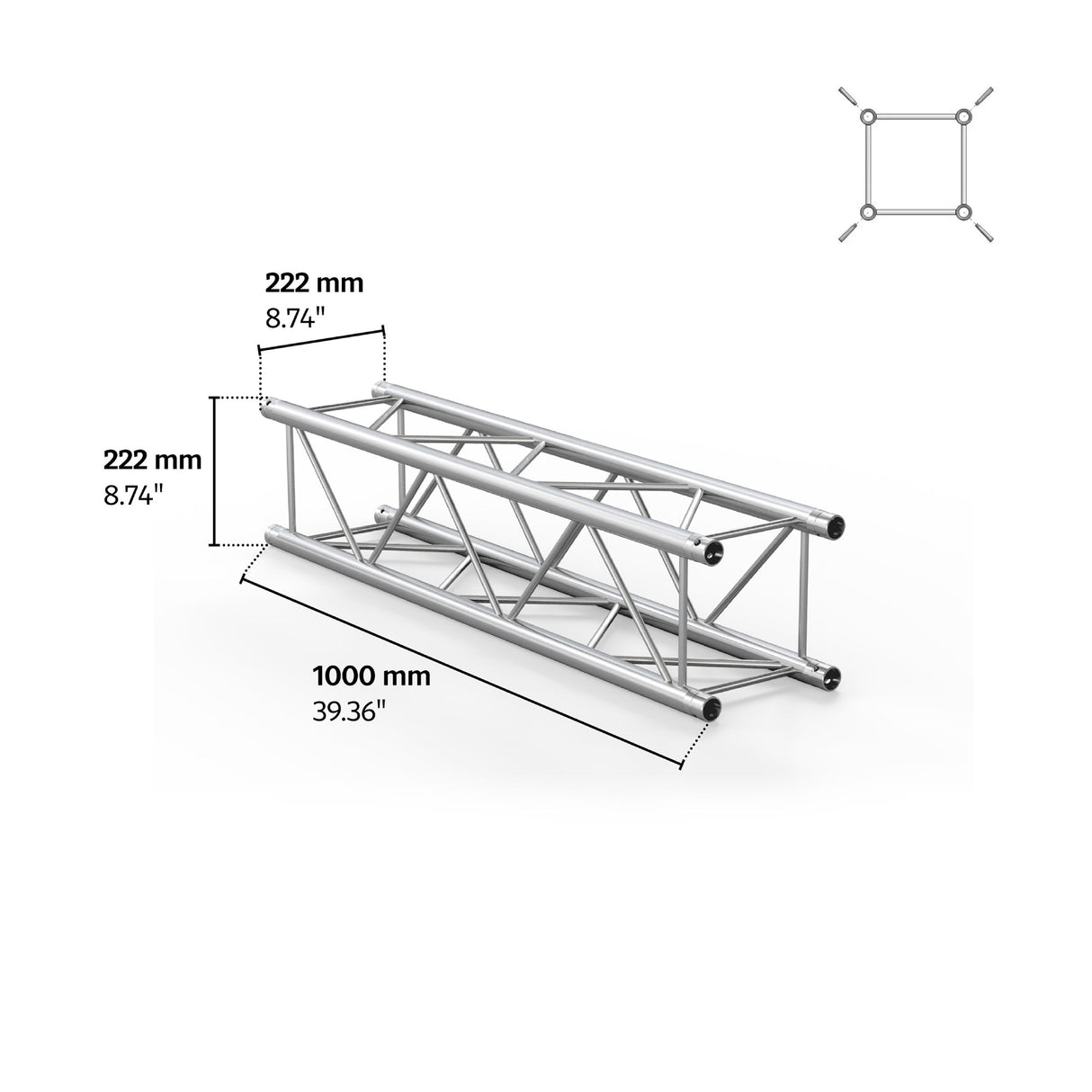

M222 Quatro 3.28 ft Aluminum Truss
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us
The M222 Quatro 3.28 ft Length Truss is a versatile and robust component of the M222 system, offering exceptional weight-loading capabilities in a compact, lightweight design. With a length of 3.28 ft, this truss is perfect for retail displays, trade show booths, and decorative applications where a balance of strength and portability is essential. Its small size makes it an excellent choice for tight spaces or as a modular piece in larger setups, while still delivering the durability and performance needed for professional results.
Assembly is quick and straightforward with the included connection kit and fast connection system, ensuring secure setups without the need for additional tools. This truss is fully compatible with the cell 130 series and Xtruss accessories, allowing for seamless integration into existing systems and endless customization options. Its impressive free-span characteristics mean it can span distances without additional support, making it ideal for open, creative designs. A powder coat finish is available as an option for added durability and style.
Whether you’re building a sleek display or a standout booth, the M222 Quatro 3.28 ft Length Truss combines performance, ease of use, and aesthetic appeal in one compact solution.
Key Benefits
- 3.28 ft Length: Ideal for a wide range of applications, from small displays to larger setups.
- Lightweight & Strong: Easy to transport and handle while offering outstanding weight-loading capabilities.
- Quick Assembly: Fast connection system and included connection kit for secure, hassle-free setups.
- Modular Flexibility: Compatible with M222 components, cell 130 series, and Xtruss accessories.
- Impressive Span: Covers distances without extra support.
- Optional Powder Coat Finish: Available for enhanced durability and a polished look.

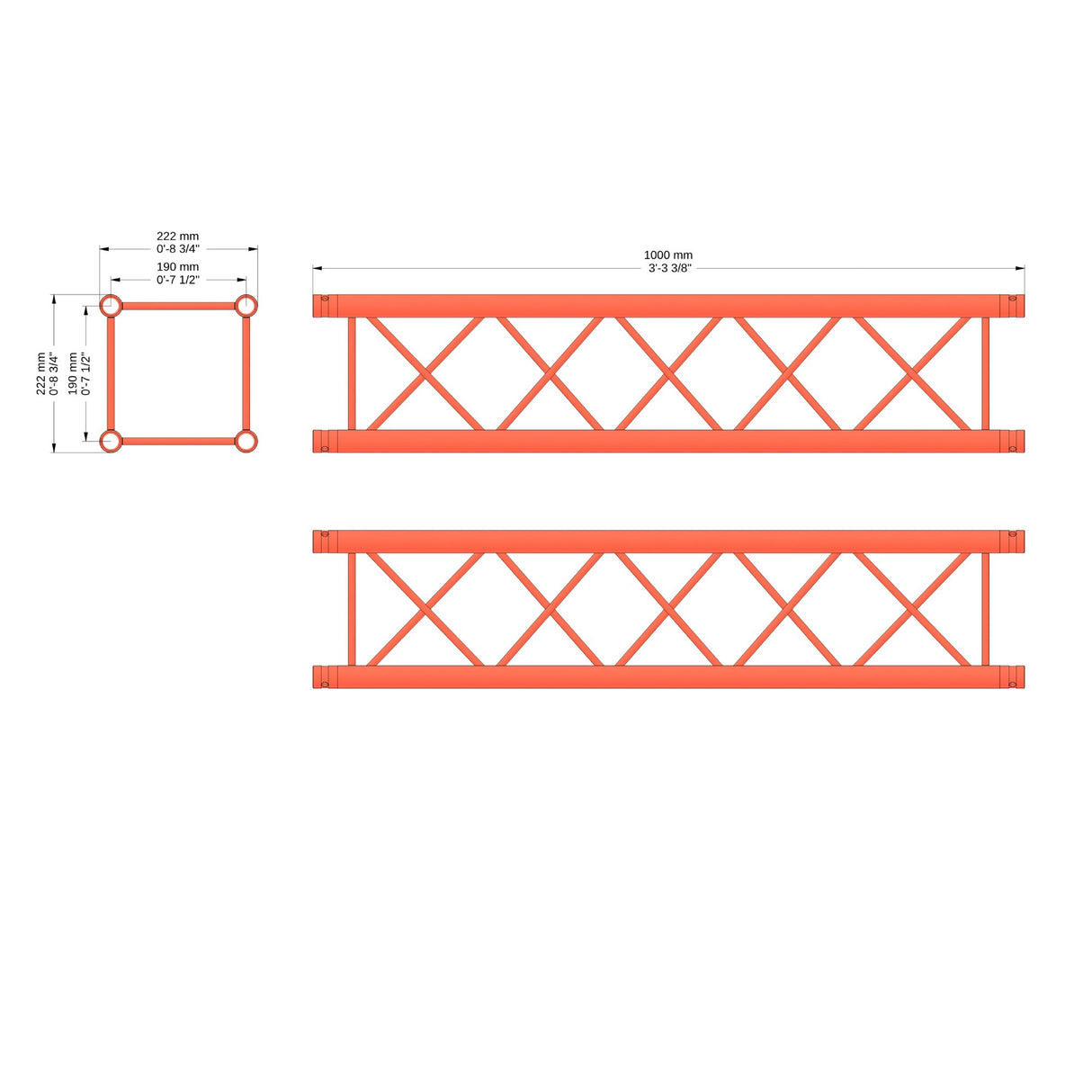

Specifications
Specifications
-
Truss type
-
Coupler
-
Alloy
-
Span
-
Size
-
Braces
-
Main Tube
-
Length (ft)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The M222 Quatro 3.28 ft Length Truss is a versatile and robust component of the M222 system, offering exceptional weight-loading capabilities in a compact, lightweight design. With a length of 3.28 ft, this truss is perfect for retail displays, trade show booths, and decorative applications where a balance of strength and portability is essential. Its small size makes it an excellent choice for tight spaces or as a modular piece in larger setups, while still delivering the durability and performance needed for professional results.
Assembly is quick and straightforward with the included connection kit and fast connection system, ensuring secure setups without the need for additional tools. This truss is fully compatible with the cell 130 series and Xtruss accessories, allowing for seamless integration into existing systems and endless customization options. Its impressive free-span characteristics mean it can span distances without additional support, making it ideal for open, creative designs. A powder coat finish is available as an option for added durability and style.
Whether you’re building a sleek display or a standout booth, the M222 Quatro 3.28 ft Length Truss combines performance, ease of use, and aesthetic appeal in one compact solution.
Key Benefits
- 3.28 ft Length: Ideal for a wide range of applications, from small displays to larger setups.
- Lightweight & Strong: Easy to transport and handle while offering outstanding weight-loading capabilities.
- Quick Assembly: Fast connection system and included connection kit for secure, hassle-free setups.
- Modular Flexibility: Compatible with M222 components, cell 130 series, and Xtruss accessories.
- Impressive Span: Covers distances without extra support.
- Optional Powder Coat Finish: Available for enhanced durability and a polished look.

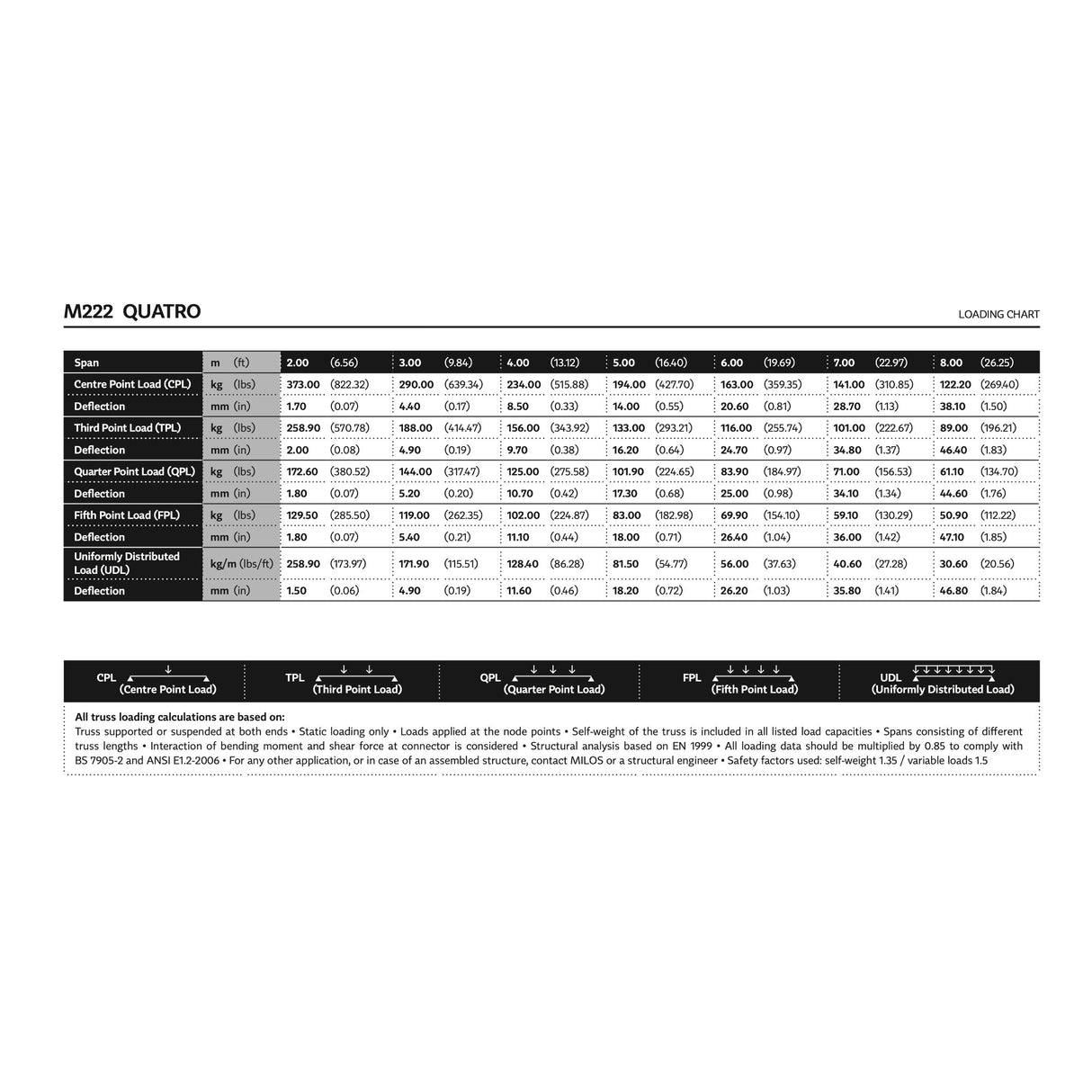

M222 Quatro Loading Chart
| Span | Unit | 6.56 ft (2.00 m) |
9.84 ft (3.00 m) |
13.12 ft (4.00 m) |
16.40 ft (5.00 m) |
19.69 ft (6.00 m) |
22.97 ft (7.00 m) |
26.25 ft (8.00 m) |
|---|---|---|---|---|---|---|---|---|
| Centre Point Load (CPL) | lbs (kg) | 822.32 (373.00) |
639.34 (290.00) |
515.88 (234.00) |
427.70 (194.00) |
359.35 (163.00) |
310.85 (141.00) |
269.40 (122.20) |
| Deflection | in (mm) | 0.07 (1.70) |
0.17 (4.40) |
0.33 (8.50) |
0.55 (14.00) |
0.81 (20.60) |
1.13 (28.70) |
1.50 (38.10) |
| Third Point Load (TPL) | lbs (kg) | 570.78 (258.90) |
414.47 (188.00) |
343.92 (156.00) |
293.21 (133.00) |
255.74 (116.00) |
222.67 (101.00) |
196.21 (89.00) |
| Deflection | in (mm) | 0.08 (2.00) |
0.19 (4.90) |
0.38 (9.70) |
0.64 (16.20) |
0.97 (24.70) |
1.37 (34.80) |
1.83 (46.40) |
| Quarter Point Load (QPL) | lbs (kg) | 380.52 (172.60) |
317.47 (144.00) |
275.58 (125.00) |
224.65 (101.90) |
184.97 (83.90) |
156.53 (71.00) |
134.70 (61.10) |
| Deflection | in (mm) | 0.07 (1.80) |
0.20 (5.20) |
0.42 (10.70) |
0.68 (17.30) |
0.98 (25.00) |
1.34 (34.10) |
1.76 (44.60) |
| Fifth Point Load (FPL) | lbs (kg) | 285.50 (129.50) |
262.35 (119.00) |
224.87 (102.00) |
182.98 (83.00) |
154.10 (69.90) |
130.29 (59.10) |
112.22 (50.90) |
| Deflection | in (mm) | 0.07 (1.80) |
0.21 (5.40) |
0.44 (11.10) |
0.71 (18.00) |
1.04 (26.40) |
1.42 (36.00) |
1.85 (47.10) |
| Uniformly Distributed Load (UDL) | lbs/ft (kg/m) | 173.97 (258.90) |
115.51 (171.90) |
86.28 (128.40) |
54.77 (81.50) |
37.63 (56.00) |
27.28 (40.60) |
20.56 (30.60) |
| Deflection | in (mm) | 0.06 (1.50) |
0.19 (4.90) |
0.46 (11.60) |
0.72 (18.20) |
1.03 (26.20) |
1.41 (35.80) |
1.84 (46.80) |
All truss loading calculations are based on:
