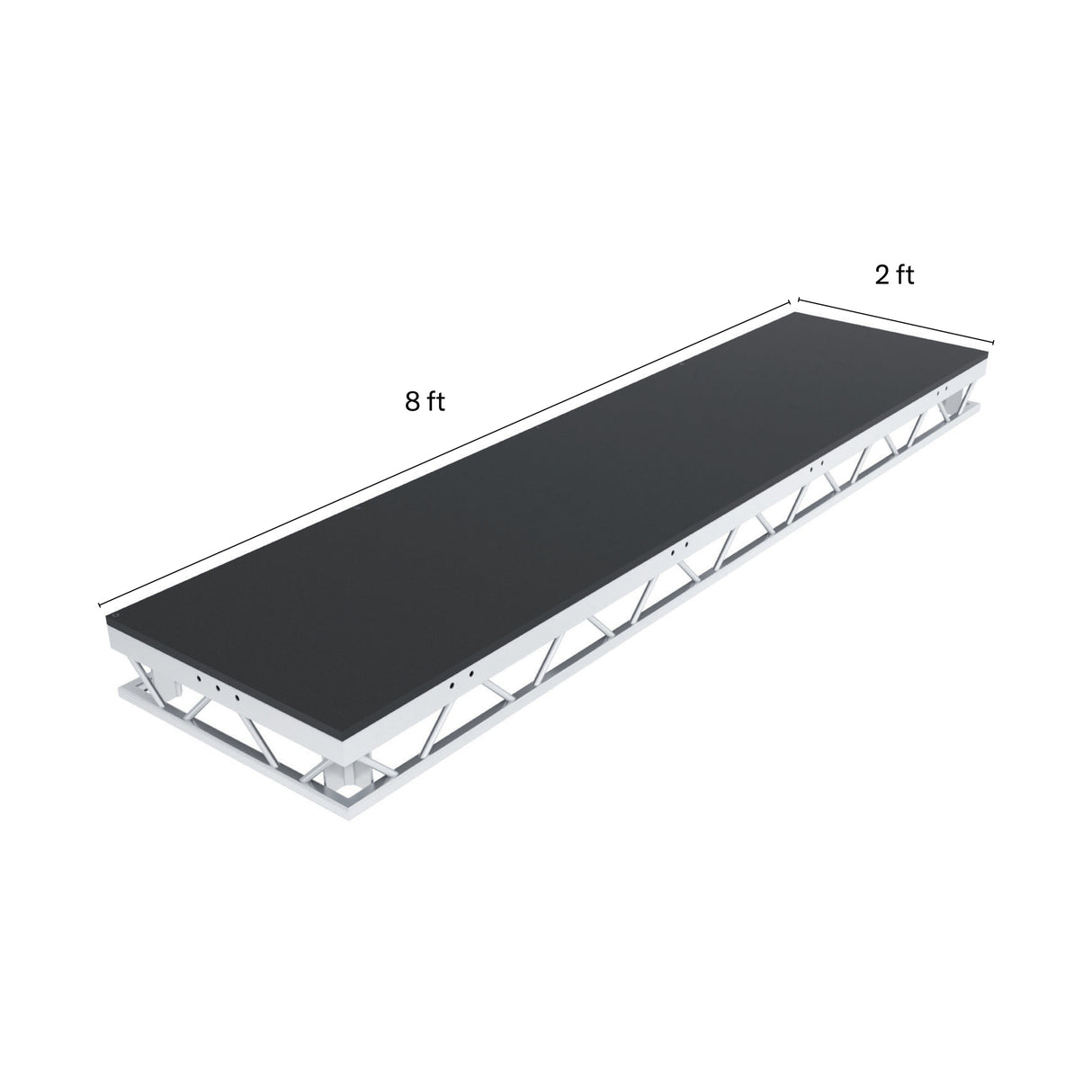

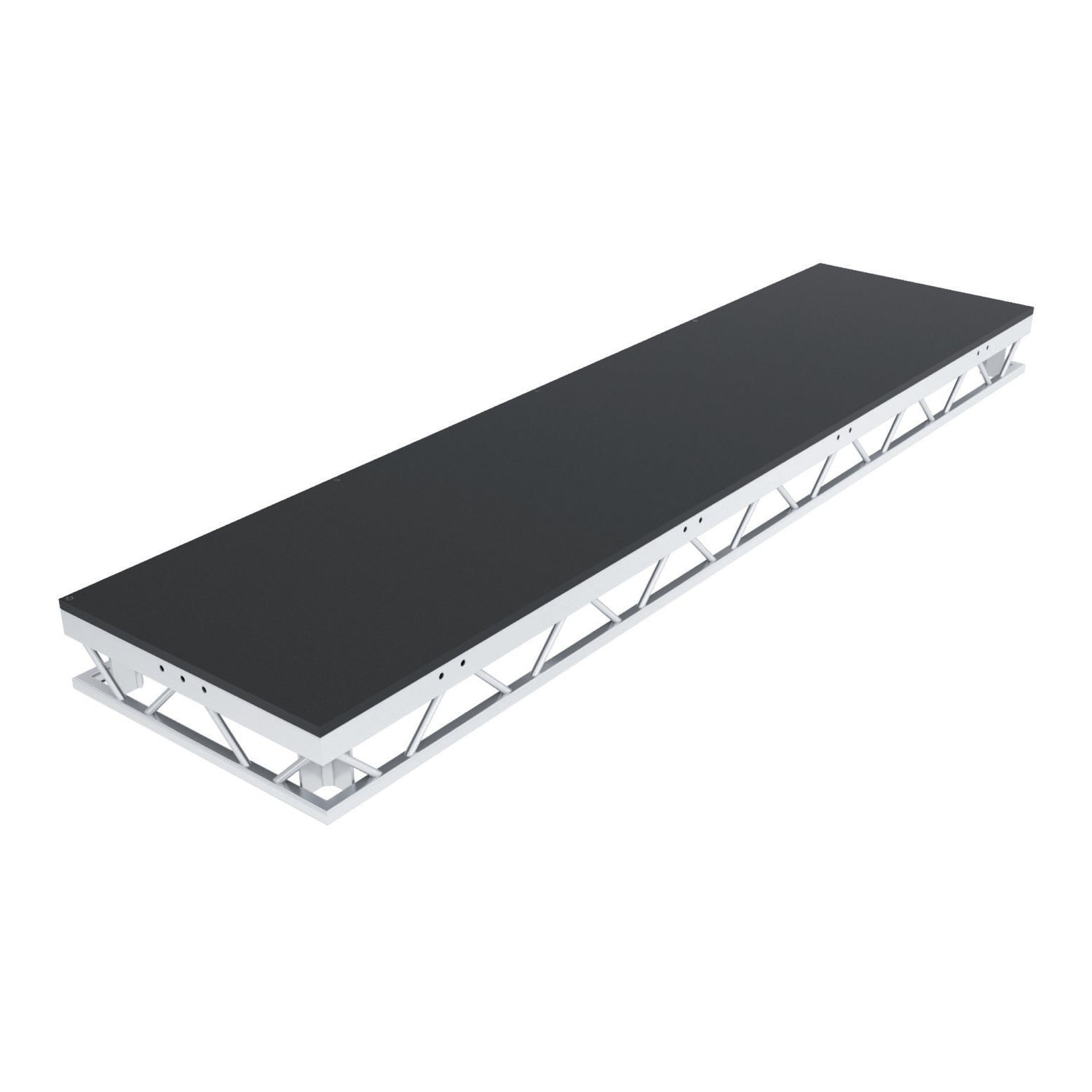

TC TDB8X2 - Stage Deck 8' x 2'

The TC TDB8X2 is a slender rectangular stage deck in the TOMCAT DEX system, ideal for creating extended walkways, narrow platforms, or linear stage extensions in concerts, fashion shows, and event setups. This lightweight modular piece integrates effortlessly with other DEX components, delivering professional-grade strength in a streamlined design that's simple to handle and configure.

Key Specifications

• Dimensions: 8' x 2' (2.44 m x 0.61 m)
• Height Options: Adjustable from 8" to 48" (200 mm to 1220 mm) with compatible legs - sold separately
• Load Capacity: Maximum uniform distributed load (UDL) of 122 lbs per square foot (600 kg/m²)
• Deck Surface: Matte black painted 11/16" (18 mm) thick plywood for a smooth, non-slip walking area
• Weight: 64 lbs (29 kg) – lightweight for easy transport and quick assembly
• Storage Height: Compact 6.85" (174 mm) when stacked
• Connections: Simple nut-and-bolt system for deck-to-deck and accessory links, with multiple holes for compatibility with other industry systems

Key Features

• Robust Aluminum Frame: Welded truss design ensures reliable load support across its elongated shape, perfect for stable, narrow configurations.
• User-Friendly Surface: The plywood top is easily replaceable, repairable, or repainted on-site, promoting durability and low maintenance. Optional finishes like clear acrylic or aluminum grating available for varied uses.
• Versatile Leg Pockets: Four integrated pockets at each corner accept up to 2" (51 mm) outside diameter round legs, with compatibility for common sizes like 1½" schedule 40 pipe – allowing seamless mixing with your current equipment.
• Modular Connectivity: Cost-effective bolted connections enable rapid setup, while extra hardware holes support connections to non-DEX systems for enhanced versatility.
• Safety and Durability: Engineered for even load distribution in professional settings, this deck handles elevated heights up to 48" with confidence in a portable form.
