Product Detail

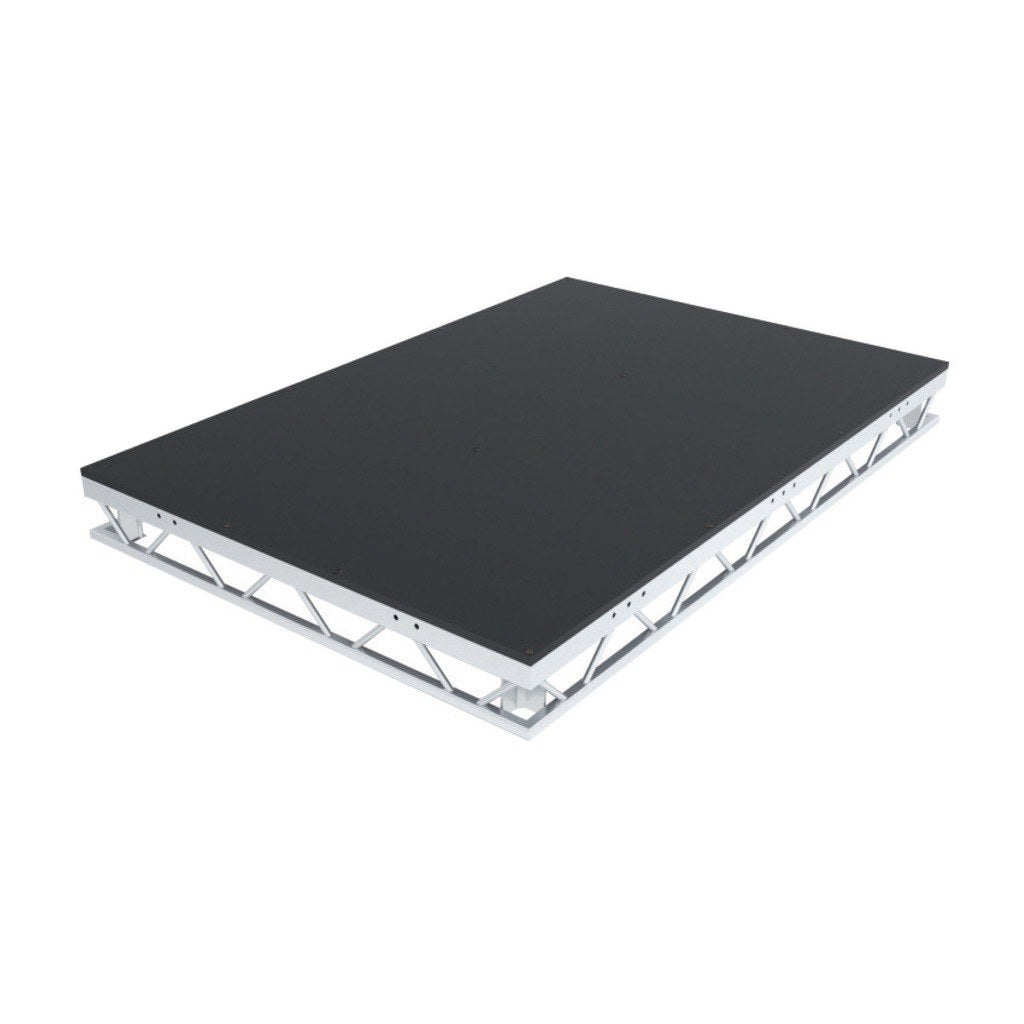

The TC TDB6X4 is a mid-sized rectangular stage deck in the TOMCAT DEX system, offering a balanced footprint for building versatile platforms, risers, or stage sections in events, performances, and temporary setups. This lightweight modular deck combines the robustness of our larger models with easier handling, integrating smoothly into any DEX configuration for professional results.

Key Specifications

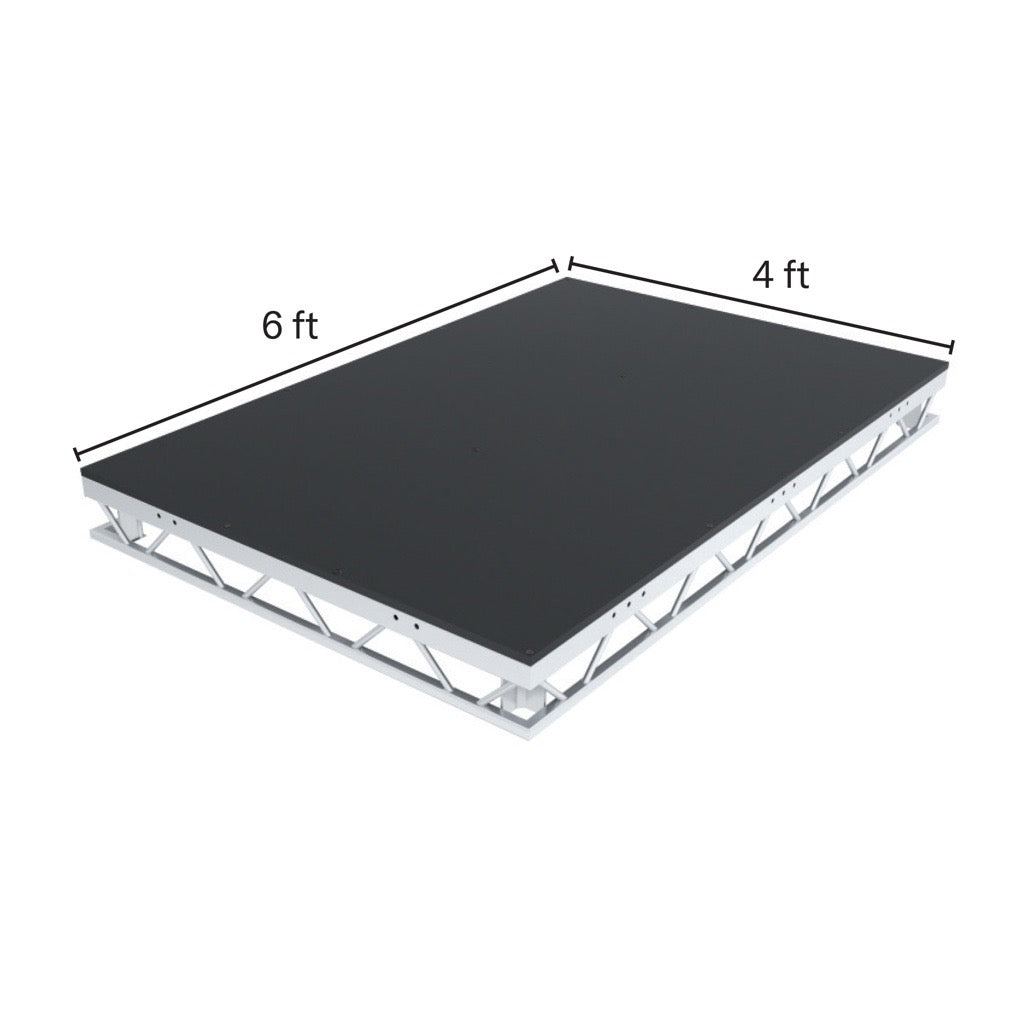

• Dimensions: 6' x 4' (1.83 m x 1.22 m)
• Height Options: Adjustable from 8" to 48" (200 mm to 1220 mm) with compatible legs
• Load Capacity: Maximum uniform distributed load (UDL) of 122 lbs per square foot (600 kg/m²)
• Deck Surface: Matte black painted 11/16" (18 mm) thick plywood for a smooth, non-slip walking area
• Weight: 72 lbs (33 kg) – lightweight design for straightforward transport and assembly
• Storage Height: Compact 6.85" (174 mm) when stacked
• Connections: Simple nut-and-bolt system for deck-to-deck and accessory links, with multiple holes for compatibility with other industry systems

Key Features

• Robust Aluminum Frame: Welded truss design provides dependable strength and load support in a practical mid-size format, suited for efficient stage layouts.
• User-Friendly Surface: The plywood top is easily replaceable, repairable, or repainted on-site, ensuring ongoing reliability. Optional finishes like clear acrylic or aluminum grating available for tailored applications.
• Versatile Leg Pockets: Four integrated pockets at each corner accept up to 2" (51 mm) outside diameter round legs, with compatibility for common sizes like 1½" schedule 40 pipe – ideal for blending with your existing inventory.
• Modular Connectivity: Cost-effective bolted connections facilitate speedy setup, while extra hardware holes allow connections to non-DEX systems for greater adaptability.
• Safety and Durability: Designed for uniform load handling in professional scenarios, supporting raised heights up to 48" in a portable, user-friendly build.
