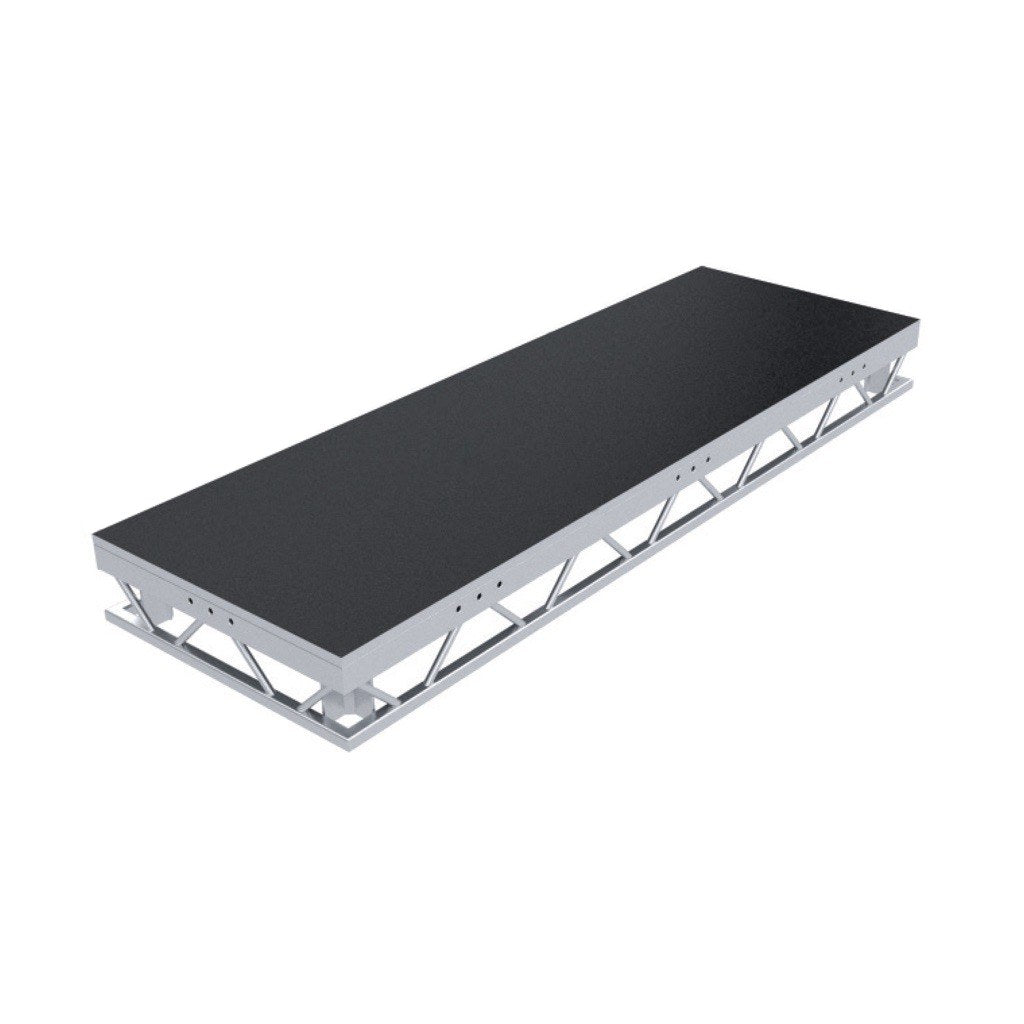

The TC TDB6X2 is a narrow rectangular stage deck in the TOMCAT DEX system, suited for constructing pathways, low-profile risers, or compact extensions in stage designs for events, exhibitions, and performances. This lightweight modular element offers reliable support in tight spaces, blending easily with other DEX decks for customized, efficient setups.
Key Specifications

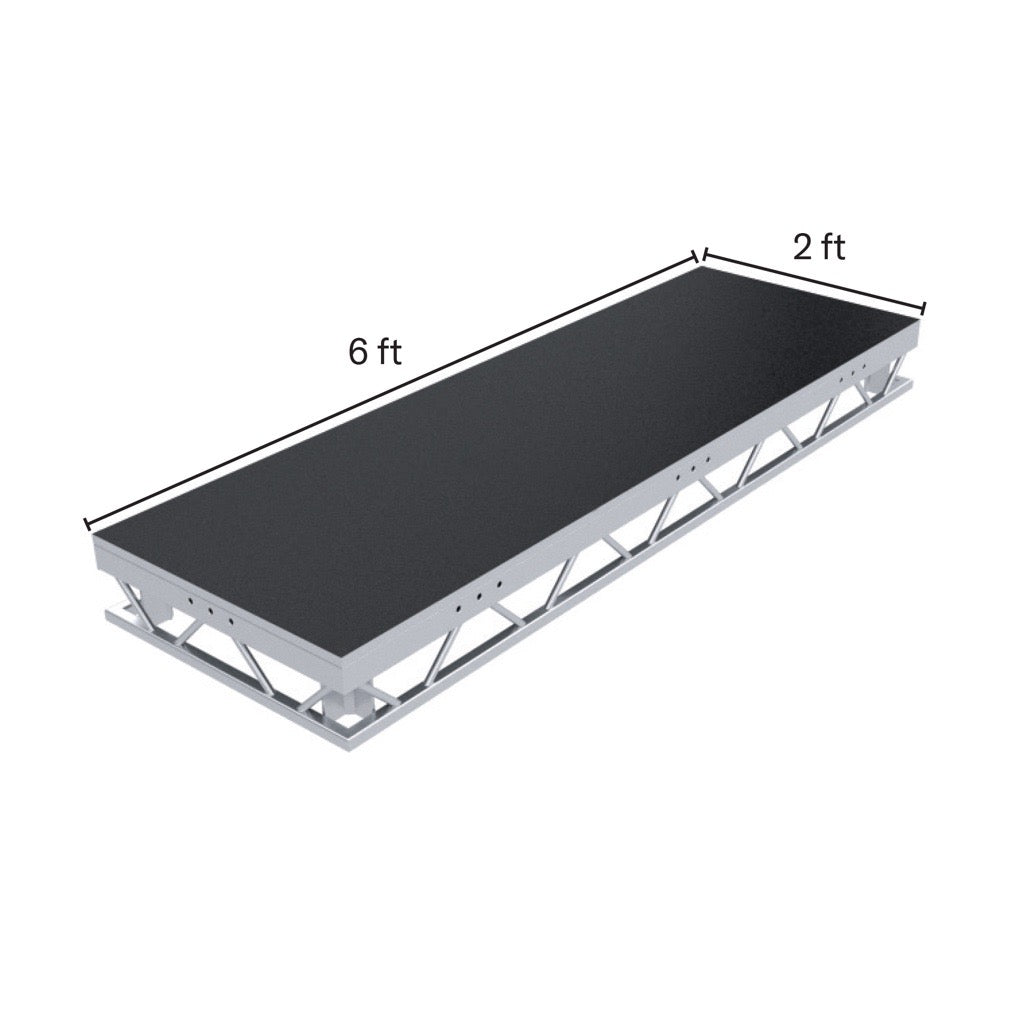

- Dimensions: 6' x 2' (1.83 m x 0.61 m)
- Height Options: Adjustable from 8" to 48" (200 mm to 1220 mm) with compatible legs - sold separately
- Load Capacity: Maximum uniform distributed load (UDL) of 122 lbs per square foot (600 kg/m²)

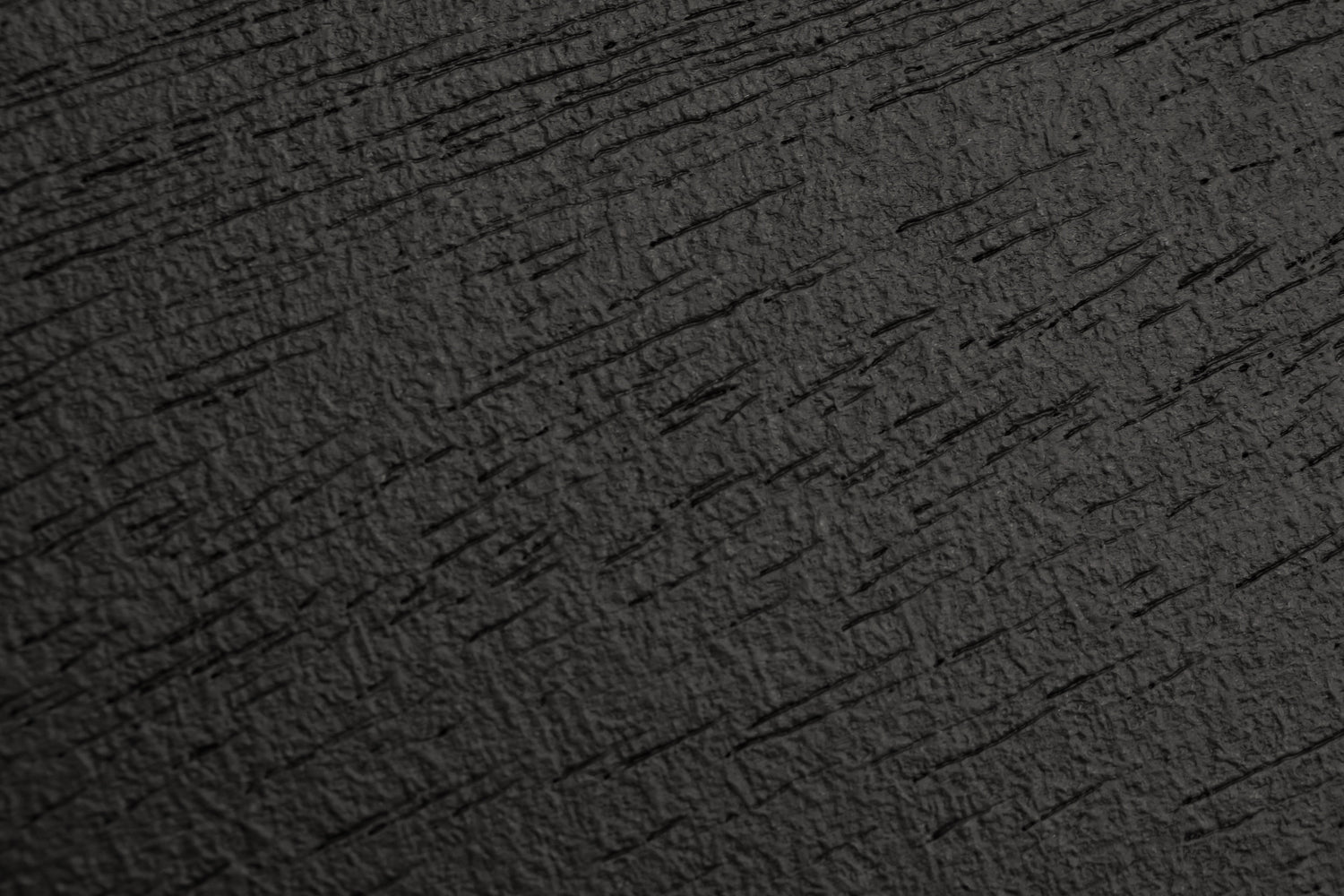

- Deck Surface: Matte black painted 11/16" (18 mm) thick plywood for a smooth, non-slip walking area
- Weight: 49 lbs (22 kg) – highly portable for fast handling and installation

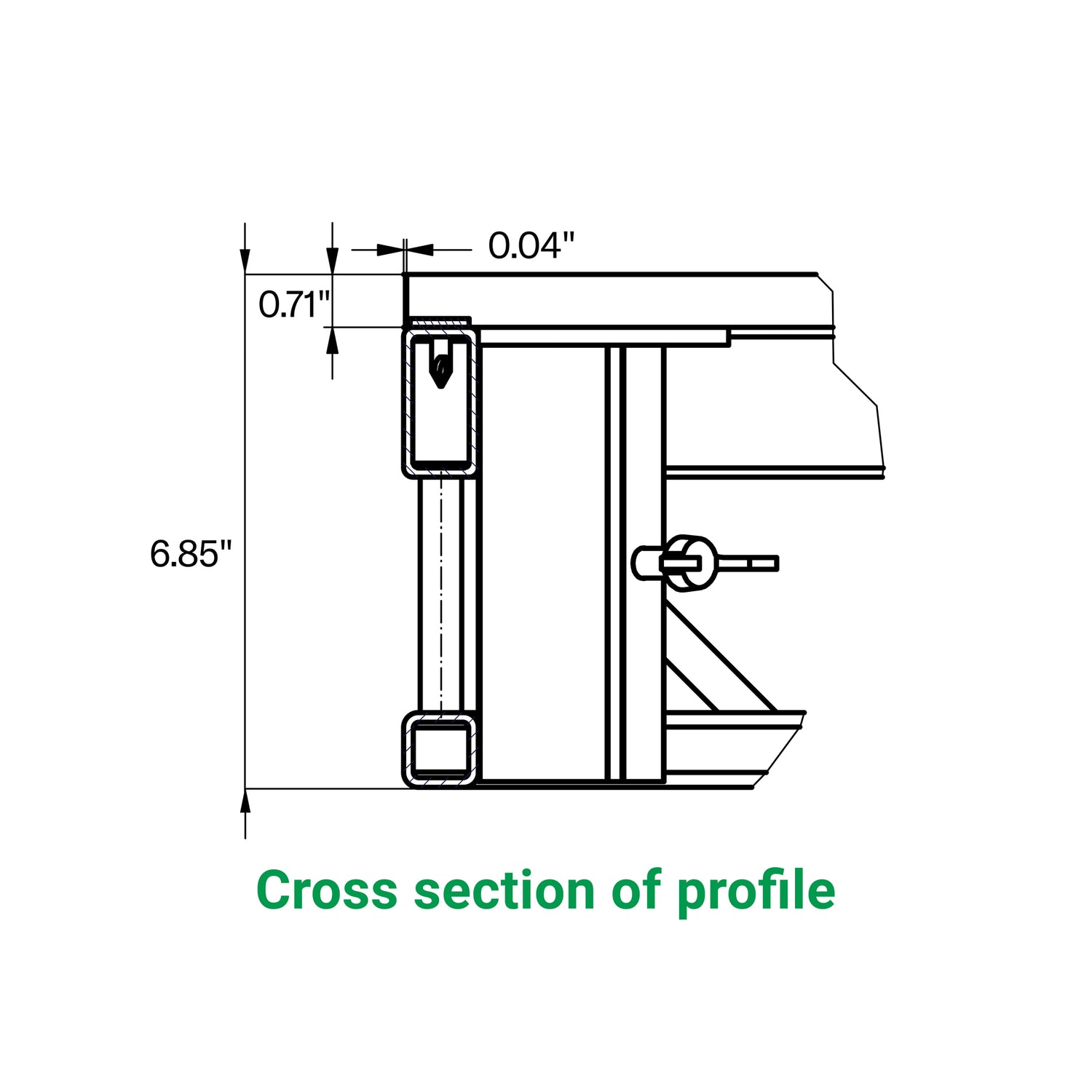

- Storage Height: Compact 6.85" (174 mm) when stacked

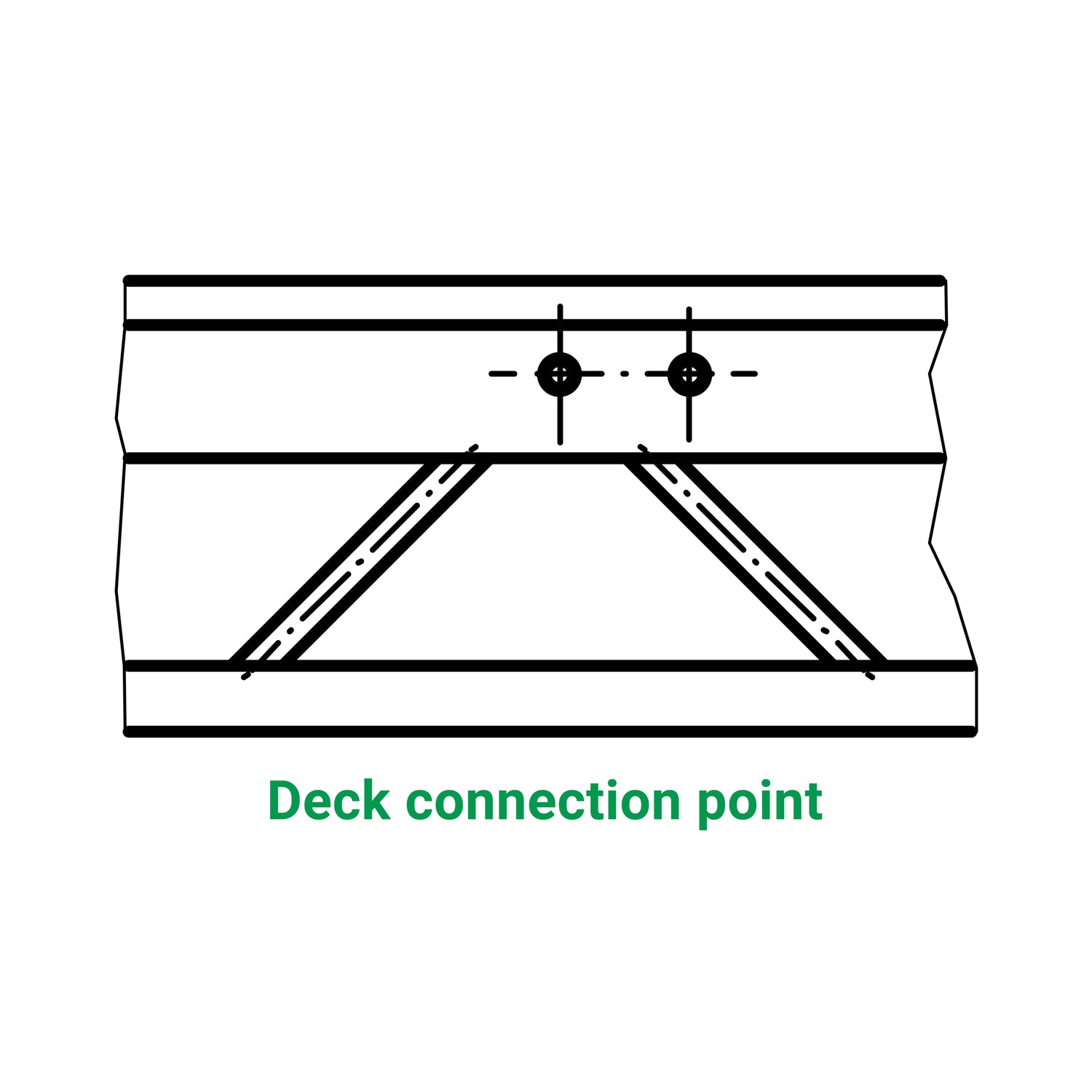

- Connections: Simple nut-and-bolt system for deck-to-deck and accessory links, with multiple holes for compatibility with other industry systems
Key Features

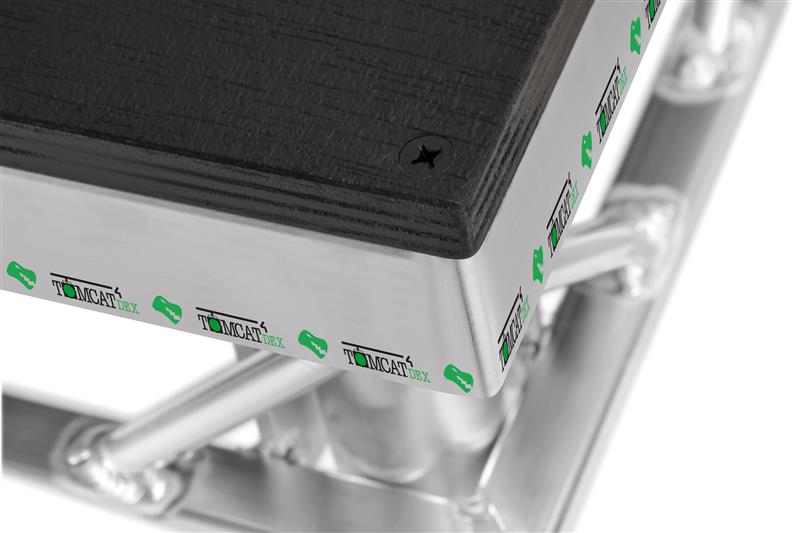

- Robust Aluminum Frame: Welded truss design guarantees solid load-bearing in an elongated, slim profile, ideal for streamlined configurations.
- User-Friendly Surface: The plywood top is easily replaceable, repairable, or repainted on-site, for sustained performance. Optional finishes like clear acrylic or aluminum grating available for specific requirements.

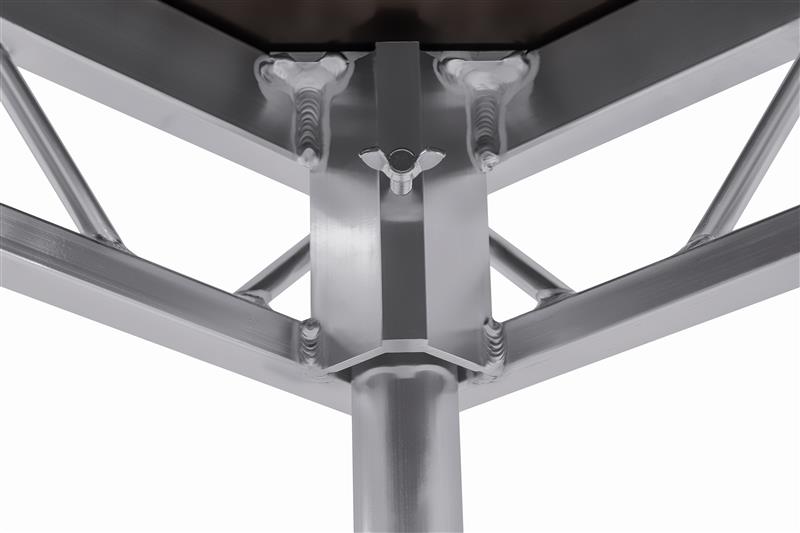

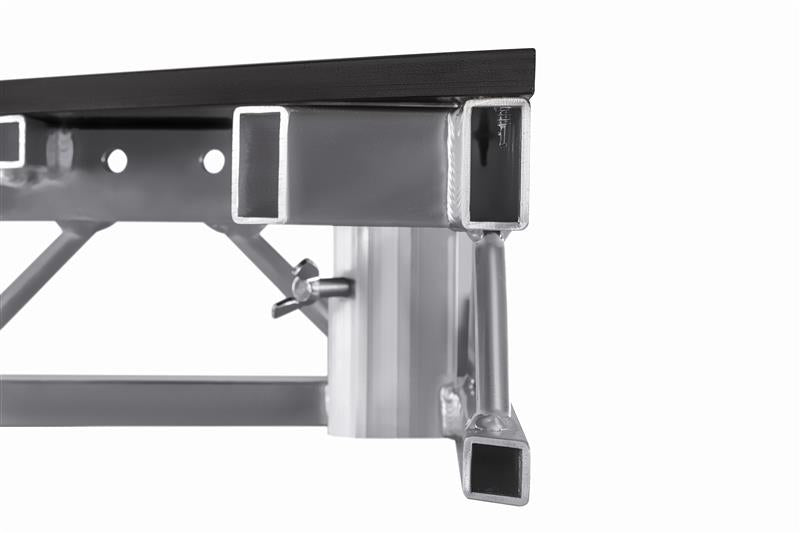

- Versatile Leg Pockets: Four integrated pockets at each corner accept up to 2" (51 mm) outside diameter round legs, with compatibility for common sizes like 1½" schedule 40 pipe – enabling easy integration with your gear.
- Modular Connectivity: Cost-effective bolted connections support swift assembly, while extra hardware holes permit linking to non-DEX systems for added options.
- Safety and Durability: Crafted for balanced load distribution in professional applications, this deck manages heights up to 48" in a lightweight, practical format.
Specifications
Specifications
-
UDL (lbs/sq. foot)
-
UDL (kg/m2)
-
Storage height (in)
-
Storage height (mm)
-
Surface Material
