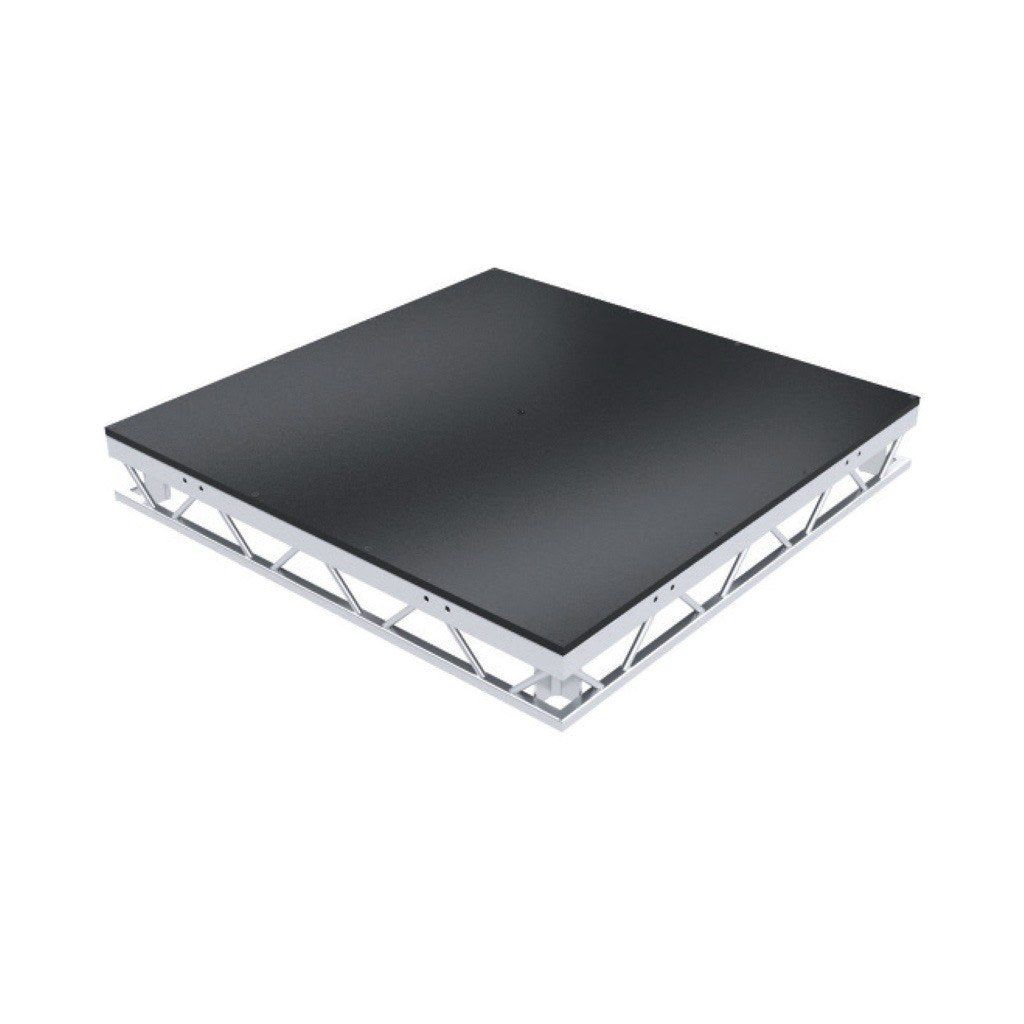

The TC TDB4X4 is a square stage deck in the TOMCAT DEX system, providing a stable, compact platform for risers, podiums, or central stage elements in conferences, performances, and event productions. This lightweight modular deck offers square versatility for balanced designs, integrating reliably with other DEX pieces for straightforward, professional staging.

Key Specifications

• Dimensions: 4' x 4' (1.22 m x 1.22 m)
• Height Options: Adjustable from 8" to 48" (200 mm to 1220 mm) with compatible legs - sold separately
• Load Capacity: Maximum uniform distributed load (UDL) of 122 lbs per square foot (600 kg/m²)

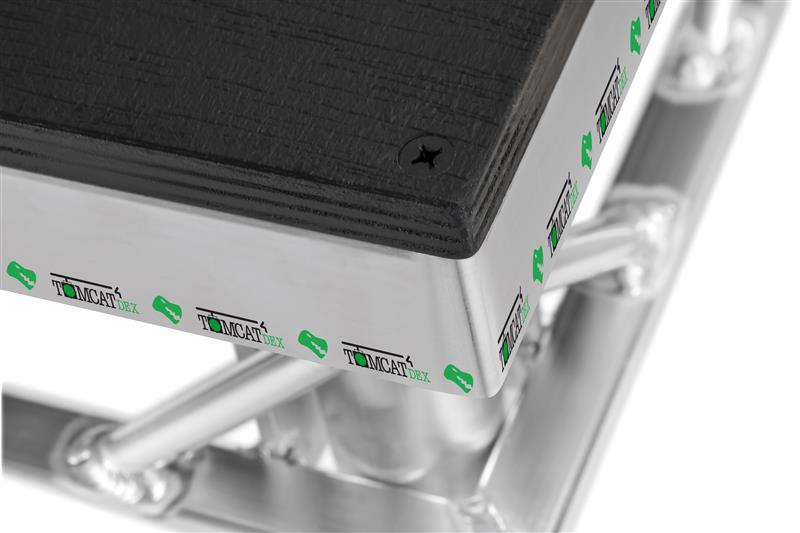

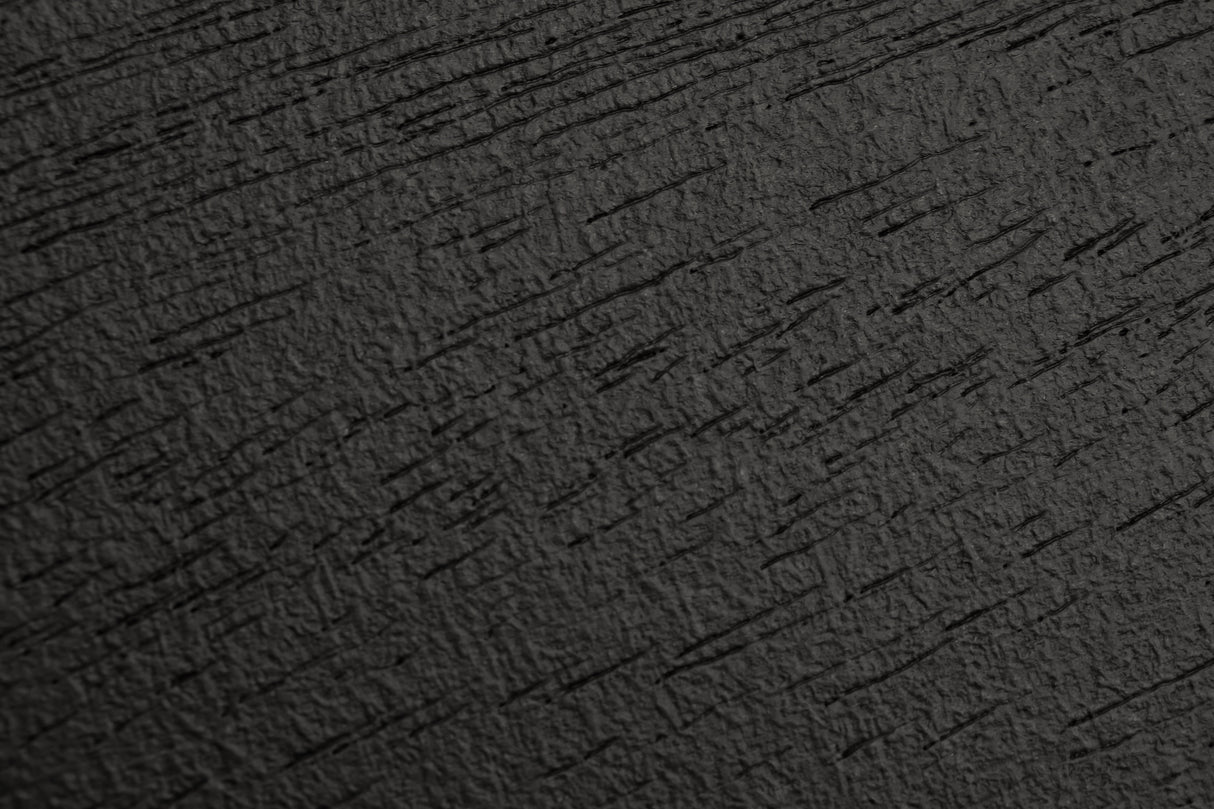

• Deck Surface: Matte black painted 11/16" (18 mm) thick plywood for a smooth, non-slip walking area
• Weight: 59 lbs (27 kg) – lightweight for easy positioning and setup

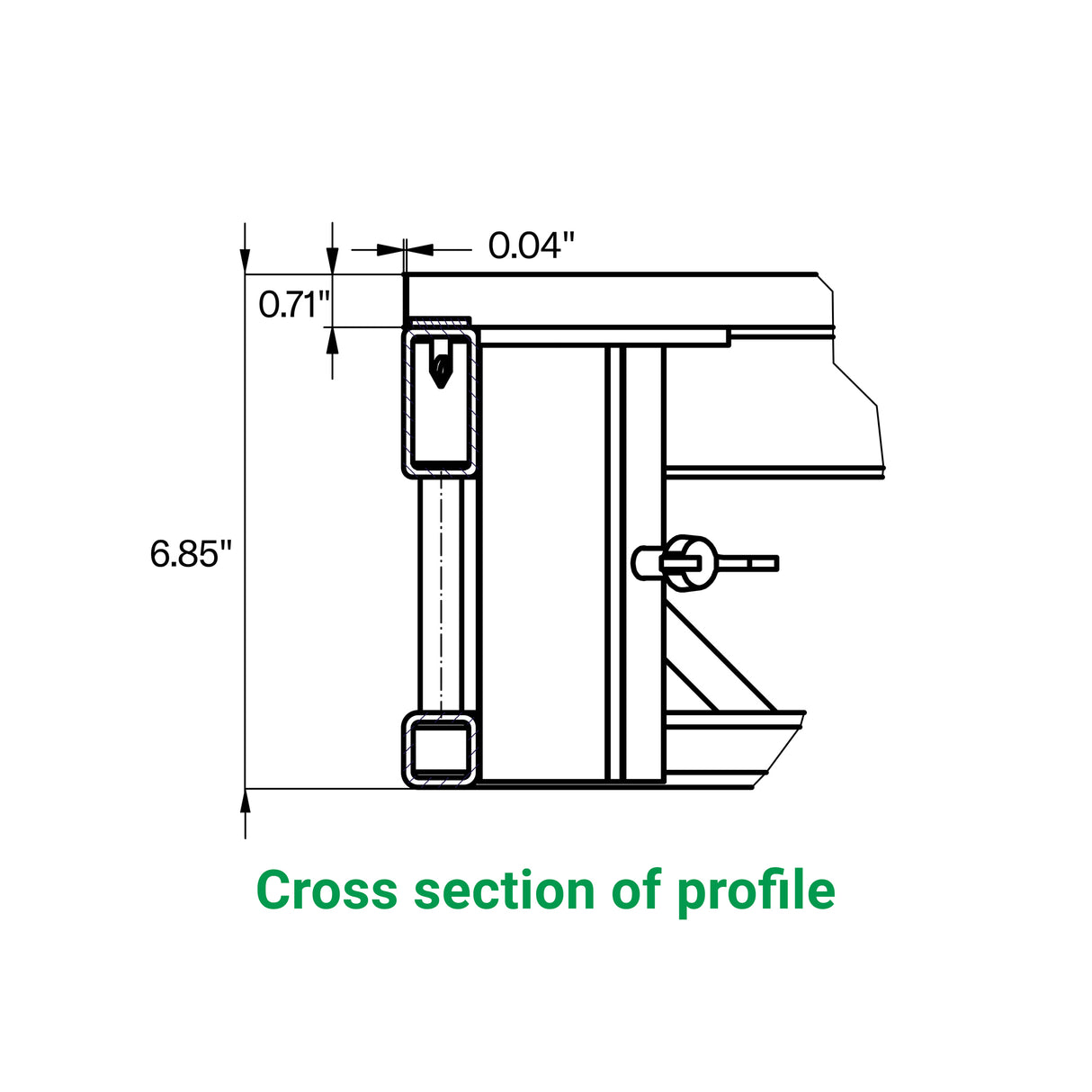

• Storage Height: Compact 6.85" (174 mm) when stacked

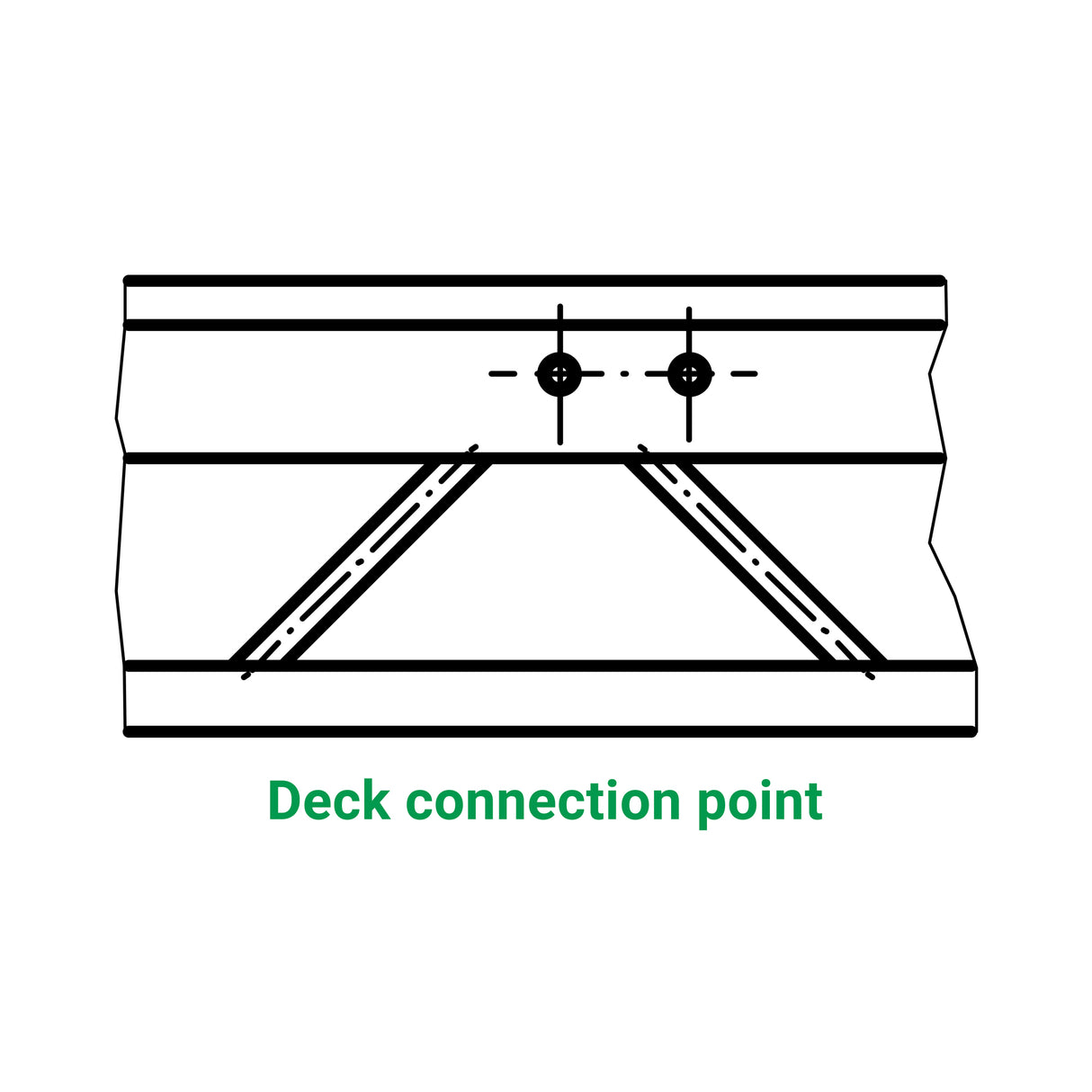

• Connections: Simple nut-and-bolt system for deck-to-deck and accessory links, with multiple holes for compatibility with other industry systems

Key Features

• Robust Aluminum Frame: Welded truss design ensures consistent strength and load support in a square format, fitting well in modular arrangements.
• User-Friendly Surface: The plywood top is easily replaceable, repairable, or repainted on-site, for reliable long-term use. Optional finishes like clear acrylic or aluminum grating available for particular needs.
• Versatile Leg Pockets: Four integrated pockets at each corner accept up to 2" (51 mm) outside diameter round legs, with compatibility for common sizes like 1½" schedule 40 pipe – suitable for combining with your existing setup.
• Modular Connectivity: Cost-effective bolted connections allow efficient assembly, while extra hardware holes enable ties to non-DEX systems for expanded options.
• Safety and Durability: Engineered for even load distribution in professional contexts, handling elevated setups up to 48" in a compact, portable design.
