Product Detail

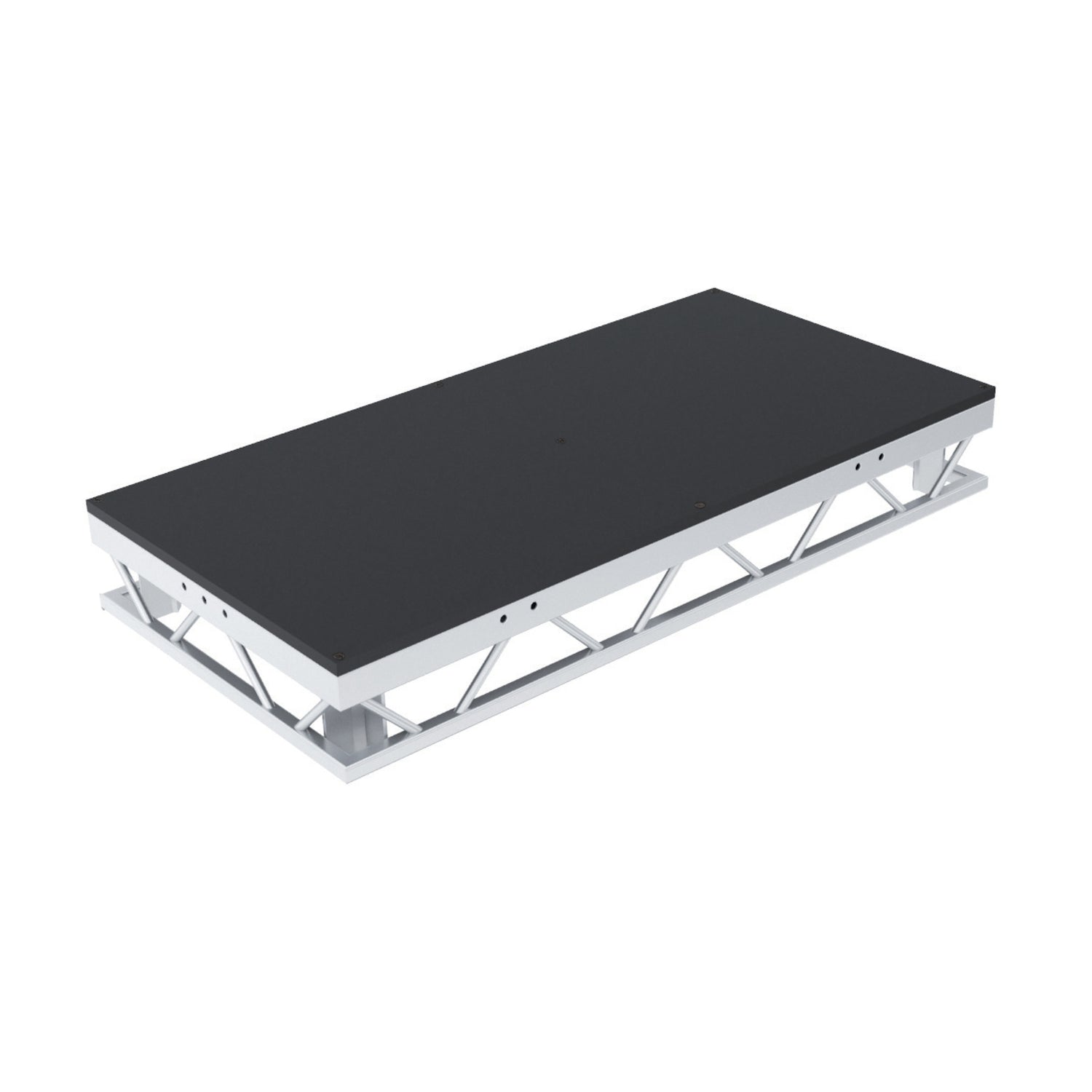

The TC TDB4X2 is a compact rectangular stage deck in the TOMCAT DEX system, perfect for building smaller platforms, extensions, or detailed stage configurations in events, theaters, and installations. This versatile, lightweight component fits seamlessly into modular setups, offering the same robust performance as larger decks while being easy to maneuver and store.

Key Specifications

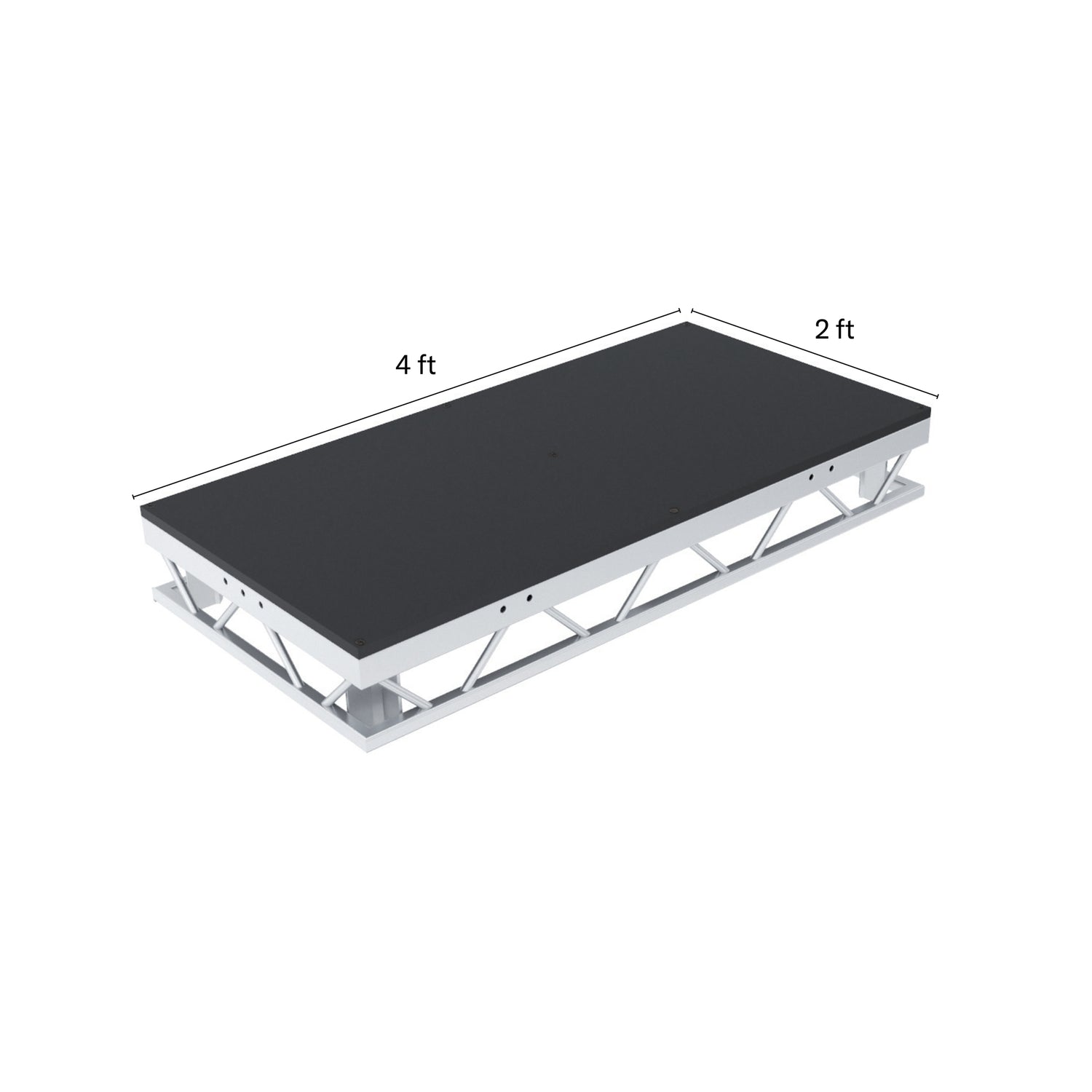

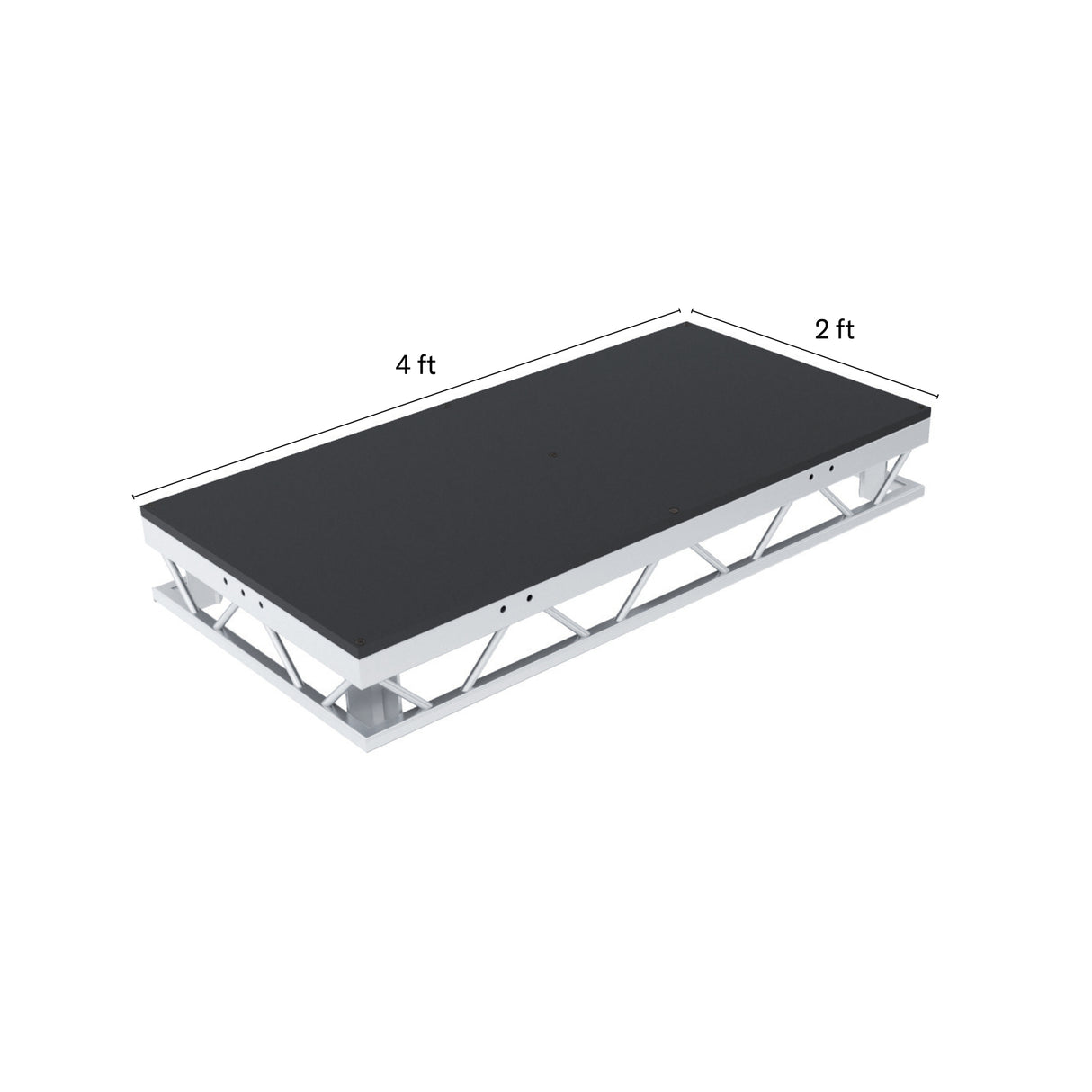

• Dimensions: 4' x 2' (1.22 m x 0.61 m)
• Height Options: Adjustable from 8" to 48" (200 mm to 1220 mm) with compatible legs - sold separately
• Load Capacity: Maximum uniform distributed load (UDL) of 122 lbs per square foot (600 kg/m²)
• Deck Surface: Matte black painted 11/16" (18 mm) thick plywood for a smooth, non-slip walking area
• Weight: 36 lbs (16 kg) – exceptionally light for quick transport and setup
• Storage Height: Compact 6.85" (174 mm) when stacked
• Connections: Simple nut-and-bolt system for deck-to-deck and accessory links, with multiple holes for compatibility with other industry systems

Key Features

• Robust Aluminum Frame: Welded truss design delivers reliable strength and load support in a smaller footprint, ideal for custom layouts.
• User-Friendly Surface: The plywood top is easily replaceable, repairable, or repainted on-site, for reliable long-term use. Optional finishes like clear acrylic or aluminum grating available for particular needs.
• Versatile Leg Pockets: Four integrated pockets at each corner accept up to 2" (51 mm) outside diameter round legs, with compatibility for common sizes like 1½" schedule 40 pipe – suitable for combining with your existing setup.
• Modular Connectivity: Cost-effective bolted connections allow efficient assembly, while extra hardware holes enable ties to non-DEX systems for expanded options.
• Safety and Durability: Engineered for even load distribution in professional contexts, handling elevated setups up to 48" in a compact, portable design.
