Product Detail

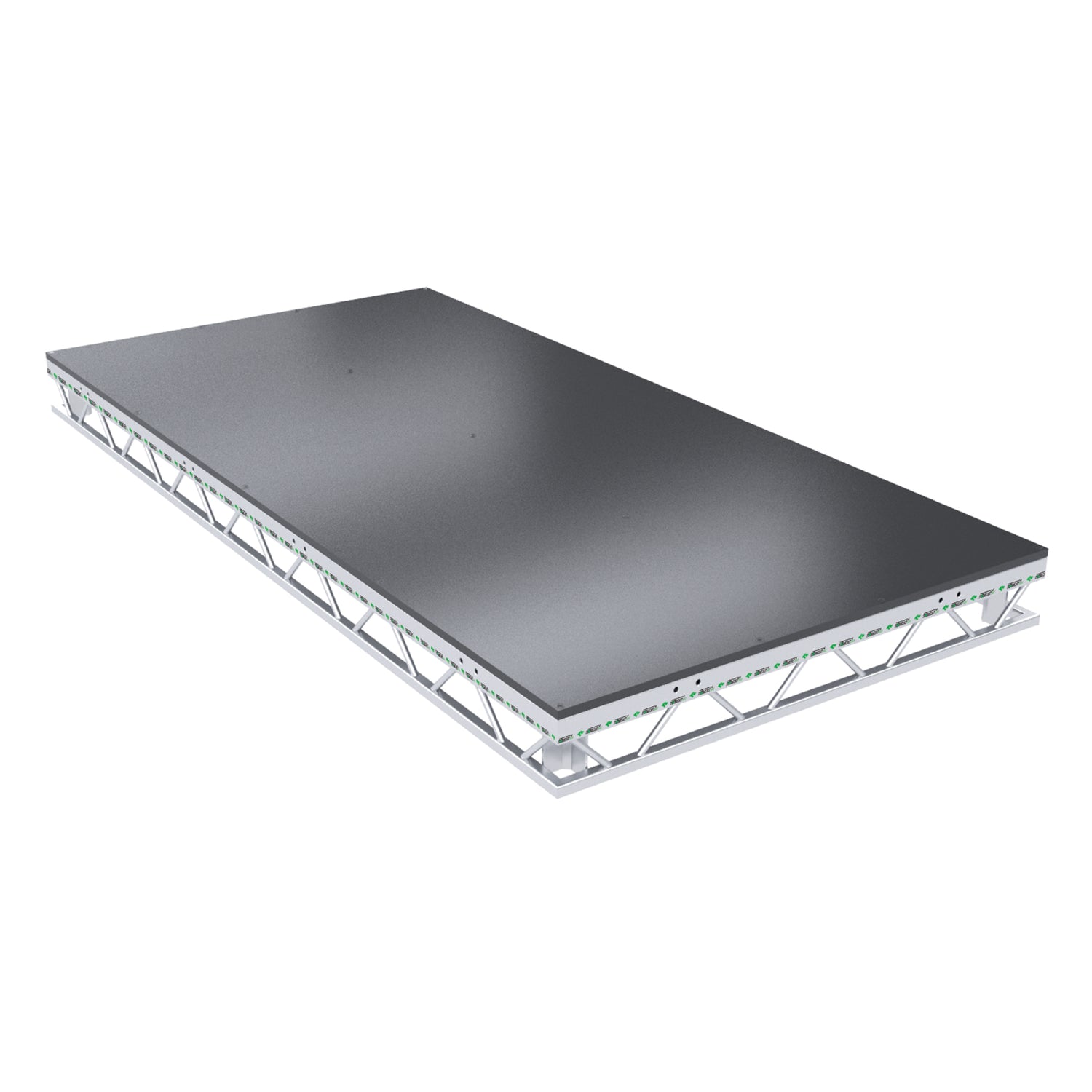

The TC TDB8X4 is the flagship rectangular stage deck in the TOMCAT DEX system, designed for versatile, high-performance staging in professional events, concerts, and temporary installations. As part of our lightweight modular lineup, this industry-standard size offers exceptional strength and ease of setup, making it ideal for both experienced riggers and those new to modular staging. Built with a welded aluminum truss-style frame, it supports a durable walking surface while ensuring seamless integration with other components.

Key Specifications

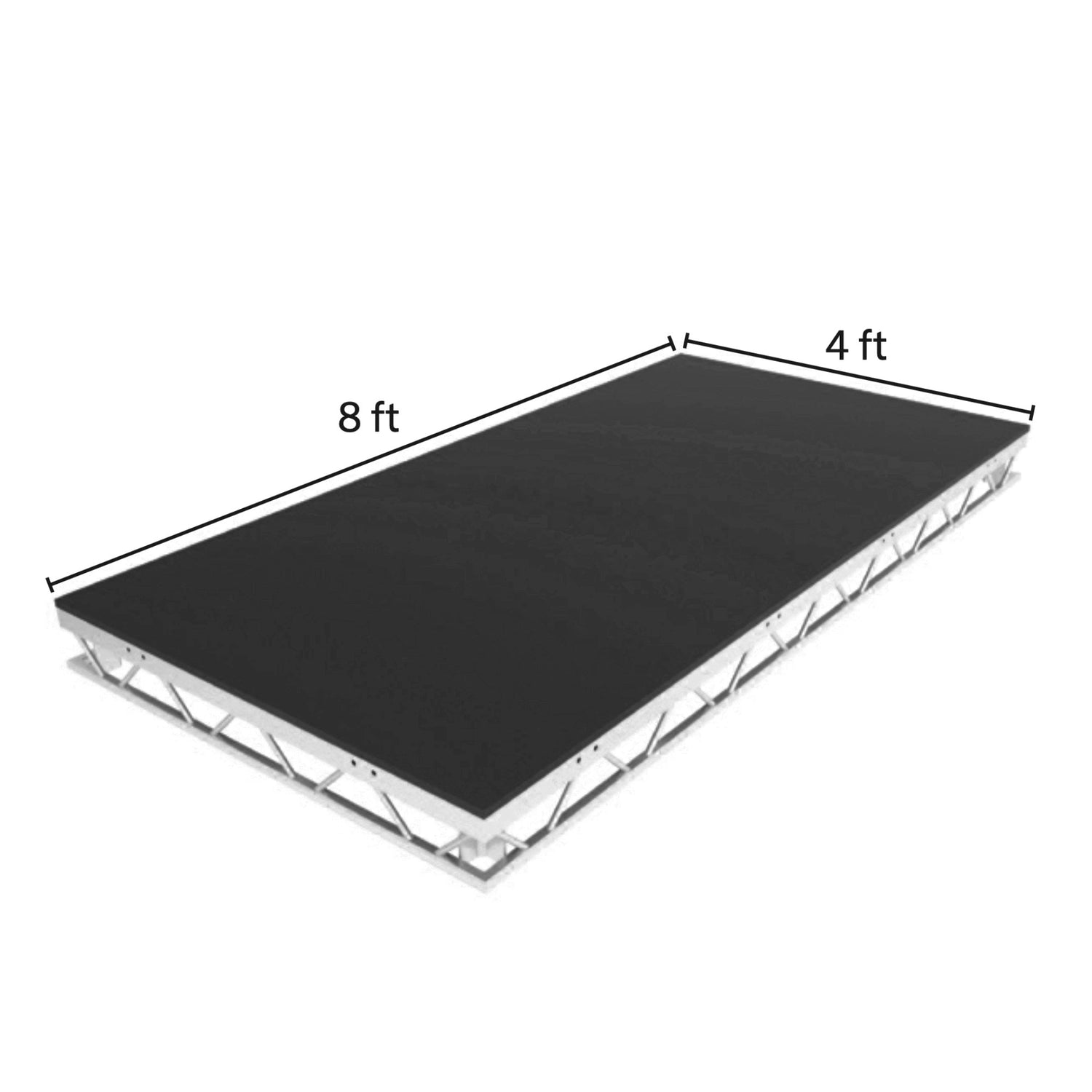

• Dimensions: 8' x 4' (2.44 m x 1.22 m)
• Height Options: Adjustable from 8" to 48" (200 mm to 1220 mm) with compatible legs - sold separately
• Load Capacity: Maximum uniform distributed load (UDL) of 122 lbs per square foot (600 kg/m²)
• Deck Surface: Matte black painted 11/16" (18 mm) thick plywood for a smooth, non-slip walking area
• Weight: 106 lbs (48 kg) – nearly 1/3 lighter than traditional steel decks for easier transport and handling
• Storage Height: Compact 6.85" (174 mm) when stacked
• Connections: Simple nut-and-bolt system for deck-to-deck and accessory links, with multiple holes for compatibility with other industry systems

Key Features

• Robust Aluminum Frame: Welded truss design provides superior strength under pressure, supporting heavy loads while remaining lightweight and corrosion-resistant.
• User-Friendly Surface: The plywood top is easily replaceable, repairable, or repainted on-site, extending product life and minimizing downtime. Optional finishes like clear acrylic or aluminum grating available for specialized needs.
• Versatile Leg Pockets: Four integrated pockets at each corner accept up to 2" (51 mm) outside diameter round legs, with compatibility for common sizes like 1½" schedule 40 pipe – perfect for mixing with existing inventory.
• Modular Connectivity: Cost-effective bolted connections ensure quick assembly, while extra hardware holes allow integration with non-DEX systems for flexible rigging.
• Safety and Durability: Engineered for professional use with a focus on load distribution, making it suitable for elevated stages up to 48" high.

As the world's leading manufacturer of aluminum truss and staging solutions, we stand behind the TC TDB8X4 for its reliability in demanding environments. Pair it with our adjustable legs, handrails, or stairs for a complete setup.
