Milos: MR1 Arched Roof 6x4 m (19.69' x 13.12')
Contact us
The MR0 Sloping Roof 6x4 m (19.69' x 13.12') is a professional aluminum sloping roof system designed for medium to large temporary events, featuring a heavy-duty M290 Quatro structure with Duo canopy support. The gentle sloping design—created with special wedges and reinforced multicubes—ensures effective water runoff, reduced wind loads, and a modern aesthetic while delivering high stability and quick assembly. Supplied complete with internal wind bracing wires and connection accessories, it comes with a full structural calculation report and build manual. This roof suits indoor or outdoor use with clear access from all sides—perfect for truss professionals needing efficient setups or occasional users seeking a simple, dependable covering solution with reliable drainage.
Key Features
- Gentle Sloping Design — Uses special wedges and reinforced multicubes for natural water drainage and contemporary look.
- Heavy-Duty M290 Quatro Structure — With Duo canopy support for reliable performance.
- Fast & Simple Assembly — Complete with internal wind bracing wires and all connection accessories.
- Full Documentation — Structural calculation report and build manual included.

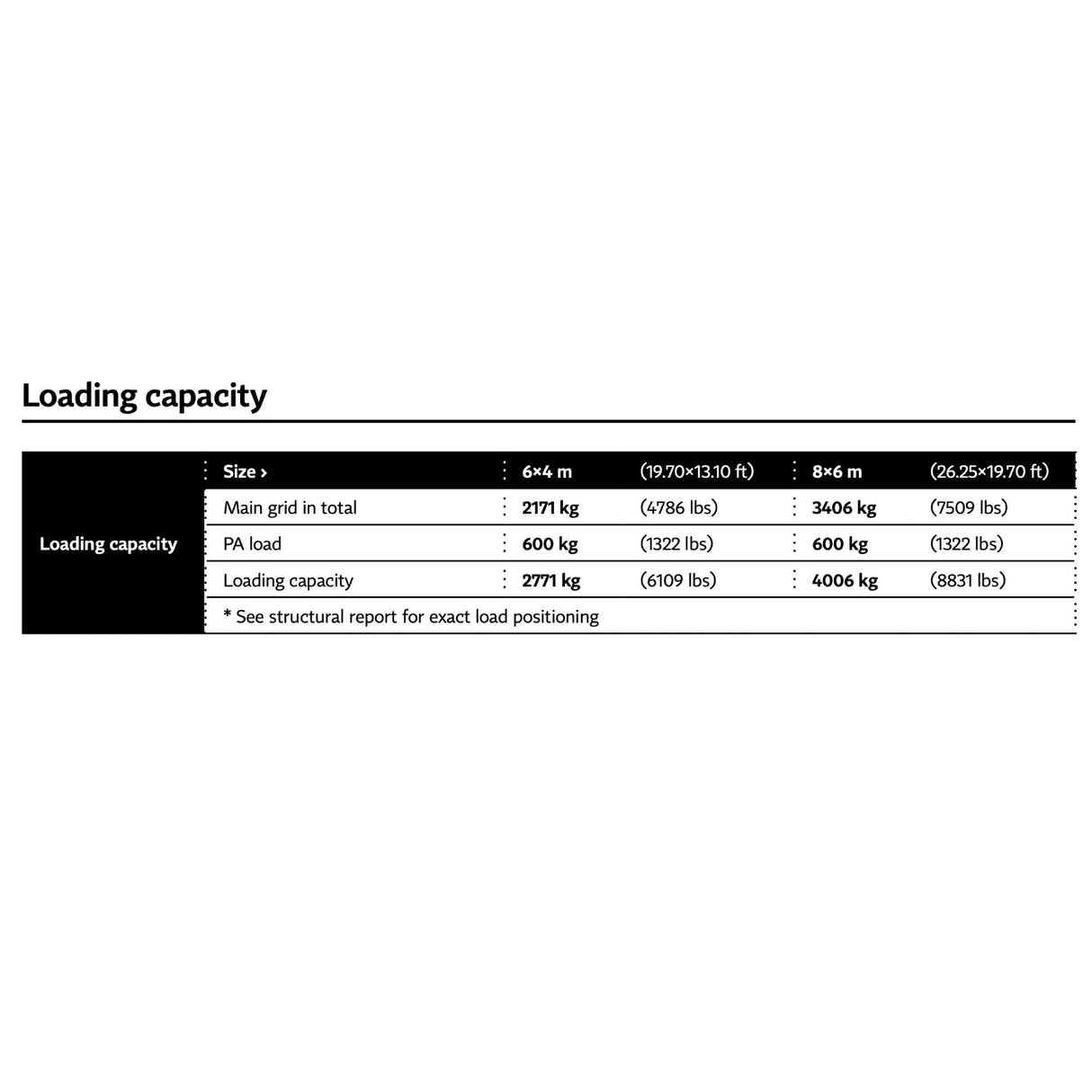

- High Load Capacity — Up to 60 kg/m on horizontal truss sections with QTVU connections; point loads up to 300 kg per PA point and 200 kg per cantilever.
- Terrain Adjustment — Adjustable screwjack legs 572-950 mm for precise leveling on uneven surfaces.
- Clear Access All Sides — Open design for unrestricted load-in/out and audience visibility.
- B1 Fire-Retardant Canopy — Single-piece format in silver grey (other colours or black inside on request); optional B1 side nets available.
- Customisation Available — Truss configuration or dimensions on request.

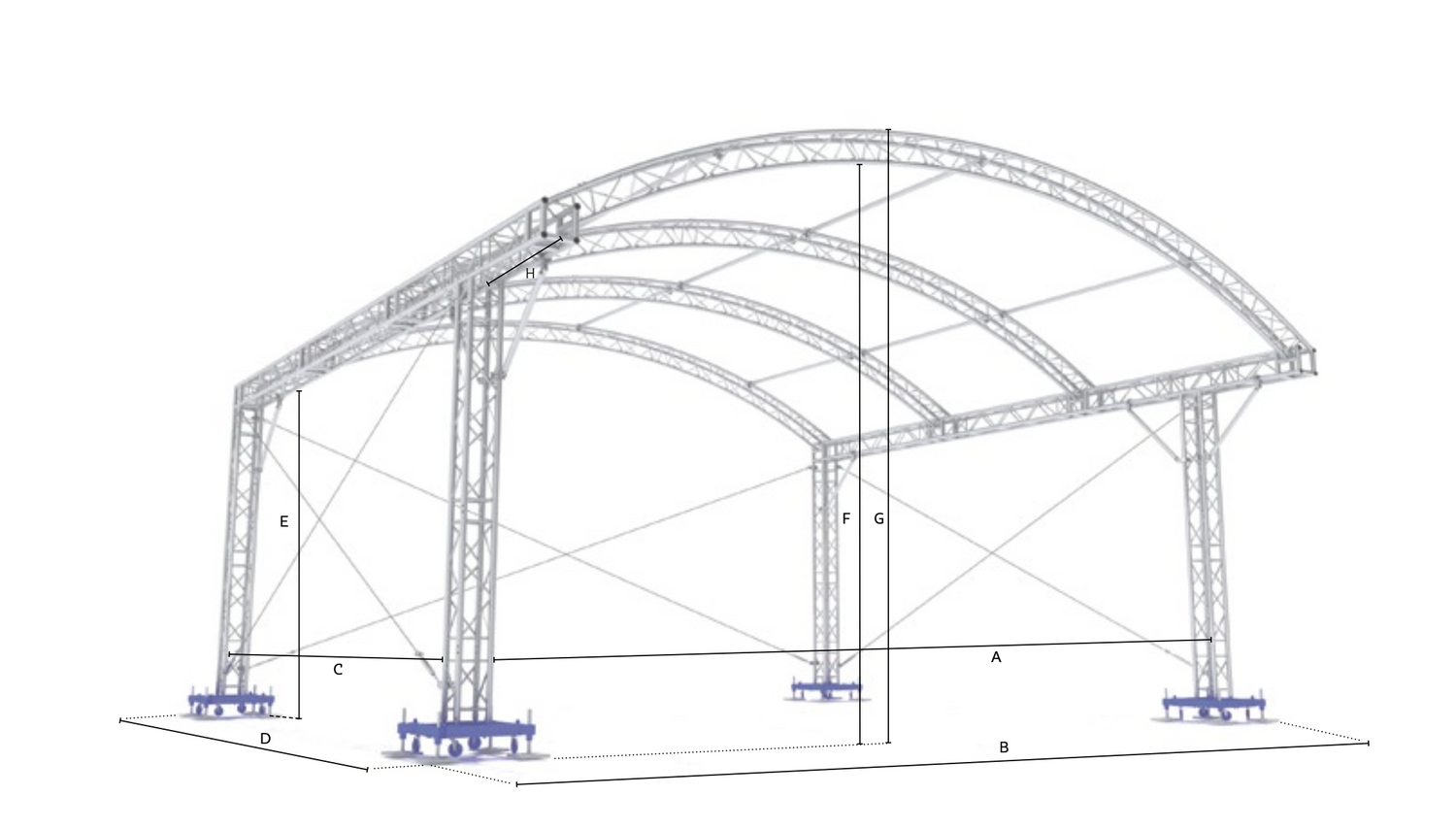

Technical Specifications (6x4 m version)
| Parameter | Metric | Imperial |
|---|---|---|
| Size | 6m x 4m | 19.70 ft x 13.12 ft |
| Internal width (A) | 6.00 m | 19.69 ft |
| Overall external width (B) | 6.06 m | 19.88 ft |
| Internal depth (C) | 4.40 m | 14.44 ft |
| Overall external depth (D) | 5.43 m | 17.81 ft |
| Side clearance (E) | 4.43 m | 14.53 ft |
| Middle clearance (F) | 5.42 m | 17.78 ft |
| Overall height (G) | 5.69 m | 18.67 ft |
| Cantilever depth (H) | 1.21 m | 3.97 ft |
