Milos: MR0 Sloping Roof 8x6 m (26.25' x 19.69')
Contact us

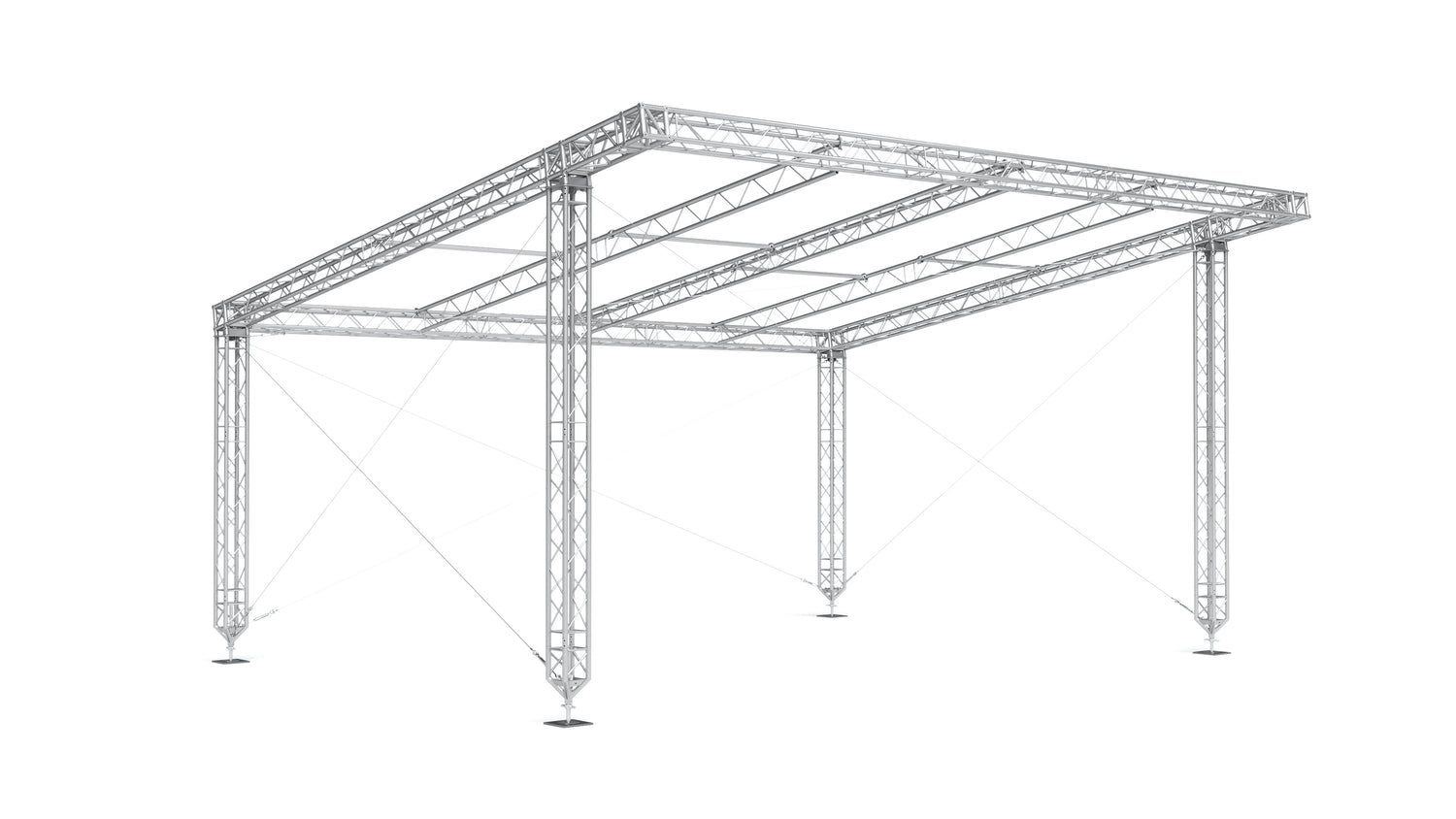

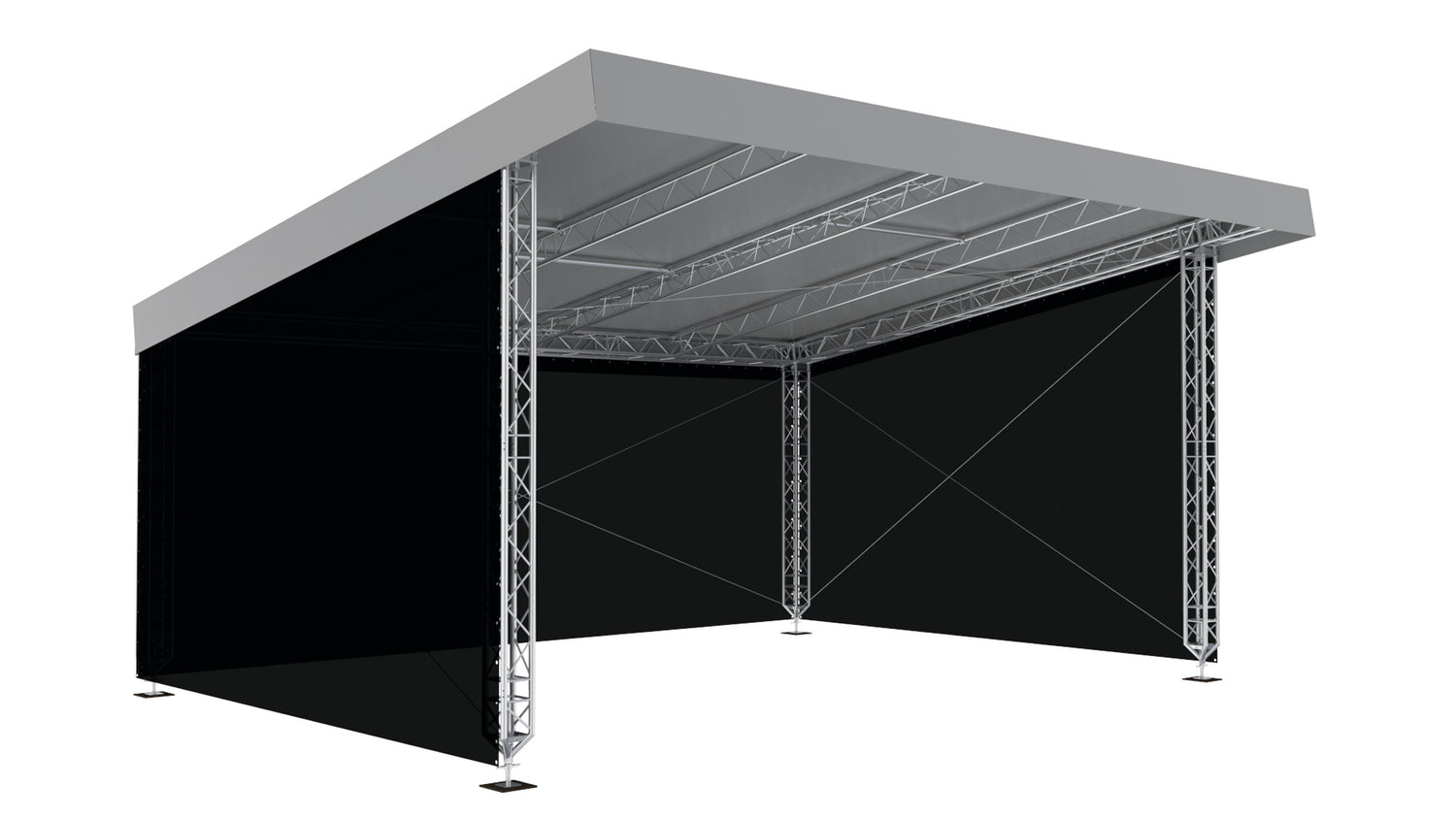

The MR0 Sloping Roof 8x6 m (26.25' x 19.69') is a professional aluminum sloping roof system designed for medium to large temporary events, featuring a heavy-duty M290 Quatro structure with Duo canopy support. The gentle sloping design—created with special wedges and reinforced multicubes—ensures effective water runoff, reduced wind loads, and a modern aesthetic while delivering high stability and quick assembly. Supplied complete with internal wind bracing wires and connection accessories, it comes with a full structural calculation report and build manual. This roof suits indoor or outdoor use with clear access from all sides—perfect for truss professionals needing efficient setups or occasional users seeking a simple, dependable covering solution with reliable drainage.
Key Features
- Gentle Sloping Design — Uses special wedges and reinforced multicubes for natural water drainage and contemporary look.
- Heavy-Duty M290 Quatro Structure — With Duo canopy support for reliable performance.
- Fast & Simple Assembly — Complete with internal wind bracing wires and all connection accessories.
- Full Documentation — Structural calculation report and build manual included.
- High Load Capacity — Up to 60 kg/m on horizontal truss sections with QTVU connections; point loads up to 300 kg per PA point and 200 kg per cantilever.
- Terrain Adjustment — Adjustable screwjack legs 572-950 mm for precise leveling on uneven surfaces.
- Clear Access All Sides — Open design for unrestricted load-in/out and audience visibility.
- B1 Fire-Retardant Canopy — Single-piece format in silver grey (other colours or black inside on request); optional B1 side nets available.
- Customisation Available — Truss configuration or dimensions on request.
Technical Specifications (8x6 m version)
| Parameter | Metric | Imperial |
|---|---|---|
| Size | 8 x 6 m | 26.25 x 19.70 ft |
| Internal width (A) | 8.50 m | 27.89 ft |
| Overall external width (B) | 9.10 m | 29.86 ft |
| Internal depth (C) | 5.92 m | 19.42 ft |
| Overall external depth (D) | 6.50 m | 21.32 ft |
| Front clearance (E) | 4.76 m | 15.62 ft |
| Back clearance (F) | 3.55 m | 11.65 ft |
| Overall height (G) | 5.48 m | 17.98 ft |
| Cantilever depth (H) | 1.10 m | 3.60 ft |
