Product Detail

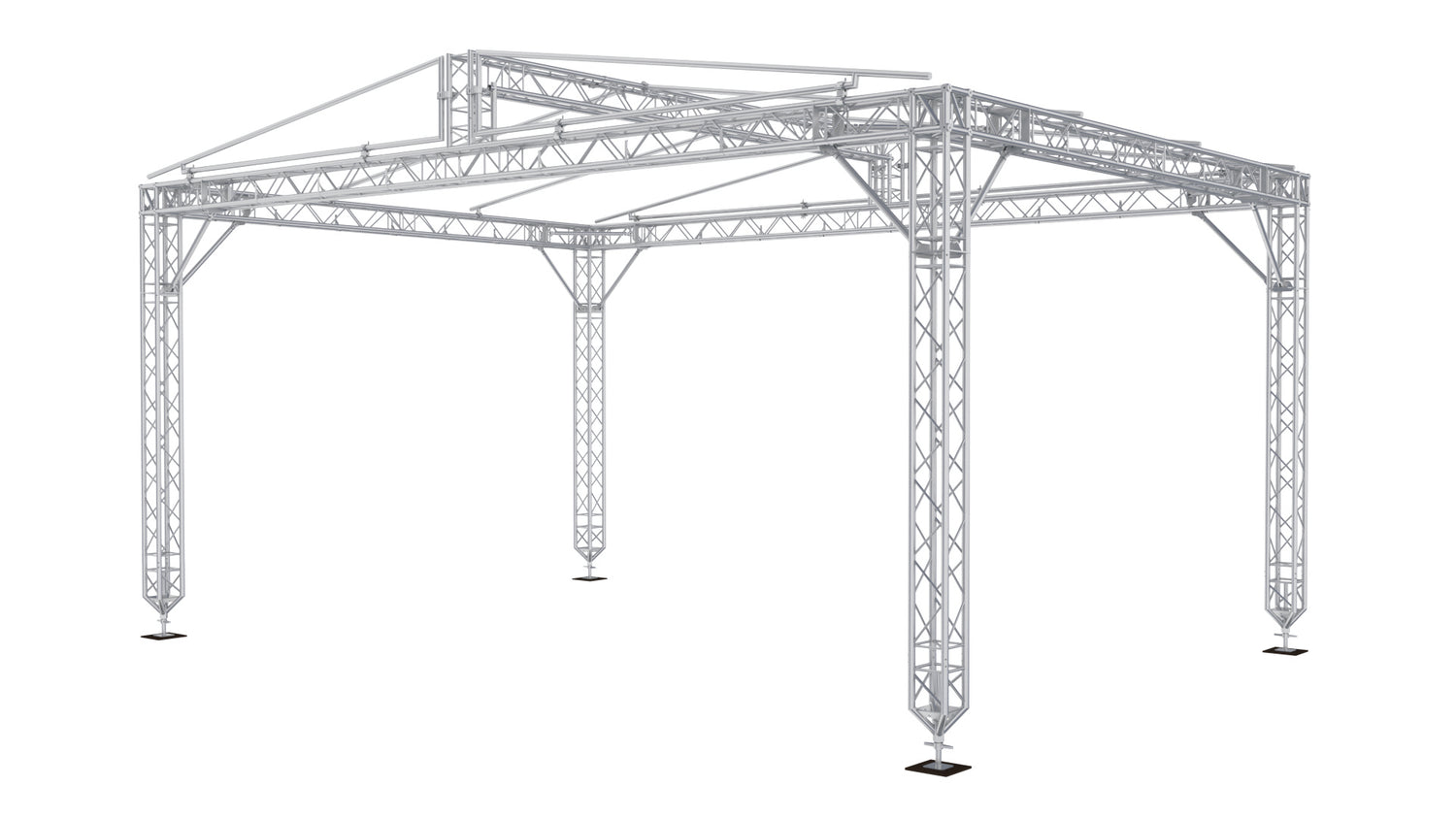

The MR0 No Guy Wires Saddle Roof 8x6 m is a professional aluminum saddle roof system designed for larger medium-sized events, delivering a spacious covered stage area without guy wires thanks to the heavy-duty Corner Brace HD technology. This smart design cuts construction time and lowers ballast needs while offering excellent load performance and clear access from all sides. With adjustable screwjack legs (572-950 mm) for easy terrain leveling, it's perfect for indoor or outdoor use—ideal for truss professionals who value speed and flexibility, or occasional users needing a reliable, user-friendly roof solution.

Key Features

• No Guy Wires Required — Corner Brace HD ensures self-supporting stability for faster, cleaner setups.
• Reduced Build Time & Ballast — Significantly quicker assembly with ballast from 1050 kg (2314 lbs) up to 1875 kg (4133 lbs) depending on configuration, side wings, covering, etc.

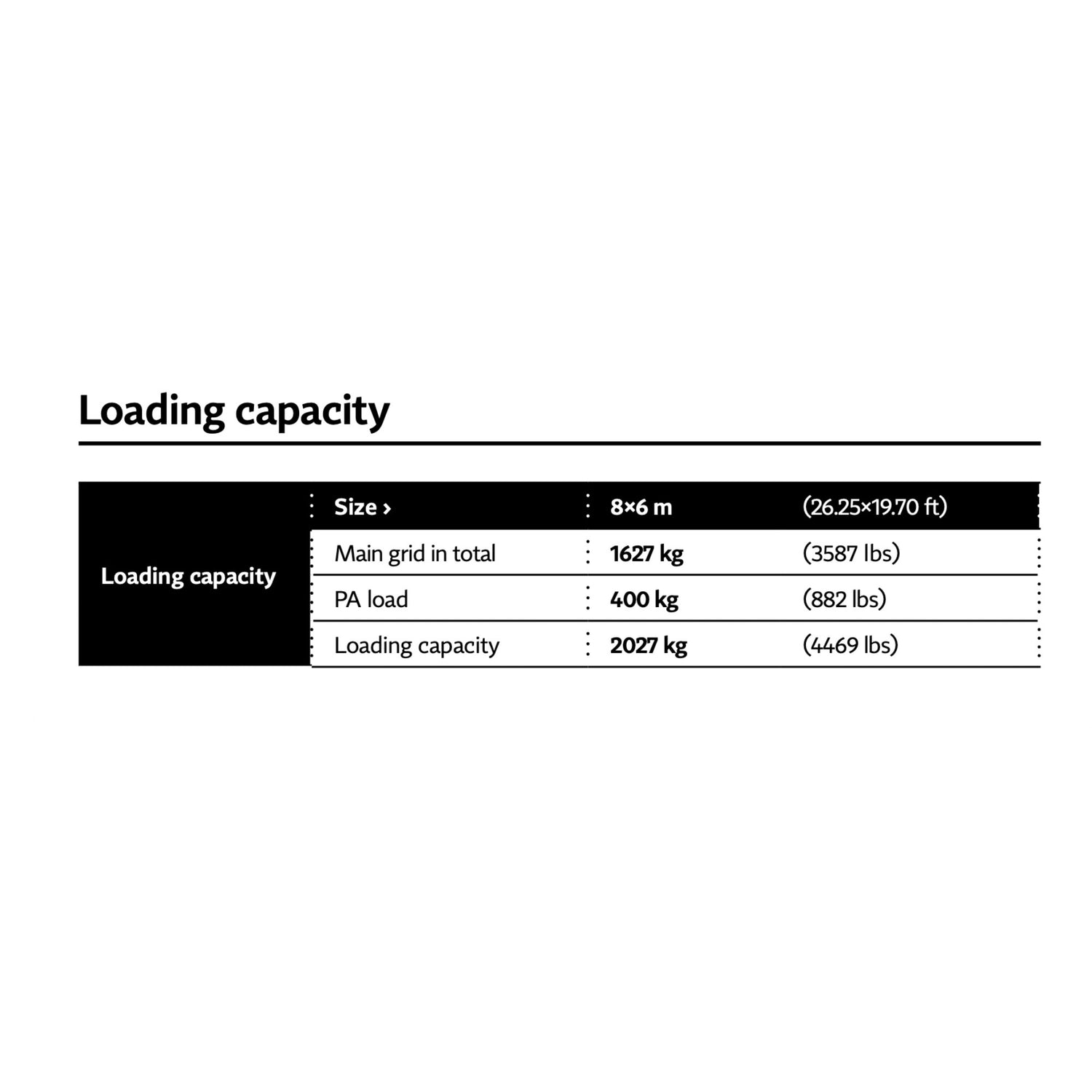

• High Load Capacity — Up to 30 kg/m front/back and 25 kg/m sides (QTB/QTV), or 60 kg/m + 300 kg (661 lbs) per PA point when using M290 QTVU connections; 200 kg (441 lbs) per cantilever.
• Terrain Adjustment — Screwjack legs 572-950 mm allow perfect leveling on uneven ground.
• Clear Access All Sides — Open design with no obstructions for easy load-in/out and audience sightlines.
• Wind Management — In service 17.8 m/s (40 mph) with 100% windproof claddings; out of service up to 30 m/s (67 mph) depending on terrain (remove large-area equipment when out of service).

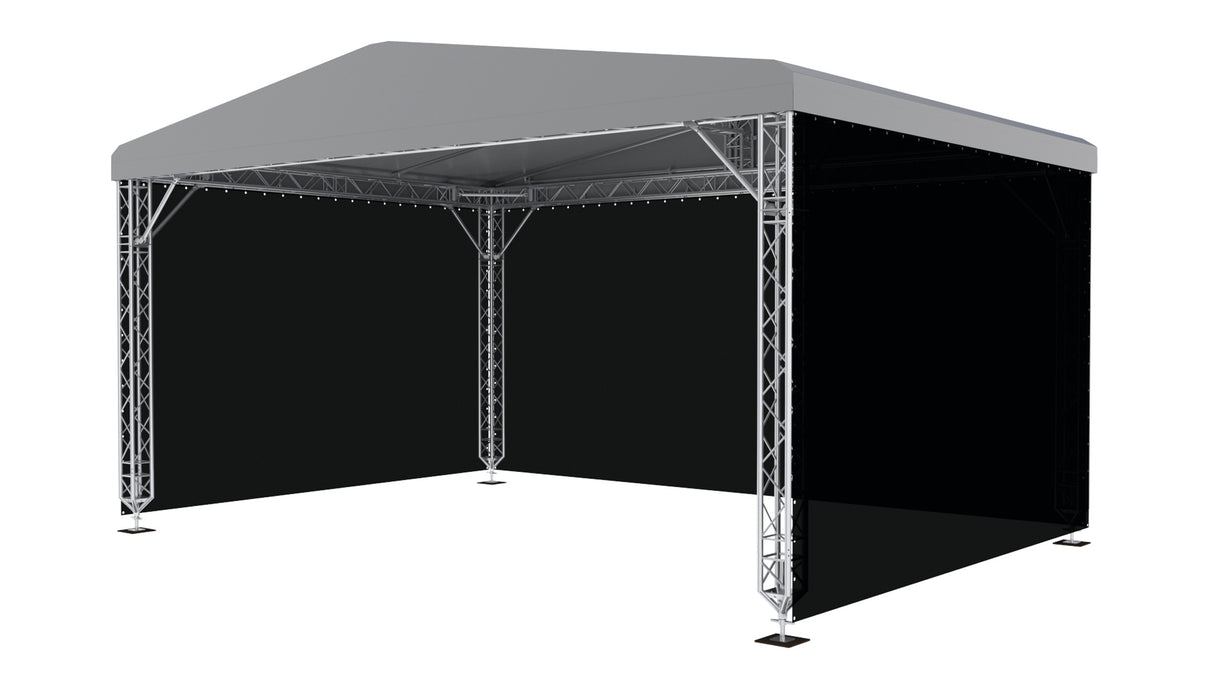

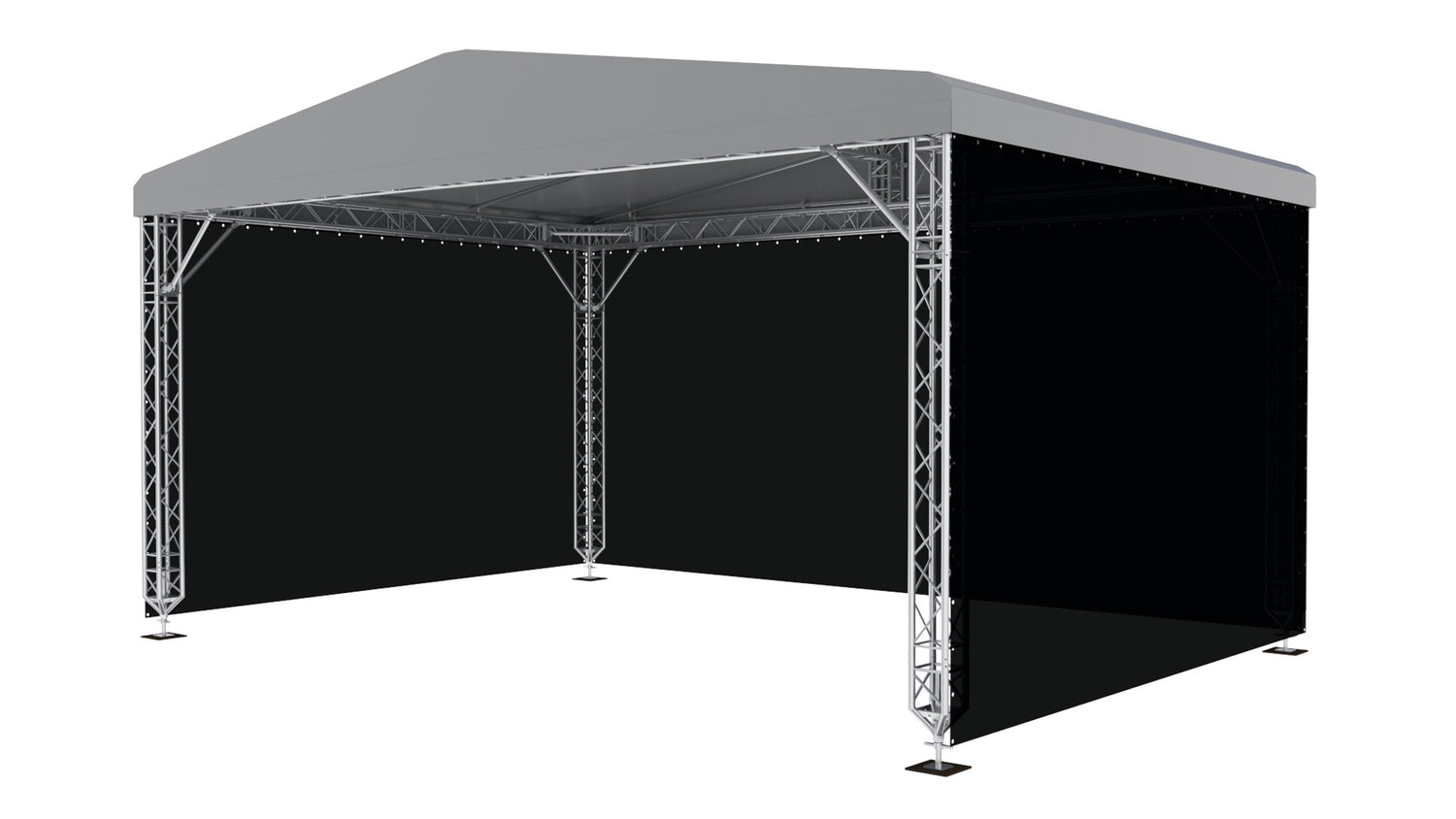

• B1 Fire Retardant Canopy — Single-piece silver grey (other colours or inside black on request); optional B1 side nets available.
• Customisation Available — Truss configuration, dimensions, or adjustability on request.
