MR0 No Guy Wires Saddle Roof 6x5 m (19.68' x 16.40')
Contact us

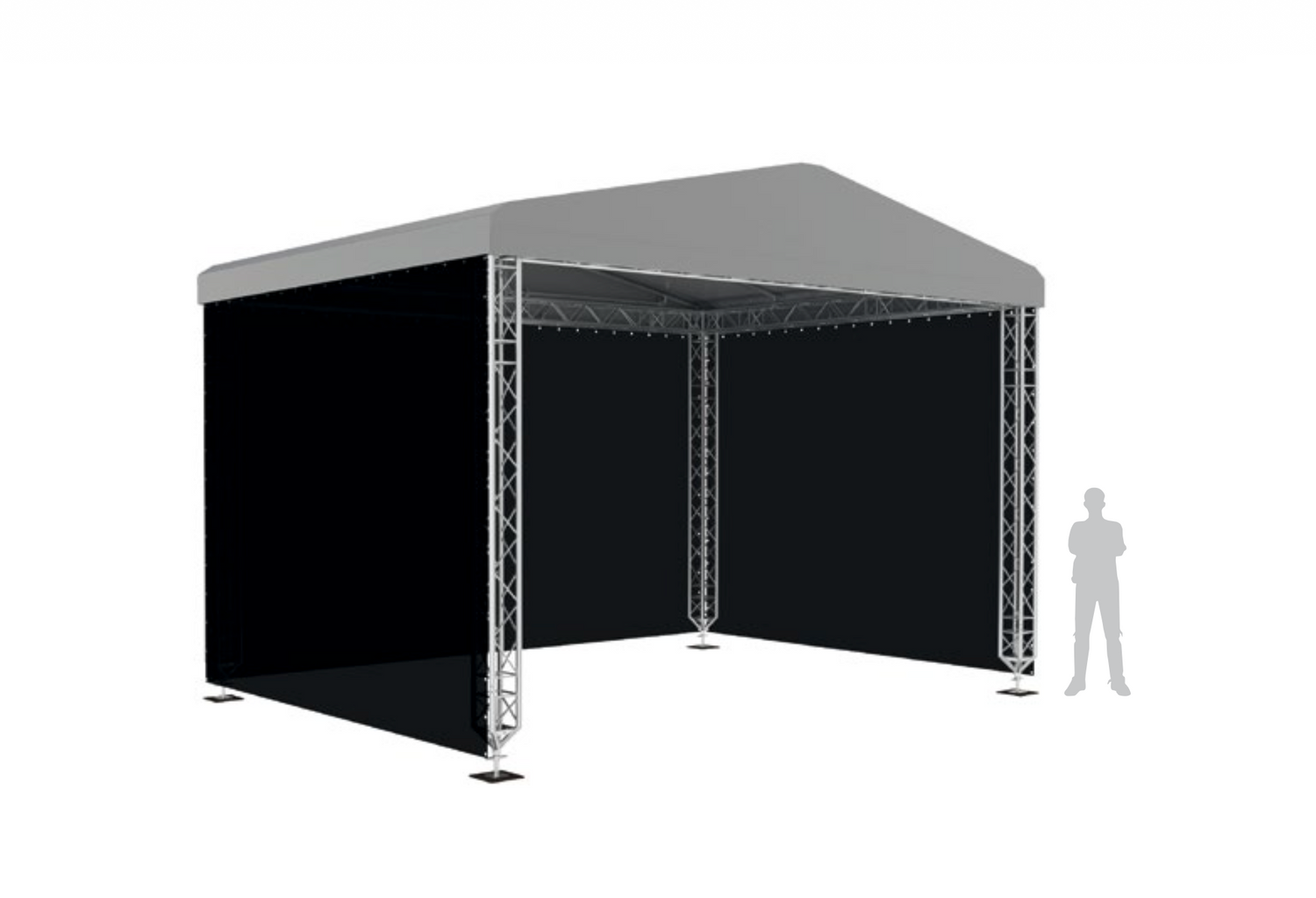

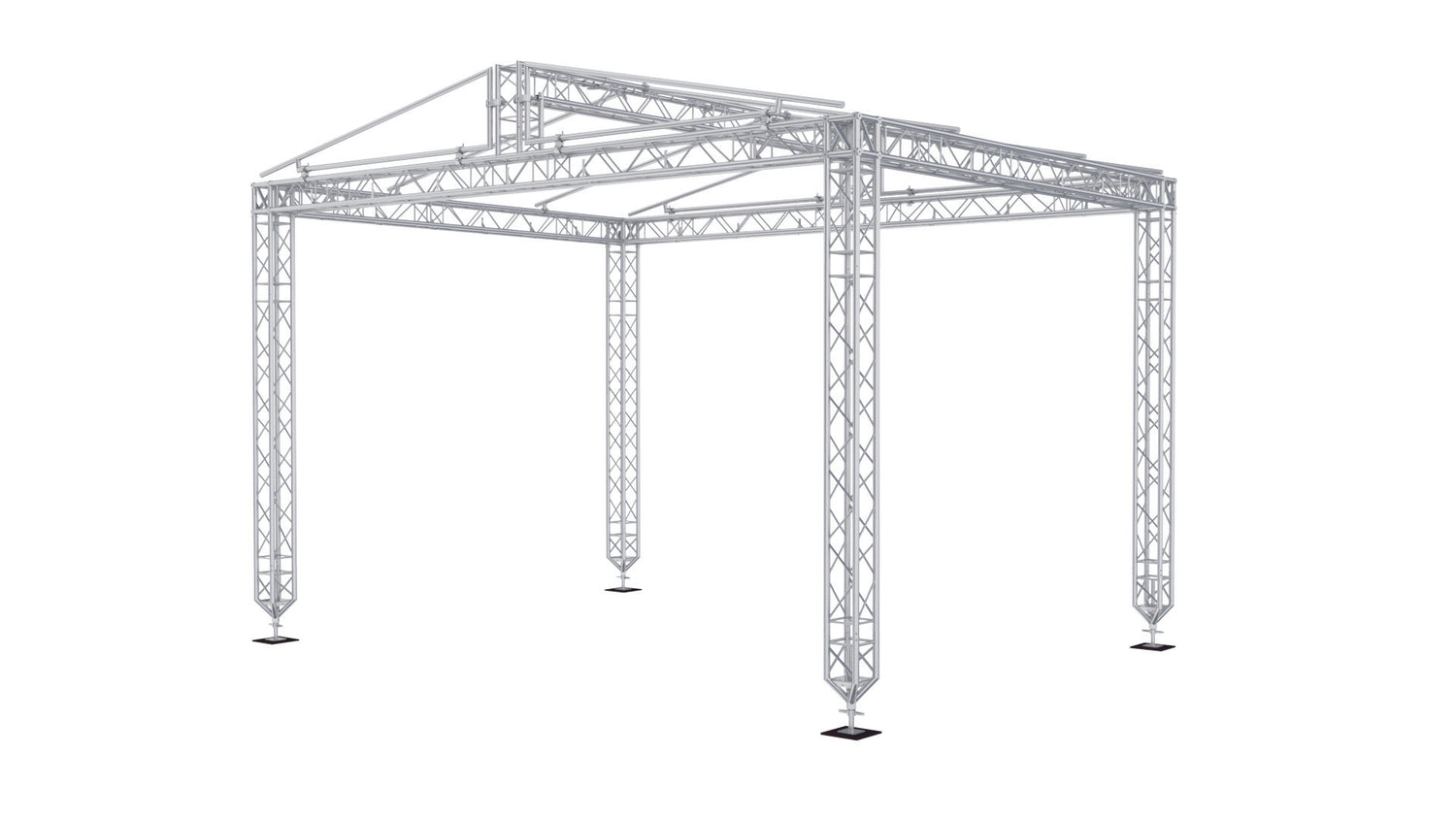

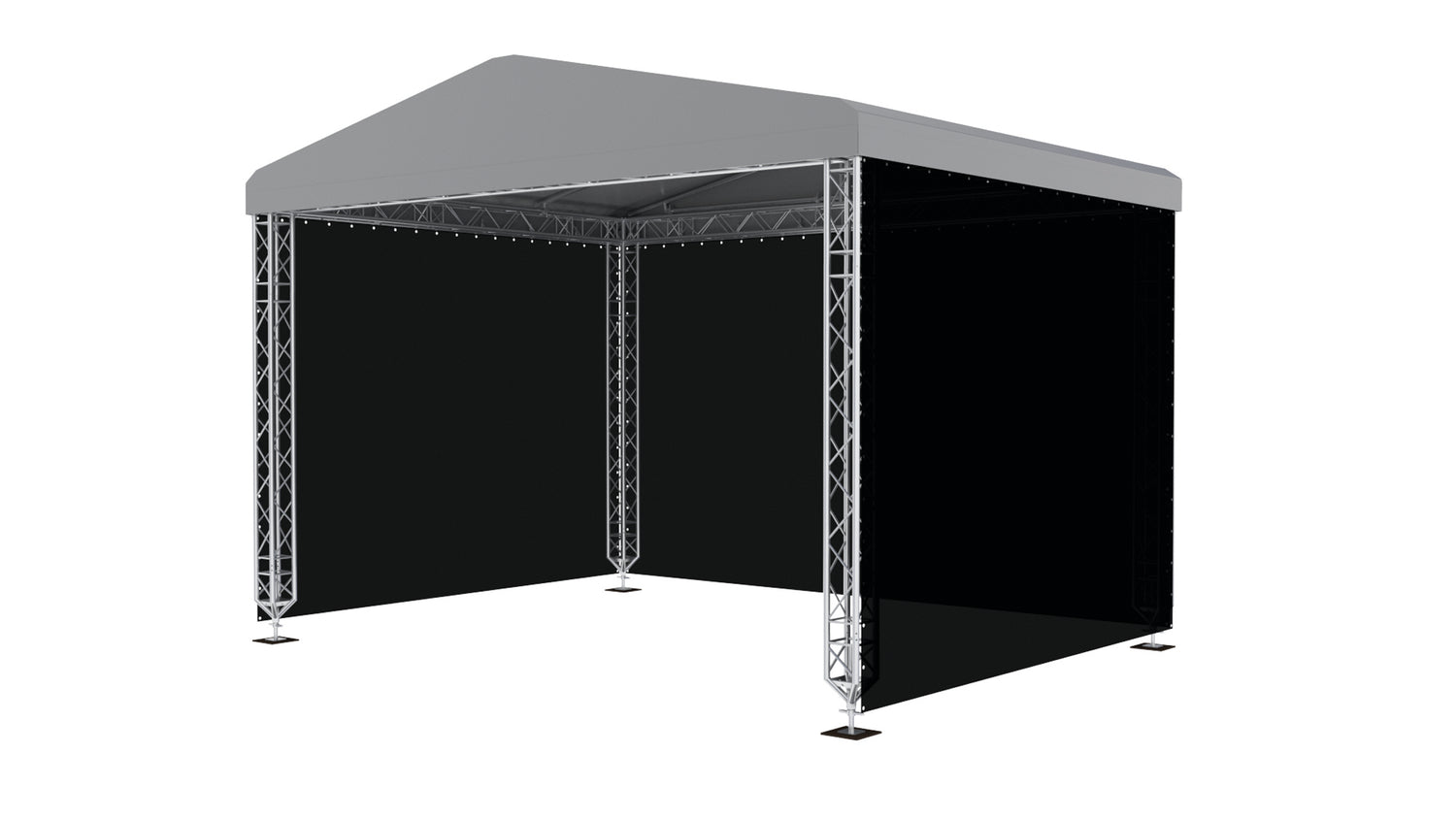

The MR0 No Guy Wires Saddle Roof 6x5 m is a professional aluminum saddle roof system designed for medium-sized events, providing a covered stage area without guy wires thanks to the heavy-duty Corner Brace HD technology. This innovative design significantly reduces construction time and ballast requirements while maintaining high structural performance. Suitable for indoor or outdoor use, it offers up to 50 kg/m (33.5 lbs/ft) loading on horizontal truss sections (QTU/QTVU connections) or 30 kg/m (20 lbs/ft) (QTB/QTV connections), up to 200 kg (441 lbs) per cantilever, and wind resistance up to 30 m/s in accordance with DIN EN 13814 – making it reliable for truss professionals and easy to handle for occasional users.
Key Features
- No Guy Wires Needed: Corner Brace HD provides self-supporting stability, saving time and space on site.
- Faster Build Time: Reduced setup complexity compared to traditional guyed roofs.
- Lower Ballast Requirements: From 900 kg (1984 lbs) up to 1400 kg (3086 lbs) depending on configuration, side wings, covering, and other factors.

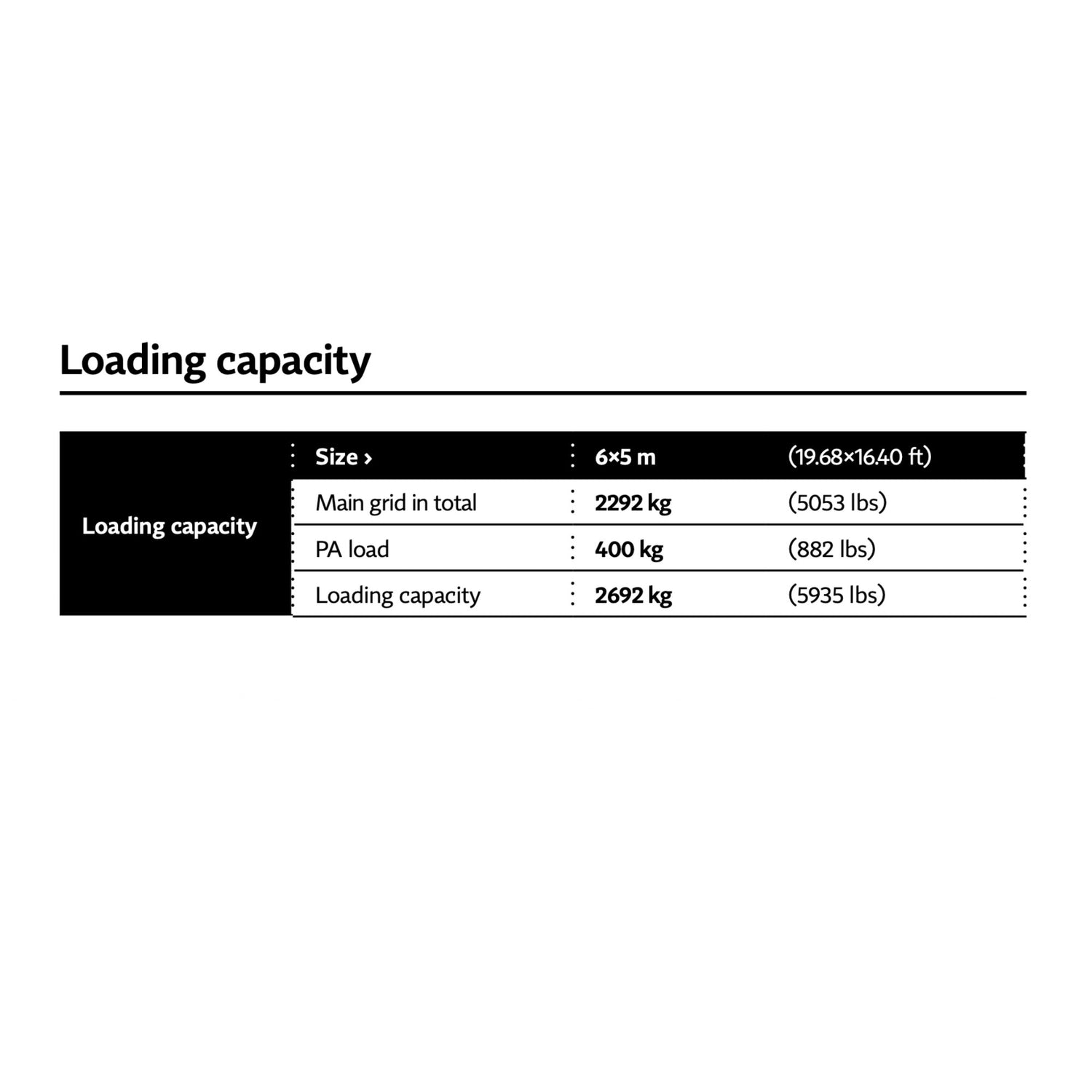

- High Load Capacity: Up to 50 kg/m on main grid for QTU/QTVU, 30 kg/m for QTB/QTV, and 200 kg per cantilever.
- Wind Management: In service 17.8 m/s (40 mph) with 100% windproof claddings; out of service up to 30 m/s (67 mph) depending on terrain (side claddings and large-area equipment must be removed).
- B1 Fire Retardant Canopy: Single-piece silver grey (other colours or inside black on request); optional B1 side nets available.
- Customisation Available: Truss configuration, alternative dimensions, or roof adjustability on request.
Technical Specifications

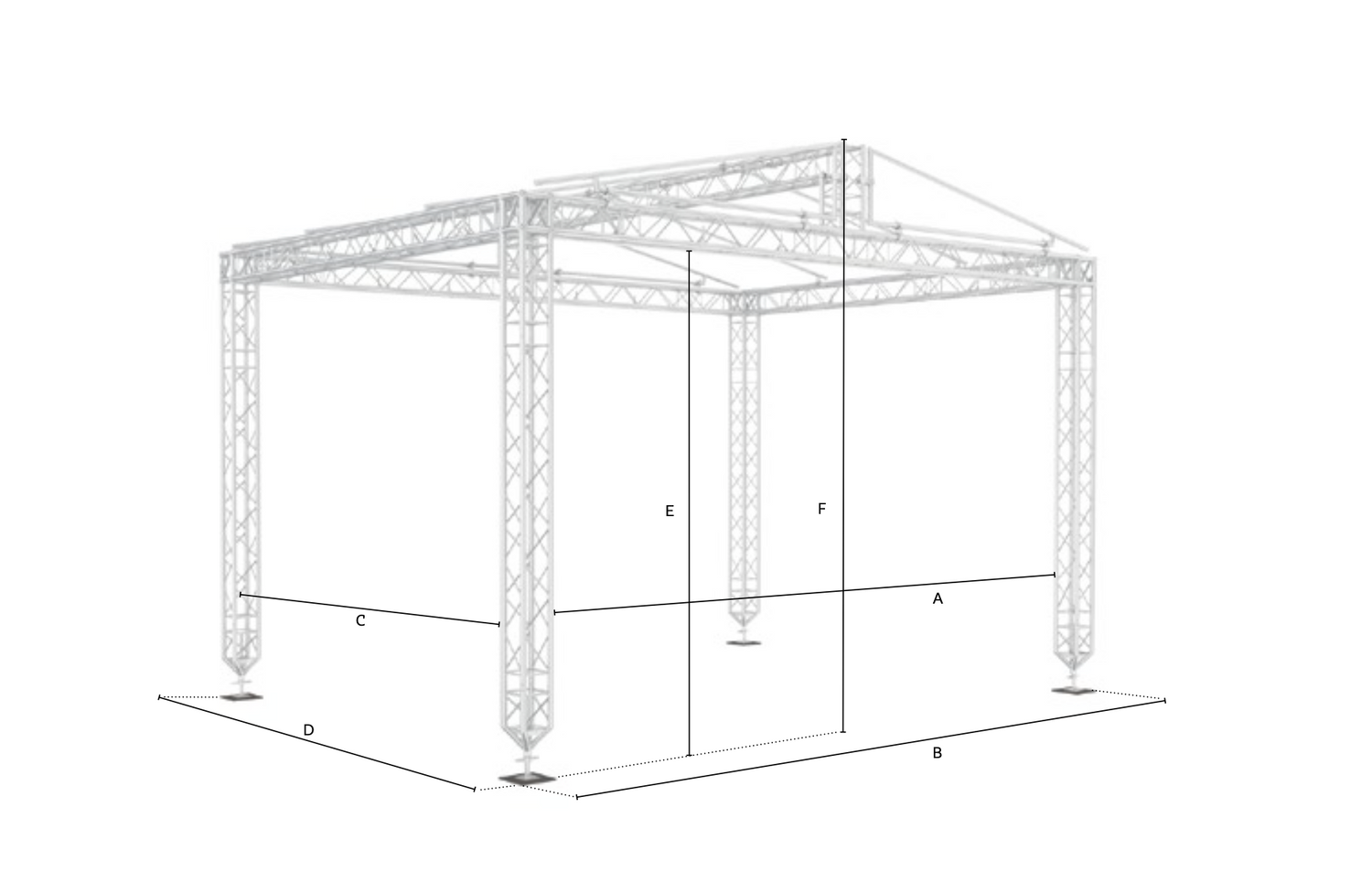

| Parameter | Metric | Imperial |
|---|---|---|
| Size | 6 x 5 m | 19.68 x 16.40 ft |
| Internal width (A) | 6.13 m | 20.11 ft |
| Overall external width (B) | 6.73 m | 22.08 ft |
| Internal depth (C) | 5.00 m | 16.40 ft |
| Overall external depth (D) | 5.60 m | 18.37 ft |
| Clearance (E) | 3.95 m | 12.95 ft |
| Overall height (F) | 4.95 m | 16.24 ft |
| Self-weight (approx.) | 650 kg | 1433 lbs |
| Transport volume | 7 m³ | 247.2 ft³ |
