M222 quatro 9.84ft Aluminum Truss
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us

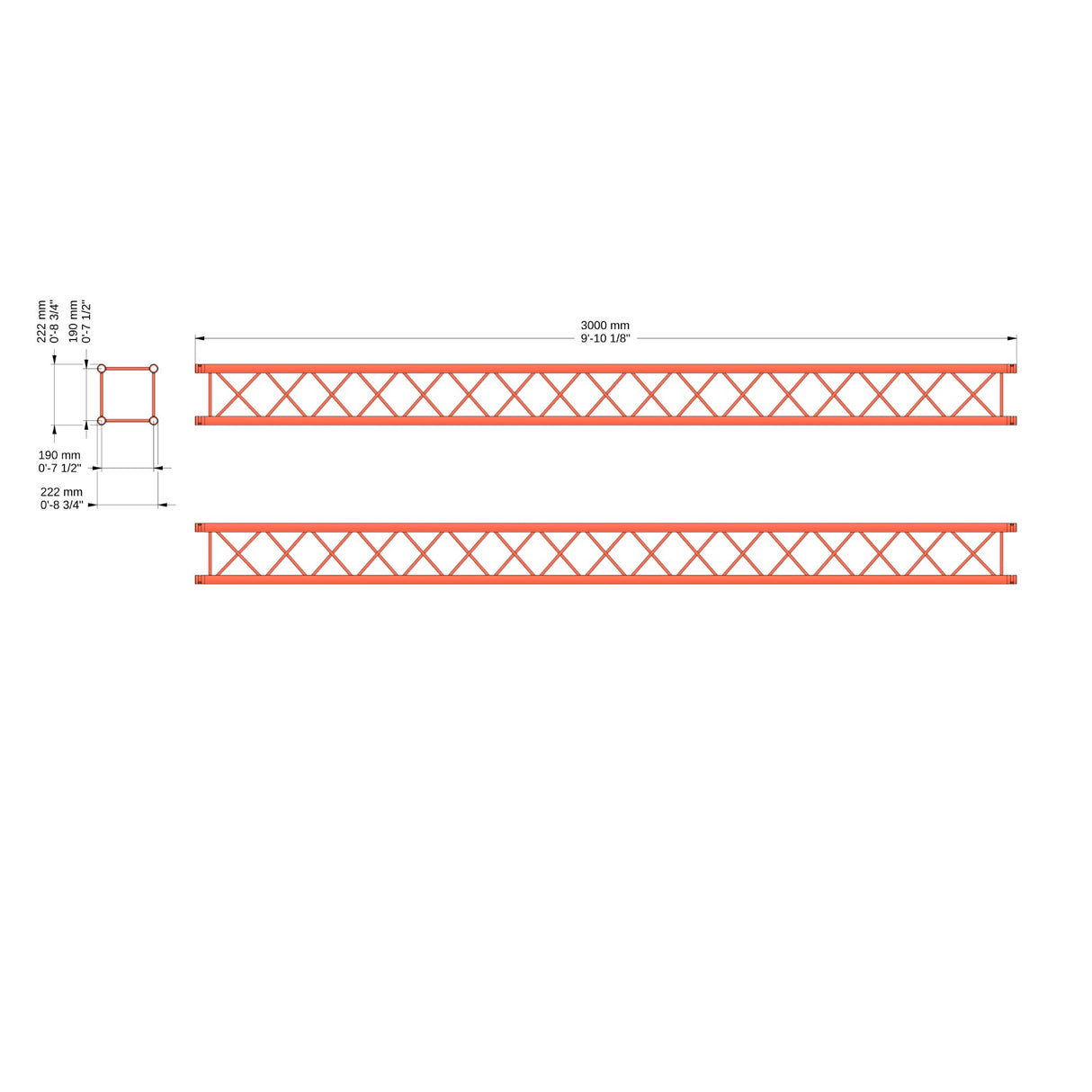

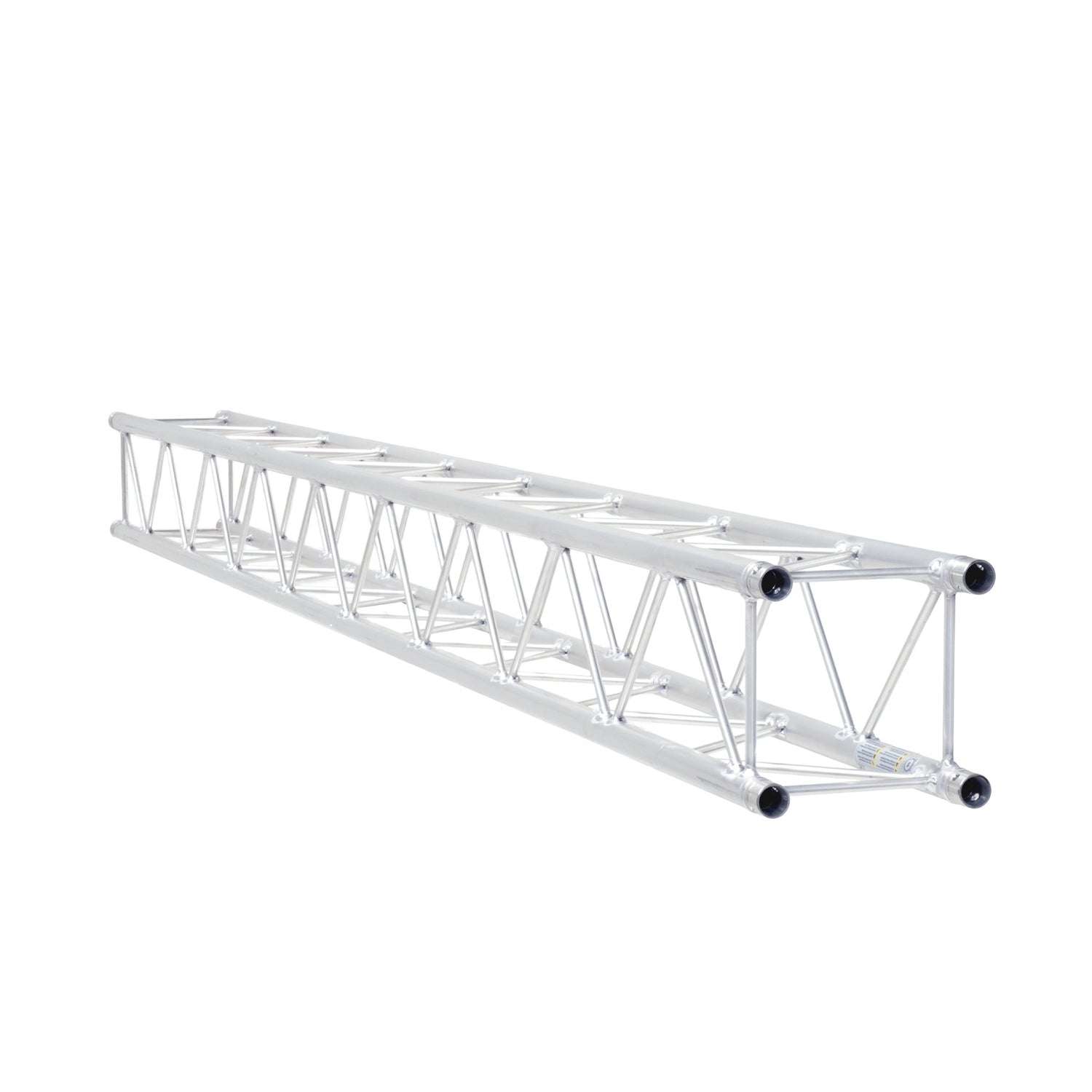

Introducing the M222 Quatro 9.84ft Length Truss, a versatile and robust solution designed to meet your structural needs with ease. As part of the trusted M222 Quatro series, this truss combines exceptional strength and stability with a lightweight design, making it an ideal choice for professionals and enthusiasts alike. Measuring 9.84 feet (3 meters) in length, it’s perfect for creating expansive spans and supporting heavy loads, all while maintaining the durability and rigidity that the quatro design is known for.
Built for convenience and performance, this truss features a high load-bearing capacity, allowing it to handle lighting rigs, speakers, and other equipment effortlessly. Its lightweight aluminum construction ensures easy transport and setup, while the quick-connect conical coupling system guarantees fast, secure assembly without sacrificing safety. Whether you’re staging a concert, designing a trade show booth, or crafting an architectural installation, the M222 Quatro 9.84ft Length Truss delivers reliability and flexibility. Fully compatible with the M222 Quatro series and accessories like base plates and corner blocks, it’s a modular powerhouse ready to elevate your next project.
Key Features

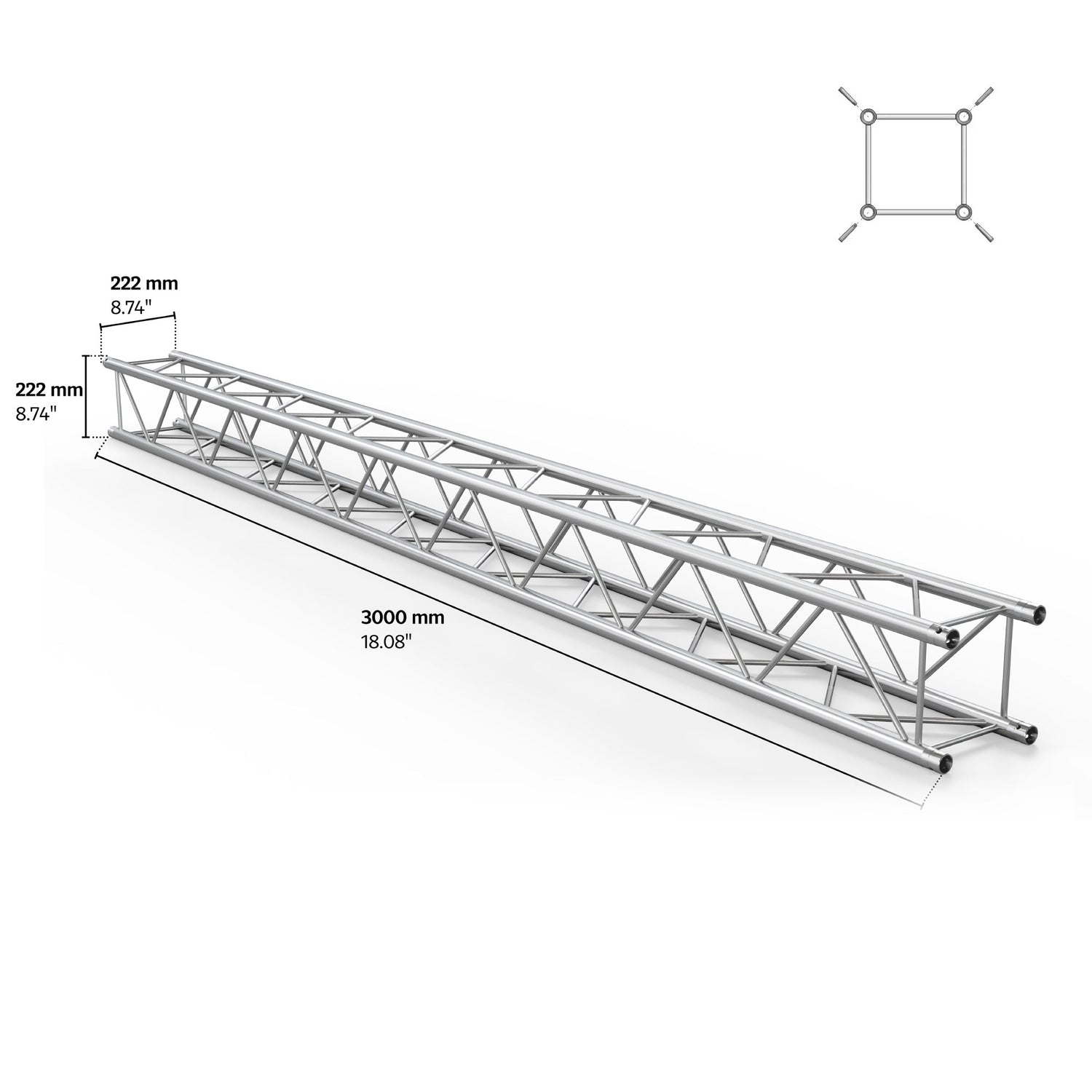

- Length: 9.84 feet (3 meters) – Ideal for large-scale applications
- Material: High-strength aluminum alloy – Lightweight yet durable
- Load Capacity: Supports substantial weight for versatile use
- Assembly: Quick and easy with conical coupling system
- Compatibility: Works seamlessly with M222 Quatro series and accessories
- Finish: Corrosion-resistant for long-lasting performance
Specifications
Specifications
-
Truss type
-
Coupler
-
Alloy
-
Span
-
Size
-
Braces
-
Main Tube
-
Length (ft)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
Introducing the M222 Quatro 9.84ft Length Truss, a versatile and robust solution designed to meet your structural needs with ease. As part of the trusted M222 Quatro series, this truss combines exceptional strength and stability with a lightweight design, making it an ideal choice for professionals and enthusiasts alike. Measuring 9.84 feet (3 meters) in length, it’s perfect for creating expansive spans and supporting heavy loads, all while maintaining the durability and rigidity that the quatro design is known for.
Built for convenience and performance, this truss features a high load-bearing capacity, allowing it to handle lighting rigs, speakers, and other equipment effortlessly. Its lightweight aluminum construction ensures easy transport and setup, while the quick-connect conical coupling system guarantees fast, secure assembly without sacrificing safety. Whether you’re staging a concert, designing a trade show booth, or crafting an architectural installation, the M222 Quatro 9.84ft Length Truss delivers reliability and flexibility. Fully compatible with the M222 Quatro series and accessories like base plates and corner blocks, it’s a modular powerhouse ready to elevate your next project.
Key Features
- Length: 9.84 feet (3 meters) – Ideal for large-scale applications
- Material: High-strength aluminum alloy – Lightweight yet durable
- Load Capacity: Supports substantial weight for versatile use
- Assembly: Quick and easy with conical coupling system
- Compatibility: Works seamlessly with M222 Quatro series and accessories
- Finish: Corrosion-resistant for long-lasting performance
M222 Quatro Loading Chart
| Span | Unit | 6.56 ft (2.00 m) |
9.84 ft (3.00 m) |
13.12 ft (4.00 m) |
16.40 ft (5.00 m) |
19.69 ft (6.00 m) |
22.97 ft (7.00 m) |
26.25 ft (8.00 m) |
|---|---|---|---|---|---|---|---|---|
| Centre Point Load (CPL) | lbs (kg) | 822.32 (373.00) |
639.34 (290.00) |
515.88 (234.00) |
427.70 (194.00) |
359.35 (163.00) |
310.85 (141.00) |
269.40 (122.20) |
| Deflection | in (mm) | 0.07 (1.70) |
0.17 (4.40) |
0.33 (8.50) |
0.55 (14.00) |
0.81 (20.60) |
1.13 (28.70) |
1.50 (38.10) |
| Third Point Load (TPL) | lbs (kg) | 570.78 (258.90) |
414.47 (188.00) |
343.92 (156.00) |
293.21 (133.00) |
255.74 (116.00) |
222.67 (101.00) |
196.21 (89.00) |
| Deflection | in (mm) | 0.08 (2.00) |
0.19 (4.90) |
0.38 (9.70) |
0.64 (16.20) |
0.97 (24.70) |
1.37 (34.80) |
1.83 (46.40) |
| Quarter Point Load (QPL) | lbs (kg) | 380.52 (172.60) |
317.47 (144.00) |
275.58 (125.00) |
224.65 (101.90) |
184.97 (83.90) |
156.53 (71.00) |
134.70 (61.10) |
| Deflection | in (mm) | 0.07 (1.80) |
0.20 (5.20) |
0.42 (10.70) |
0.68 (17.30) |
0.98 (25.00) |
1.34 (34.10) |
1.76 (44.60) |
| Fifth Point Load (FPL) | lbs (kg) | 285.50 (129.50) |
262.35 (119.00) |
224.87 (102.00) |
182.98 (83.00) |
154.10 (69.90) |
130.29 (59.10) |
112.22 (50.90) |
| Deflection | in (mm) | 0.07 (1.80) |
0.21 (5.40) |
0.44 (11.10) |
0.71 (18.00) |
1.04 (26.40) |
1.42 (36.00) |
1.85 (47.10) |
| Uniformly Distributed Load (UDL) | lbs/ft (kg/m) | 173.97 (258.90) |
115.51 (171.90) |
86.28 (128.40) |
54.77 (81.50) |
37.63 (56.00) |
27.28 (40.60) |
20.56 (30.60) |
| Deflection | in (mm) | 0.06 (1.50) |
0.19 (4.90) |
0.46 (11.60) |
0.72 (18.20) |
1.03 (26.20) |
1.41 (35.80) |
1.84 (46.80) |
All truss loading calculations are based on:
Truss supported or suspended at both ends • Static loading only • Loads applied at the node points • Self-weight of the truss is included in all listed load capacities • Spans consisting of different truss lengths • Interaction of bending moment and shear force at connector is considered • Structural analysis based on EN 1999 • All loading data should be multiplied by 0.85 to comply with BS 7905-2 and ANSI E1.2-2006 • For any other application, or in case of an assembled structure, contact MILOS or a structural engineer • Safety factors used: self-weight 1.35 / variable loads 1.5
