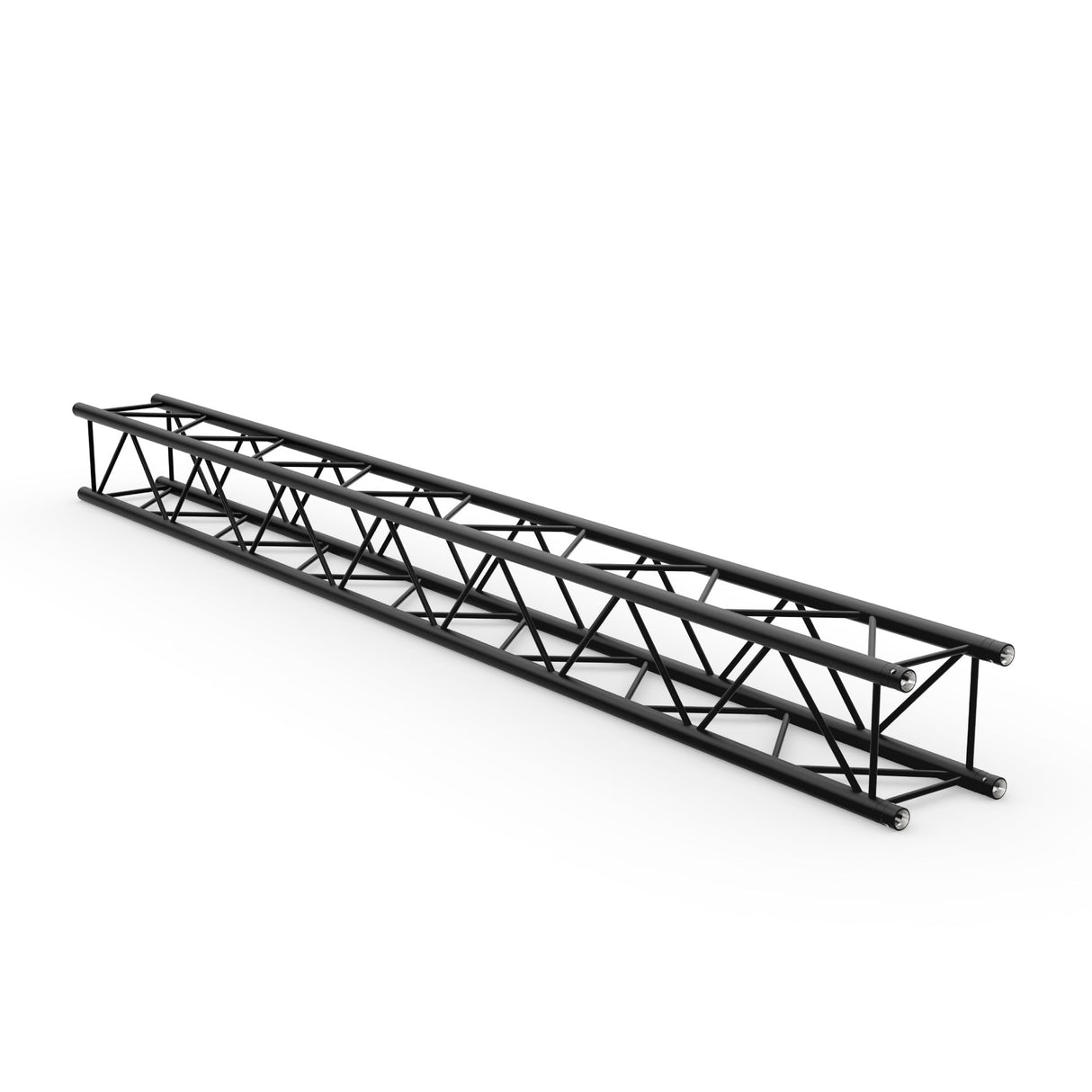

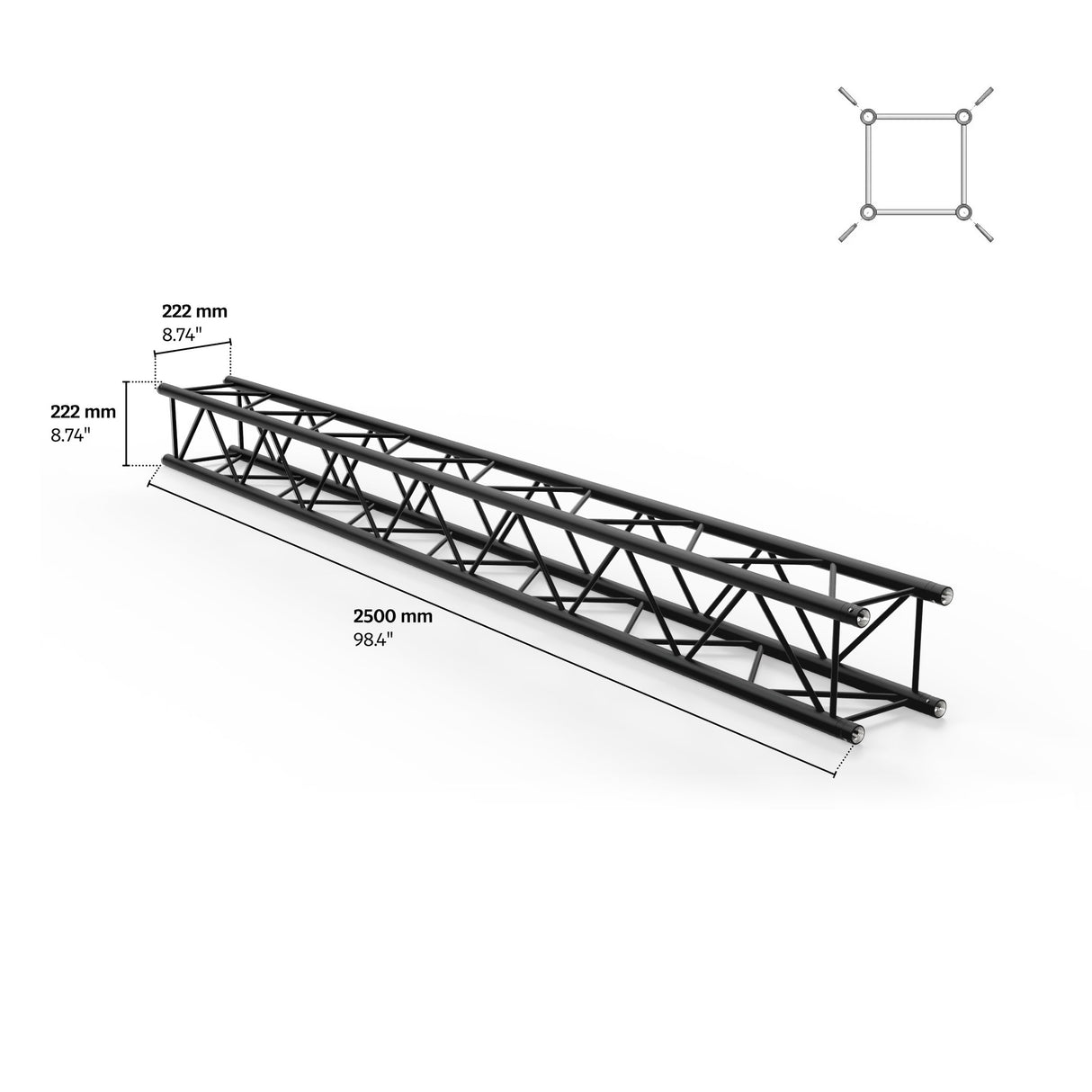

M222 quatro 8.20ft Aluminum Truss - Black
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us
The M222 Quatro 8.20ft Length Truss is a robust and versatile component of the M222 system, designed to deliver exceptional weight-loading capabilities in a compact, lightweight form. With a length of 8.20 feet, this truss is ideal for creating expansive retail displays, trade show booths, and decorative installations that require a balance of strength and extended coverage. Its size makes it perfect for larger setups or as a key modular element in more complex configurations, all while maintaining the durability and performance needed for professional results.
Assembly is quick and straightforward, thanks to the included connection kit and fast connection system, which ensures secure setups without the need for additional tools. This truss is fully compatible with the cell 130 series and Xtruss accessories, allowing seamless integration into existing systems and offering endless customization options. Its impressive free-span characteristics enable it to cover greater distances without additional support, making it an excellent choice for open, creative designs. A powder coat finish is available as an option for added durability and style.
Key Features
- 8.20ft Length: Perfect for medium to large applications, providing extended coverage and design flexibility.
- Lightweight & Strong: Easy to transport and handle while offering outstanding weight-loading capabilities.
- Quick Assembly: Fast connection system and included connection kit for secure, hassle-free setups.
- Modular Flexibility: Compatible with M222 components, cell 130 series, and Xtruss accessories.
- Impressive Span: Covers greater distances without extra support.
- Black Powder Coat Finish: for enhanced durability and a polished look.
Specifications
Specifications
-
Truss type
-
Coupler
-
Alloy
-
Span
-
Size
-
Braces
-
Main Tube
-
Length (ft)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The M222 Quatro 8.20ft Length Truss is a robust and versatile component of the M222 system, designed to deliver exceptional weight-loading capabilities in a compact, lightweight form. With a length of 8.20 feet, this truss is ideal for creating expansive retail displays, trade show booths, and decorative installations that require a balance of strength and extended coverage. Its size makes it perfect for larger setups or as a key modular element in more complex configurations, all while maintaining the durability and performance needed for professional results.
Assembly is quick and straightforward, thanks to the included connection kit and fast connection system, which ensures secure setups without the need for additional tools. This truss is fully compatible with the cell 130 series and Xtruss accessories, allowing seamless integration into existing systems and offering endless customization options. Its impressive free-span characteristics enable it to cover greater distances without additional support, making it an excellent choice for open, creative designs. A powder coat finish is available as an option for added durability and style.
Key Features
- 8.20ft Length: Perfect for medium to large applications, providing extended coverage and design flexibility.
- Lightweight & Strong: Easy to transport and handle while offering outstanding weight-loading capabilities.
- Quick Assembly: Fast connection system and included connection kit for secure, hassle-free setups.
- Modular Flexibility: Compatible with M222 components, cell 130 series, and Xtruss accessories.
- Impressive Span: Covers greater distances without extra support.
- Black Powder Coat Finish: for enhanced durability and a polished look.
M222 Quatro Loading Chart
| Span | Unit | 6.56 ft (2.00 m) |
9.84 ft (3.00 m) |
13.12 ft (4.00 m) |
16.40 ft (5.00 m) |
19.69 ft (6.00 m) |
22.97 ft (7.00 m) |
26.25 ft (8.00 m) |
|---|---|---|---|---|---|---|---|---|
| Centre Point Load (CPL) | lbs (kg) | 822.32 (373.00) |
639.34 (290.00) |
515.88 (234.00) |
427.70 (194.00) |
359.35 (163.00) |
310.85 (141.00) |
269.40 (122.20) |
| Deflection | in (mm) | 0.07 (1.70) |
0.17 (4.40) |
0.33 (8.50) |
0.55 (14.00) |
0.81 (20.60) |
1.13 (28.70) |
1.50 (38.10) |
| Third Point Load (TPL) | lbs (kg) | 570.78 (258.90) |
414.47 (188.00) |
343.92 (156.00) |
293.21 (133.00) |
255.74 (116.00) |
222.67 (101.00) |
196.21 (89.00) |
| Deflection | in (mm) | 0.08 (2.00) |
0.19 (4.90) |
0.38 (9.70) |
0.64 (16.20) |
0.97 (24.70) |
1.37 (34.80) |
1.83 (46.40) |
| Quarter Point Load (QPL) | lbs (kg) | 380.52 (172.60) |
317.47 (144.00) |
275.58 (125.00) |
224.65 (101.90) |
184.97 (83.90) |
156.53 (71.00) |
134.70 (61.10) |
| Deflection | in (mm) | 0.07 (1.80) |
0.20 (5.20) |
0.42 (10.70) |
0.68 (17.30) |
0.98 (25.00) |
1.34 (34.10) |
1.76 (44.60) |
| Fifth Point Load (FPL) | lbs (kg) | 285.50 (129.50) |
262.35 (119.00) |
224.87 (102.00) |
182.98 (83.00) |
154.10 (69.90) |
130.29 (59.10) |
112.22 (50.90) |
| Deflection | in (mm) | 0.07 (1.80) |
0.21 (5.40) |
0.44 (11.10) |
0.71 (18.00) |
1.04 (26.40) |
1.42 (36.00) |
1.85 (47.10) |
| Uniformly Distributed Load (UDL) | lbs/ft (kg/m) | 173.97 (258.90) |
115.51 (171.90) |
86.28 (128.40) |
54.77 (81.50) |
37.63 (56.00) |
27.28 (40.60) |
20.56 (30.60) |
| Deflection | in (mm) | 0.06 (1.50) |
0.19 (4.90) |
0.46 (11.60) |
0.72 (18.20) |
1.03 (26.20) |
1.41 (35.80) |
1.84 (46.80) |
All truss loading calculations are based on:
Truss supported or suspended at both ends • Static loading only • Loads applied at the node points • Self-weight of the truss is included in all listed load capacities • Spans consisting of different truss lengths • Interaction of bending moment and shear force at connector is considered • Structural analysis based on EN 1999 • All loading data should be multiplied by 0.85 to comply with BS 7905-2 and ANSI E1.2-2006 • For any other application, or in case of an assembled structure, contact MILOS or a structural engineer • Safety factors used: self-weight 1.35 / variable loads 1.5
