M222 quatro 2.46 ft Aluminum Truss - Black
Available to ship in: 10 days
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us

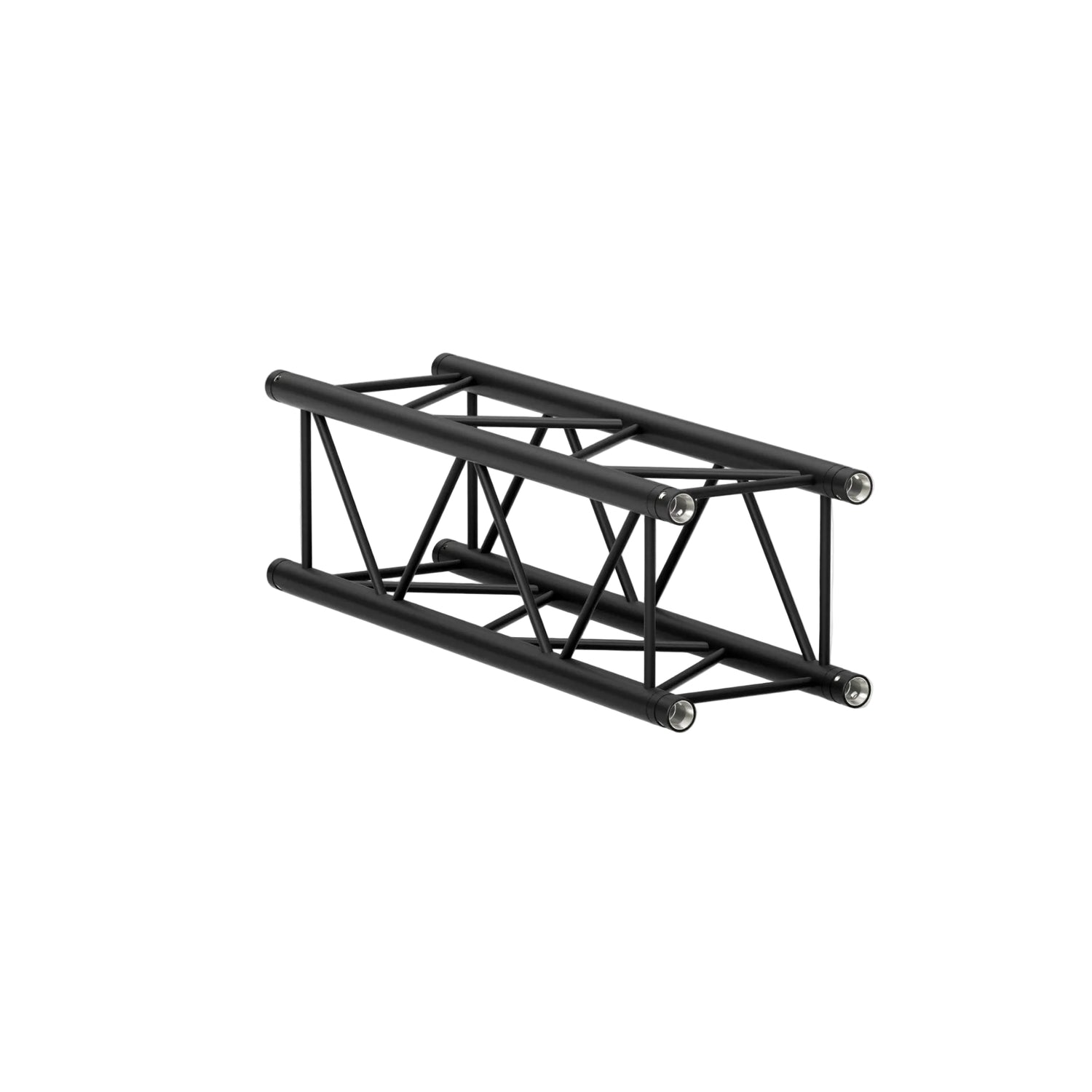

The M222 Quatro 2.46 ft Length Truss is a versatile and robust component of the M222 system, offering exceptional weight-loading capabilities in a compact, lightweight design. With a length of 2.46 ft, this truss is perfect for retail displays, trade show booths, and decorative applications where a balance of strength and portability is essential. Its small size makes it an excellent choice for tight spaces or as a modular piece in larger setups, while still delivering the durability and performance needed for professional results.
Assembly is quick and straightforward with the included connection kit and fast connection system, ensuring secure setups without the need for additional tools. This truss is fully compatible with the cell 130 series and Xtruss accessories, allowing for seamless integration into existing systems and endless customization options. Its impressive free-span characteristics mean it can span distances without additional support, making it ideal for open, creative designs.
Whether you’re building a sleek display or a standout booth, the M222 Quatro 2.46 ft Length Truss combines performance, ease of use, and aesthetic appeal in one compact solution.
Key Benefits
- 2.46 ft Length: Ideal for a wide range of applications, from small displays to larger setups.
- Lightweight & Strong: Easy to transport and handle while offering outstanding weight-loading capabilities.
- Quick Assembly: Fast connection system and included connection kit for secure, hassle-free setups.
- Modular Flexibility: Compatible with M222 components, cell 130 series, and Xtruss accessories.
- Impressive Span: Covers distances without extra support.
The black version features a sleek, modern finish achieved through powder coating. This process not only enhances its visual appeal but also provides exceptional durability. The rich, deep black color adds a touch of elegance, while the powder coating ensures a smooth, uniform surface that’s resistant to chipping, scratching, and fading. This protective layer helps extend the life of the product, making it a smart choice for both style and longevity. Additionally, powder coating is an eco-friendly option, as it avoids the use of solvents and minimizes waste, aligning with sustainable practices.

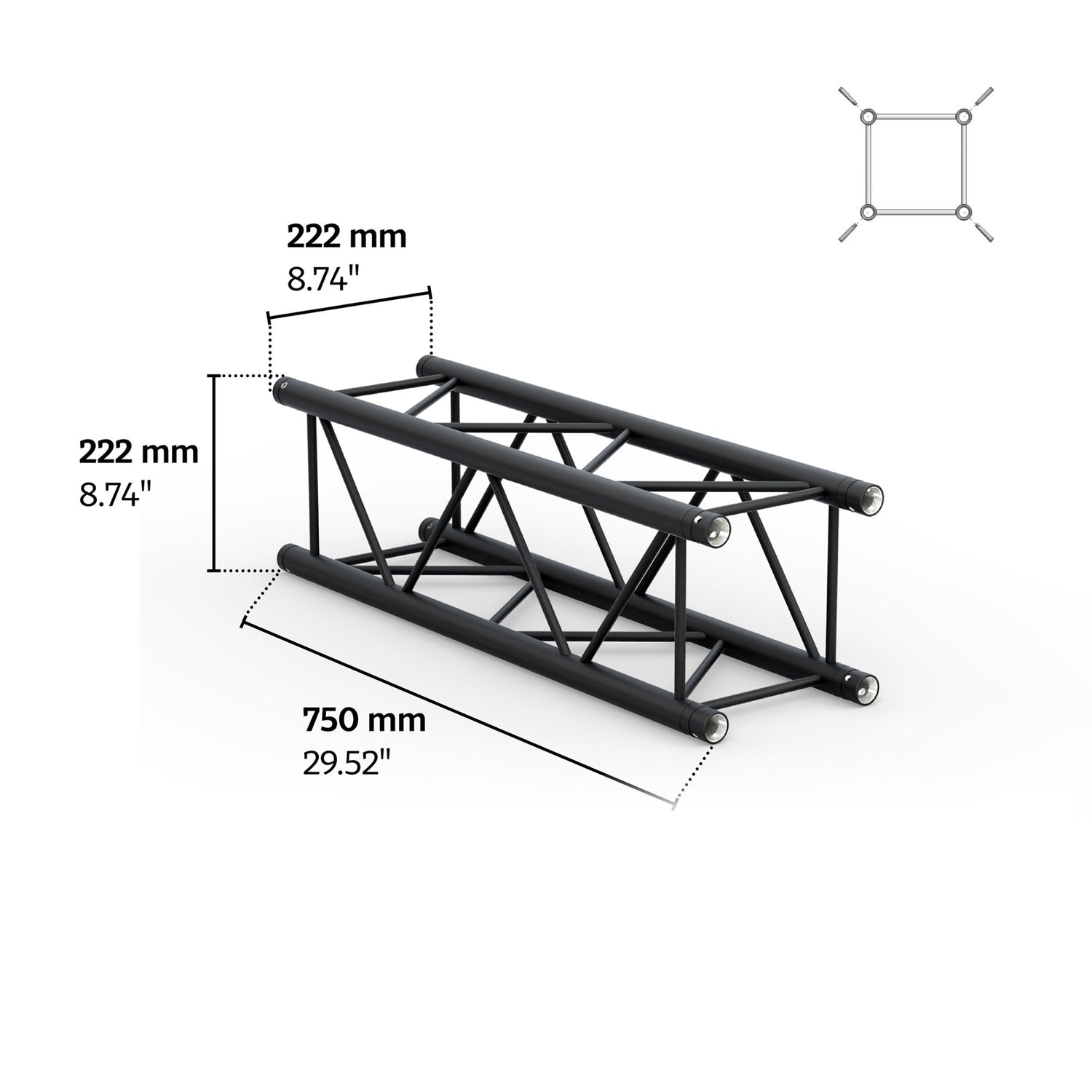

Specifications
Specifications
-
Truss type
-
Coupler
-
Alloy
-
Span
-
Size
-
Braces
-
Main Tube
-
Length (ft)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The M222 Quatro 2.46 ft Length Truss is a versatile and robust component of the M222 system, offering exceptional weight-loading capabilities in a compact, lightweight design. With a length of 2.46 ft, this truss is perfect for retail displays, trade show booths, and decorative applications where a balance of strength and portability is essential. Its small size makes it an excellent choice for tight spaces or as a modular piece in larger setups, while still delivering the durability and performance needed for professional results.
Assembly is quick and straightforward with the included connection kit and fast connection system, ensuring secure setups without the need for additional tools. This truss is fully compatible with the cell 130 series and Xtruss accessories, allowing for seamless integration into existing systems and endless customization options. Its impressive free-span characteristics mean it can span distances without additional support, making it ideal for open, creative designs.
Whether you’re building a sleek display or a standout booth, the M222 Quatro 2.46 ft Length Truss combines performance, ease of use, and aesthetic appeal in one compact solution.
Key Benefits
- 2.46 ft Length: Ideal for a wide range of applications, from small displays to larger setups.
- Lightweight & Strong: Easy to transport and handle while offering outstanding weight-loading capabilities.
- Quick Assembly: Fast connection system and included connection kit for secure, hassle-free setups.
- Modular Flexibility: Compatible with M222 components, cell 130 series, and Xtruss accessories.
- Impressive Span: Covers distances without extra support.
The black version features a sleek, modern finish achieved through powder coating. This process not only enhances its visual appeal but also provides exceptional durability. The rich, deep black color adds a touch of elegance, while the powder coating ensures a smooth, uniform surface that’s resistant to chipping, scratching, and fading. This protective layer helps extend the life of the product, making it a smart choice for both style and longevity. Additionally, powder coating is an eco-friendly option, as it avoids the use of solvents and minimizes waste, aligning with sustainable practices.
M222 Quatro Loading Chart
| Span | Unit | 6.56 ft (2.00 m) |
9.84 ft (3.00 m) |
13.12 ft (4.00 m) |
16.40 ft (5.00 m) |
19.69 ft (6.00 m) |
22.97 ft (7.00 m) |
26.25 ft (8.00 m) |
|---|---|---|---|---|---|---|---|---|
| Centre Point Load (CPL) | lbs (kg) | 822.32 (373.00) |
639.34 (290.00) |
515.88 (234.00) |
427.70 (194.00) |
359.35 (163.00) |
310.85 (141.00) |
269.40 (122.20) |
| Deflection | in (mm) | 0.07 (1.70) |
0.17 (4.40) |
0.33 (8.50) |
0.55 (14.00) |
0.81 (20.60) |
1.13 (28.70) |
1.50 (38.10) |
| Third Point Load (TPL) | lbs (kg) | 570.78 (258.90) |
414.47 (188.00) |
343.92 (156.00) |
293.21 (133.00) |
255.74 (116.00) |
222.67 (101.00) |
196.21 (89.00) |
| Deflection | in (mm) | 0.08 (2.00) |
0.19 (4.90) |
0.38 (9.70) |
0.64 (16.20) |
0.97 (24.70) |
1.37 (34.80) |
1.83 (46.40) |
| Quarter Point Load (QPL) | lbs (kg) | 380.52 (172.60) |
317.47 (144.00) |
275.58 (125.00) |
224.65 (101.90) |
184.97 (83.90) |
156.53 (71.00) |
134.70 (61.10) |
| Deflection | in (mm) | 0.07 (1.80) |
0.20 (5.20) |
0.42 (10.70) |
0.68 (17.30) |
0.98 (25.00) |
1.34 (34.10) |
1.76 (44.60) |
| Fifth Point Load (FPL) | lbs (kg) | 285.50 (129.50) |
262.35 (119.00) |
224.87 (102.00) |
182.98 (83.00) |
154.10 (69.90) |
130.29 (59.10) |
112.22 (50.90) |
| Deflection | in (mm) | 0.07 (1.80) |
0.21 (5.40) |
0.44 (11.10) |
0.71 (18.00) |
1.04 (26.40) |
1.42 (36.00) |
1.85 (47.10) |
| Uniformly Distributed Load (UDL) | lbs/ft (kg/m) | 173.97 (258.90) |
115.51 (171.90) |
86.28 (128.40) |
54.77 (81.50) |
37.63 (56.00) |
27.28 (40.60) |
20.56 (30.60) |
| Deflection | in (mm) | 0.06 (1.50) |
0.19 (4.90) |
0.46 (11.60) |
0.72 (18.20) |
1.03 (26.20) |
1.41 (35.80) |
1.84 (46.80) |
All truss loading calculations are based on:
Truss supported or suspended at both ends • Static loading only • Loads applied at the node points • Self-weight of the truss is included in all listed load capacities • Spans consisting of different truss lengths • Interaction of bending moment and shear force at connector is considered • Structural analysis based on EN 1999 • All loading data should be multiplied by 0.85 to comply with BS 7905-2 and ANSI E1.2-2006 • For any other application, or in case of an assembled structure, contact MILOS or a structural engineer • Safety factors used: self-weight 1.35 / variable loads 1.5
