M222 quatro 1.64 ft Aluminum Truss - Black
Available to ship in: 10 days
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us

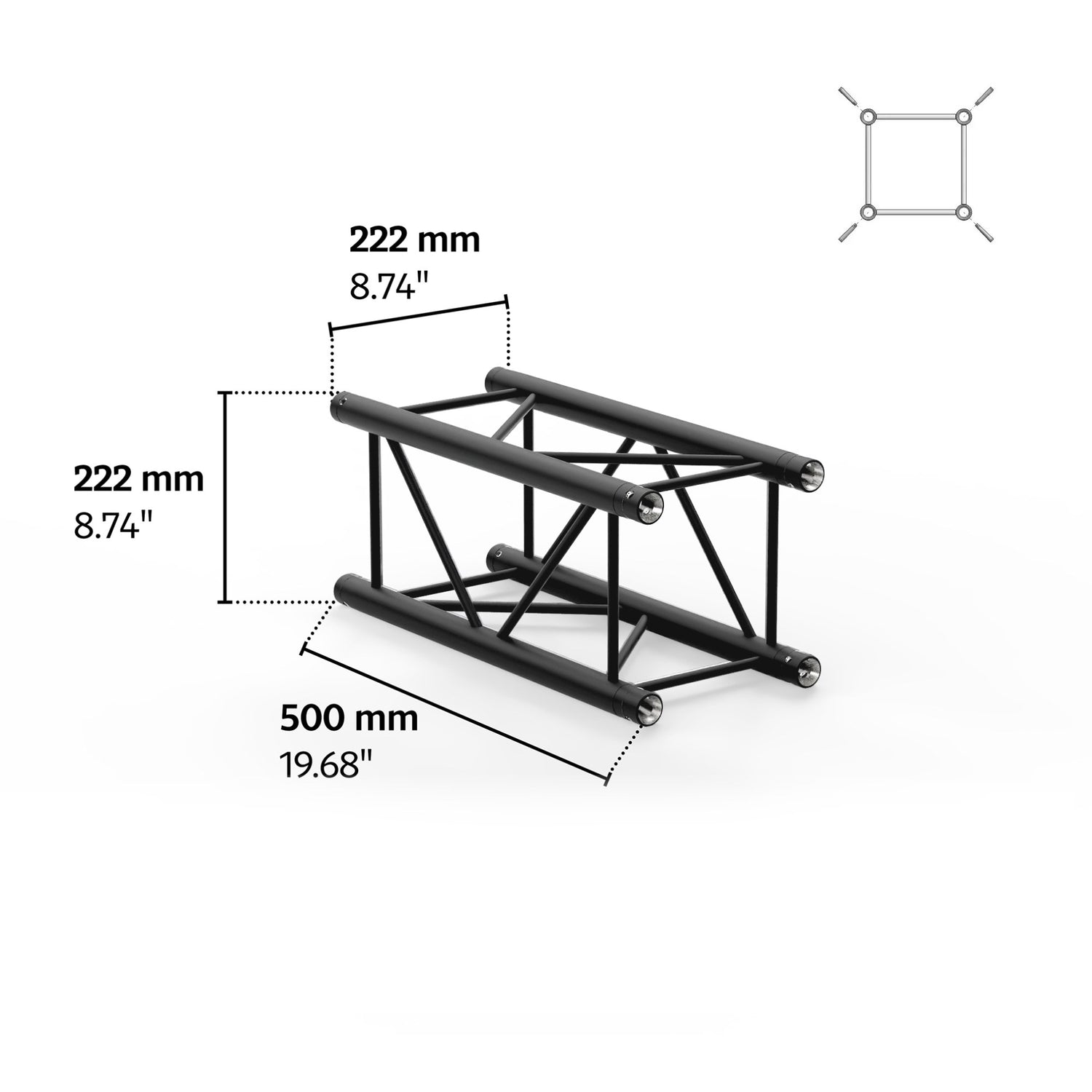

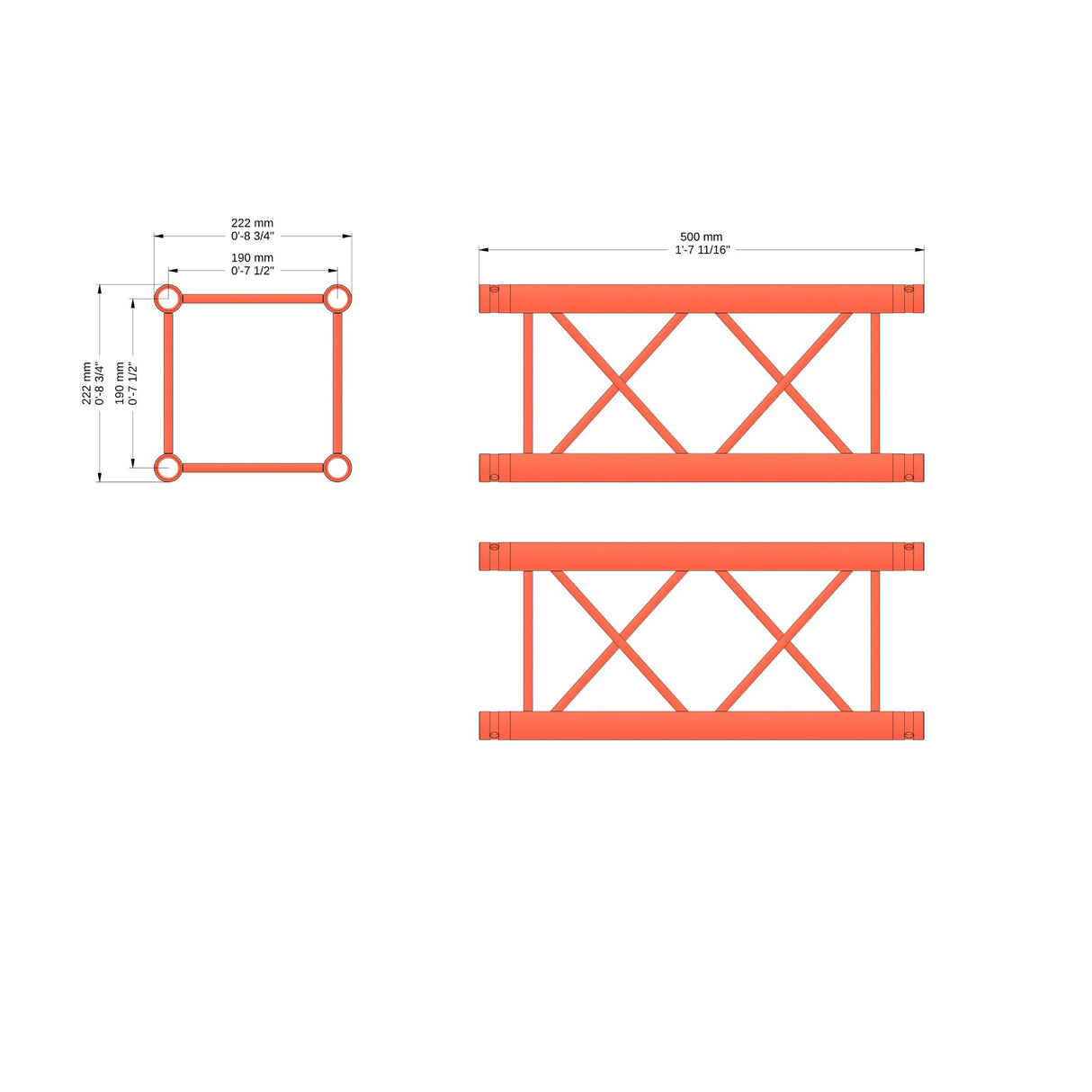

The M222 Quatro 1.64 ft Length Truss is a standout in the M222 system, delivering exceptional weight-loading capabilities in a compact, lightweight package. Designed for versatility, this truss is perfect for retail displays, trade show booths, and decorative applications where precision and portability are key. Its small size makes it an excellent choice for tight spaces or as a modular component in larger setups, all while maintaining the strength and durability you need for professional results.
Assembly is a breeze with the included connection kit and fast connection system, ensuring quick, secure setups without the hassle. Compatible with cell 130 series and Xtruss accessories, this truss integrates seamlessly into existing systems, offering endless customization options. Plus, its impressive free-span characteristics mean it can span distances without additional support, making it ideal for open, creative designs. A powder coat finish is available as an option.
Whether you’re building a sleek display or a standout booth, the M222 Quatro 1.64 ft Length Truss combines performance, ease of use, and style in one compact solution. Call or email us today for more information or to request a quote!
Key Benefits
- Compact 1.64 ft Length: Perfect for precise setups or smaller applications.
- Lightweight Design: Easy to transport and store without sacrificing strength.
- Strong & Reliable: Outstanding weight-loading capabilities for its size.
- Quick & Simple Assembly: Fast connection system and included connection kit.
- Modular Flexibility: Compatible with M222 components, cell 130 series, and Xtruss accessories.
- Impressive Span: Covers distances without extra support.
The black version features a sleek, modern finish achieved through powder coating. This process not only enhances its visual appeal but also provides exceptional durability. The rich, deep black color adds a touch of elegance, while the powder coating ensures a smooth, uniform surface that’s resistant to chipping, scratching, and fading. This protective layer helps extend the life of the product, making it a smart choice for both style and longevity. Additionally, powder coating is an eco-friendly option, as it avoids the use of solvents and minimizes waste, aligning with sustainable practices.
Specifications
Specifications
-
Truss type
-
Coupler
-
Alloy
-
Span
-
Size
-
Braces
-
Main Tube
-
Length (ft)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The M222 Quatro 1.64 ft Length Truss is a standout in the M222 system, delivering exceptional weight-loading capabilities in a compact, lightweight package. Designed for versatility, this truss is perfect for retail displays, trade show booths, and decorative applications where precision and portability are key. Its small size makes it an excellent choice for tight spaces or as a modular component in larger setups, all while maintaining the strength and durability you need for professional results.
Assembly is a breeze with the included connection kit and fast connection system, ensuring quick, secure setups without the hassle. Compatible with cell 130 series and Xtruss accessories, this truss integrates seamlessly into existing systems, offering endless customization options. Plus, its impressive free-span characteristics mean it can span distances without additional support, making it ideal for open, creative designs. A powder coat finish is available as an option.
Whether you’re building a sleek display or a standout booth, the M222 Quatro 1.64 ft Length Truss combines performance, ease of use, and style in one compact solution. Call or email us today for more information or to request a quote!
Key Benefits
- Compact 1.64 ft Length: Perfect for precise setups or smaller applications.
- Lightweight Design: Easy to transport and store without sacrificing strength.
- Strong & Reliable: Outstanding weight-loading capabilities for its size.
- Quick & Simple Assembly: Fast connection system and included connection kit.
- Modular Flexibility: Compatible with M222 components, cell 130 series, and Xtruss accessories.
- Impressive Span: Covers distances without extra support.
The black version features a sleek, modern finish achieved through powder coating. This process not only enhances its visual appeal but also provides exceptional durability. The rich, deep black color adds a touch of elegance, while the powder coating ensures a smooth, uniform surface that’s resistant to chipping, scratching, and fading. This protective layer helps extend the life of the product, making it a smart choice for both style and longevity. Additionally, powder coating is an eco-friendly option, as it avoids the use of solvents and minimizes waste, aligning with sustainable practices.
M222 Quatro Loading Chart
| Span | Unit | 6.56 ft (2.00 m) |
9.84 ft (3.00 m) |
13.12 ft (4.00 m) |
16.40 ft (5.00 m) |
19.69 ft (6.00 m) |
22.97 ft (7.00 m) |
26.25 ft (8.00 m) |
|---|---|---|---|---|---|---|---|---|
| Centre Point Load (CPL) | lbs (kg) | 822.32 (373.00) |
639.34 (290.00) |
515.88 (234.00) |
427.70 (194.00) |
359.35 (163.00) |
310.85 (141.00) |
269.40 (122.20) |
| Deflection | in (mm) | 0.07 (1.70) |
0.17 (4.40) |
0.33 (8.50) |
0.55 (14.00) |
0.81 (20.60) |
1.13 (28.70) |
1.50 (38.10) |
| Third Point Load (TPL) | lbs (kg) | 570.78 (258.90) |
414.47 (188.00) |
343.92 (156.00) |
293.21 (133.00) |
255.74 (116.00) |
222.67 (101.00) |
196.21 (89.00) |
| Deflection | in (mm) | 0.08 (2.00) |
0.19 (4.90) |
0.38 (9.70) |
0.64 (16.20) |
0.97 (24.70) |
1.37 (34.80) |
1.83 (46.40) |
| Quarter Point Load (QPL) | lbs (kg) | 380.52 (172.60) |
317.47 (144.00) |
275.58 (125.00) |
224.65 (101.90) |
184.97 (83.90) |
156.53 (71.00) |
134.70 (61.10) |
| Deflection | in (mm) | 0.07 (1.80) |
0.20 (5.20) |
0.42 (10.70) |
0.68 (17.30) |
0.98 (25.00) |
1.34 (34.10) |
1.76 (44.60) |
| Fifth Point Load (FPL) | lbs (kg) | 285.50 (129.50) |
262.35 (119.00) |
224.87 (102.00) |
182.98 (83.00) |
154.10 (69.90) |
130.29 (59.10) |
112.22 (50.90) |
| Deflection | in (mm) | 0.07 (1.80) |
0.21 (5.40) |
0.44 (11.10) |
0.71 (18.00) |
1.04 (26.40) |
1.42 (36.00) |
1.85 (47.10) |
| Uniformly Distributed Load (UDL) | lbs/ft (kg/m) | 173.97 (258.90) |
115.51 (171.90) |
86.28 (128.40) |
54.77 (81.50) |
37.63 (56.00) |
27.28 (40.60) |
20.56 (30.60) |
| Deflection | in (mm) | 0.06 (1.50) |
0.19 (4.90) |
0.46 (11.60) |
0.72 (18.20) |
1.03 (26.20) |
1.41 (35.80) |
1.84 (46.80) |
All truss loading calculations are based on:
Truss supported or suspended at both ends • Static loading only • Loads applied at the node points • Self-weight of the truss is included in all listed load capacities • Spans consisting of different truss lengths • Interaction of bending moment and shear force at connector is considered • Structural analysis based on EN 1999 • All loading data should be multiplied by 0.85 to comply with BS 7905-2 and ANSI E1.2-2006 • For any other application, or in case of an assembled structure, contact MILOS or a structural engineer • Safety factors used: self-weight 1.35 / variable loads 1.5
