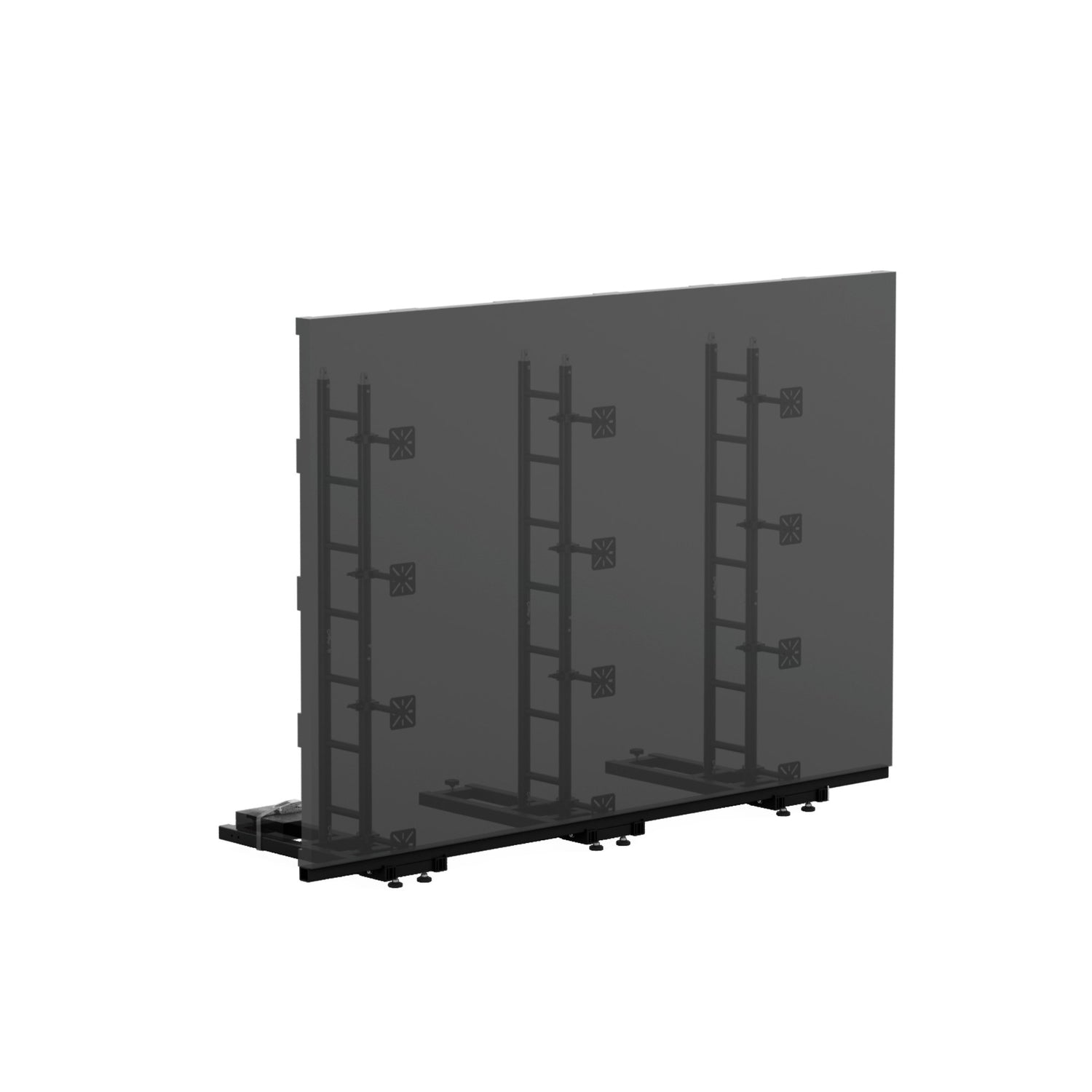

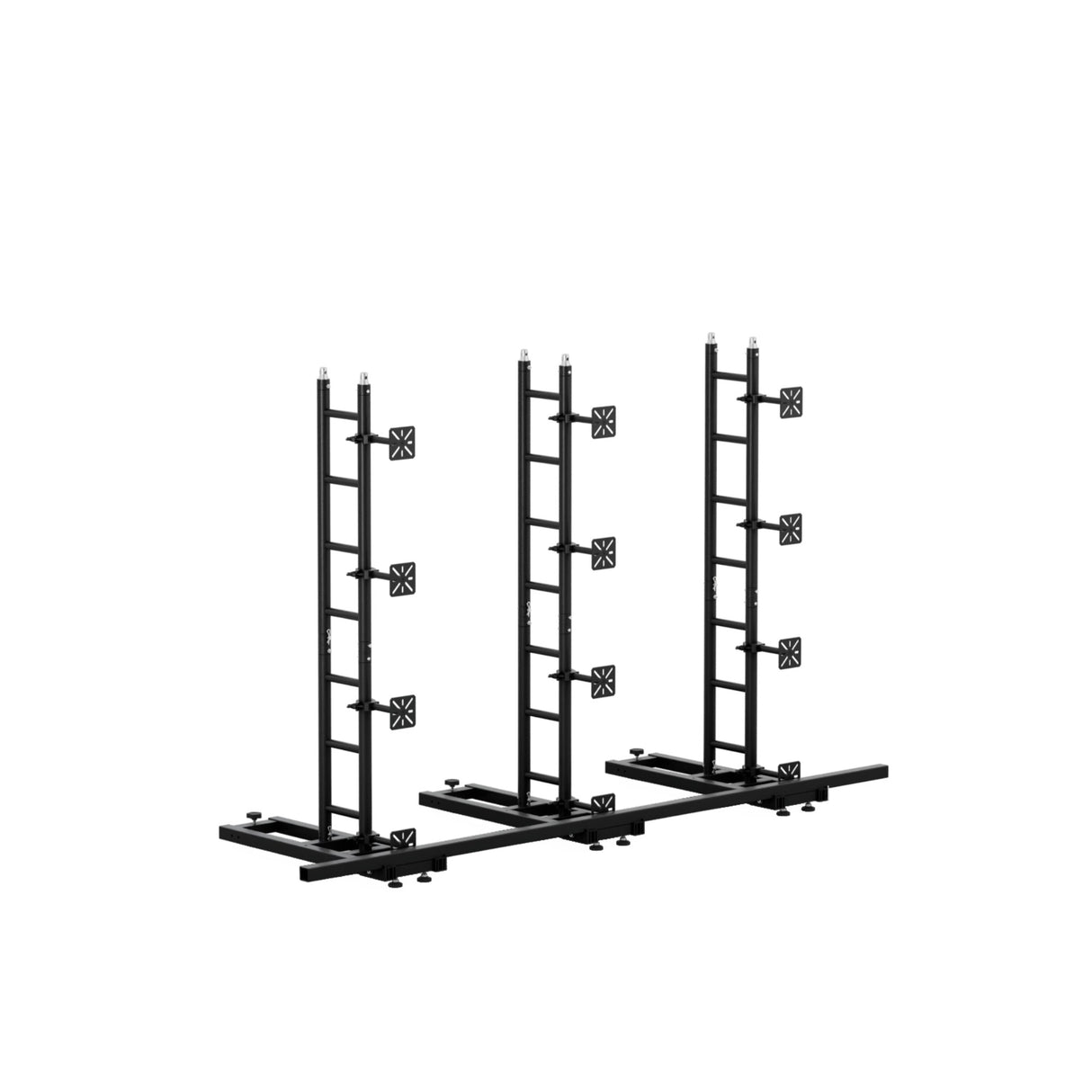

The LSU System 3x2 Meter (9.84' x 6.56') Ground Stack Set from Prolyte is a universal aluminum support solution designed for safely building LED video walls from ground level, accommodating panels from various manufacturers.
This pre-configured set supports a 3-meter wide by 2-meter high configuration, using a combination of base units, connection bars, and ladder trusses to create a stable, level structure for indoor events, stages, or exhibitions. It features quick-mount side entry clamps with universal connection plates for easy attachment of standard LED modules (such as 50x50 cm or 50x100 cm sizes), ensuring compatibility across brands while prioritizing user safety and straightforward assembly. Ideal for truss professionals rigging dynamic displays or venue teams seeking reliable, modular LED support without complex tools.
Key Features
- Universal LED Compatibility: Works with nearly any LED panel type via side entry clamps and universal connection plates; adapters (PC-LSU-ADAP-03-RAL9005) support M8-M10-M12 bolts for secure, tool-free mounting.
- Stable 3x2m (9.84' x 6.56') Configuration: Supports screens up to 3 m wide and 2 m high, extendable with additional rows using connection bars; maximum system height reaches 4 m without lateral stabilization when properly ballasted.
- Metric Sizes Match Metric LED Panels: Attachment points designed to be compatiblie with most metric LED panels.
- Leveling and Stability: Equipped with adjustable M12 spindles on base units for precise leveling; requires ballast (approximately 17 kg per meter for 2 m height) to prevent tipping, distributed across base units.
- Durable Aluminum Construction: Made from high-grade aluminum profiles (50x50 mm base and connection bars, 30x3 mm ladder truss bracing) with a standard black RAL9005 coating for corrosion resistance and professional aesthetics in indoor environments.
- Quick Assembly: Uses CCS6 conical coupling system for fast connections; the modular design allows easy expansion or reconfiguration, compatible with Prolyte's H40R, H40V-MB, or S52SV-MB truss for suspension options if needed.
Product parts:
- 2 x PL-PC-LSU-CONNB-L150-RAL9005
- 3 x PL-PC-LSU-BASE-L100-RAL9005
- 3 x PL-PC-LSU-30L-L75-RAL9005
- 3 x PL-PC-LSU-30L-L100-RAL9005
- 9 x PL-PC-LSU-ADAP-03-RAL9005
- 12 x PL-CCS6-603
- 12 x PL-CCS6-605
