LSG1 LED Screen Support Structure
Contact us

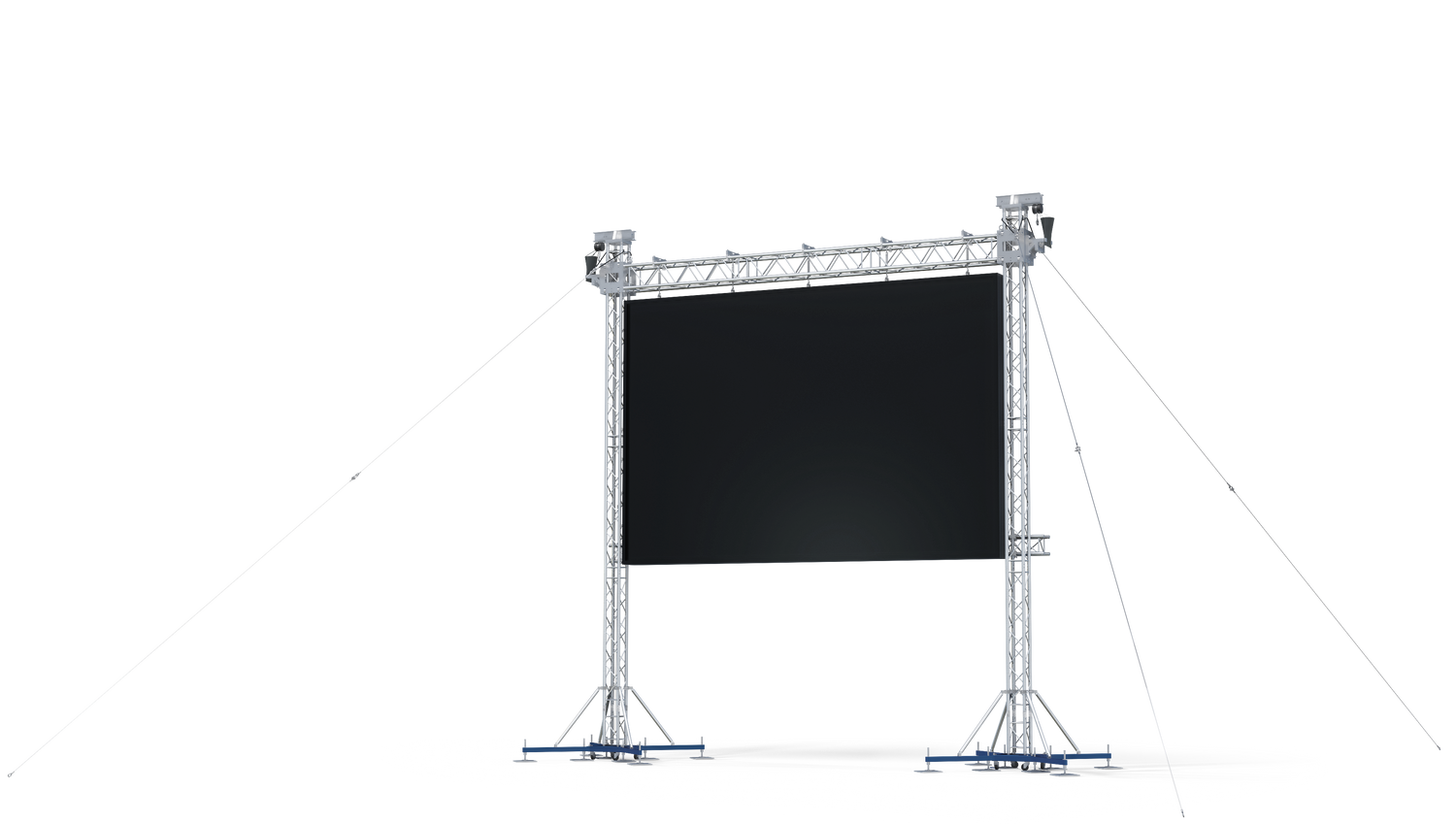

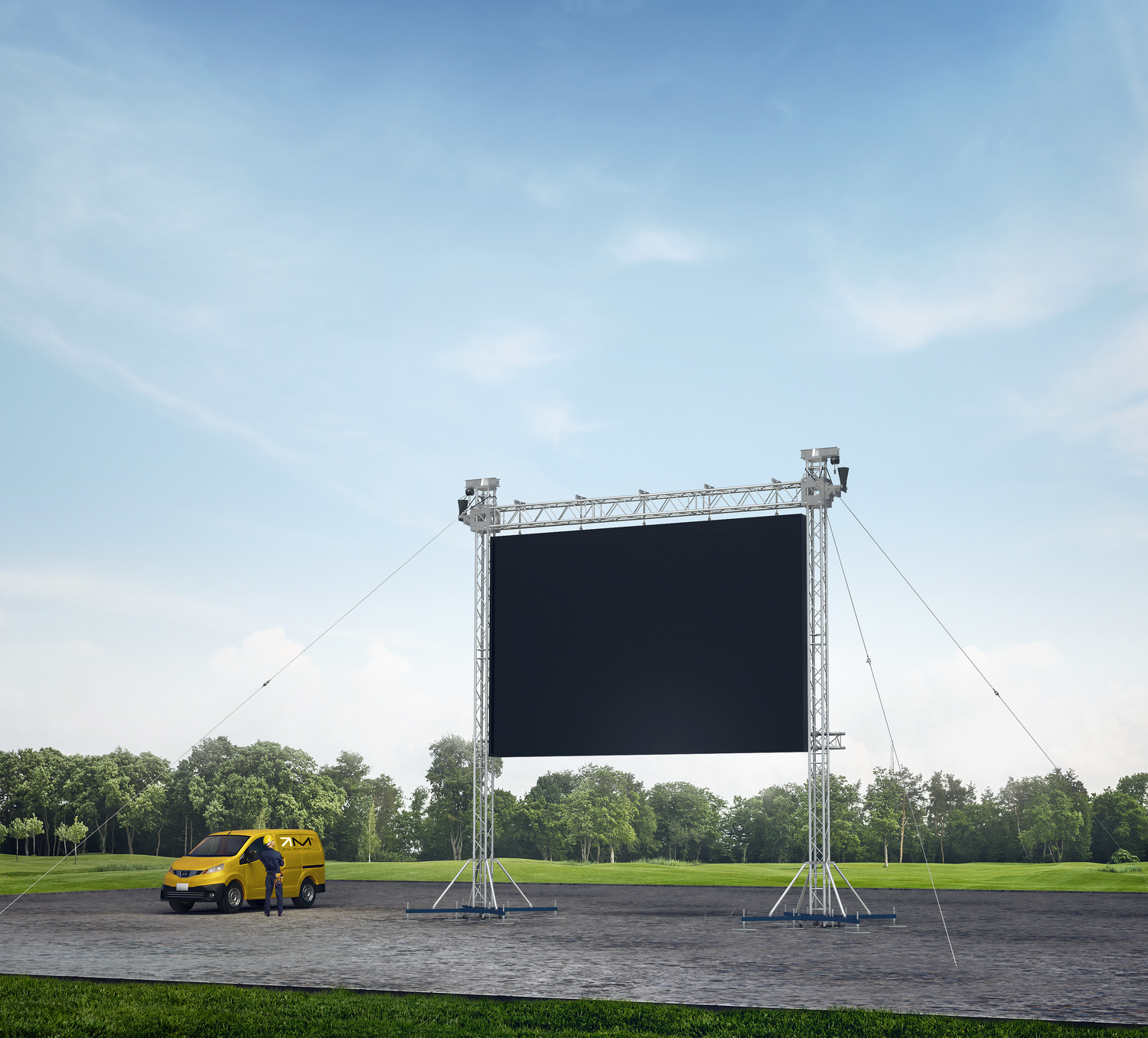

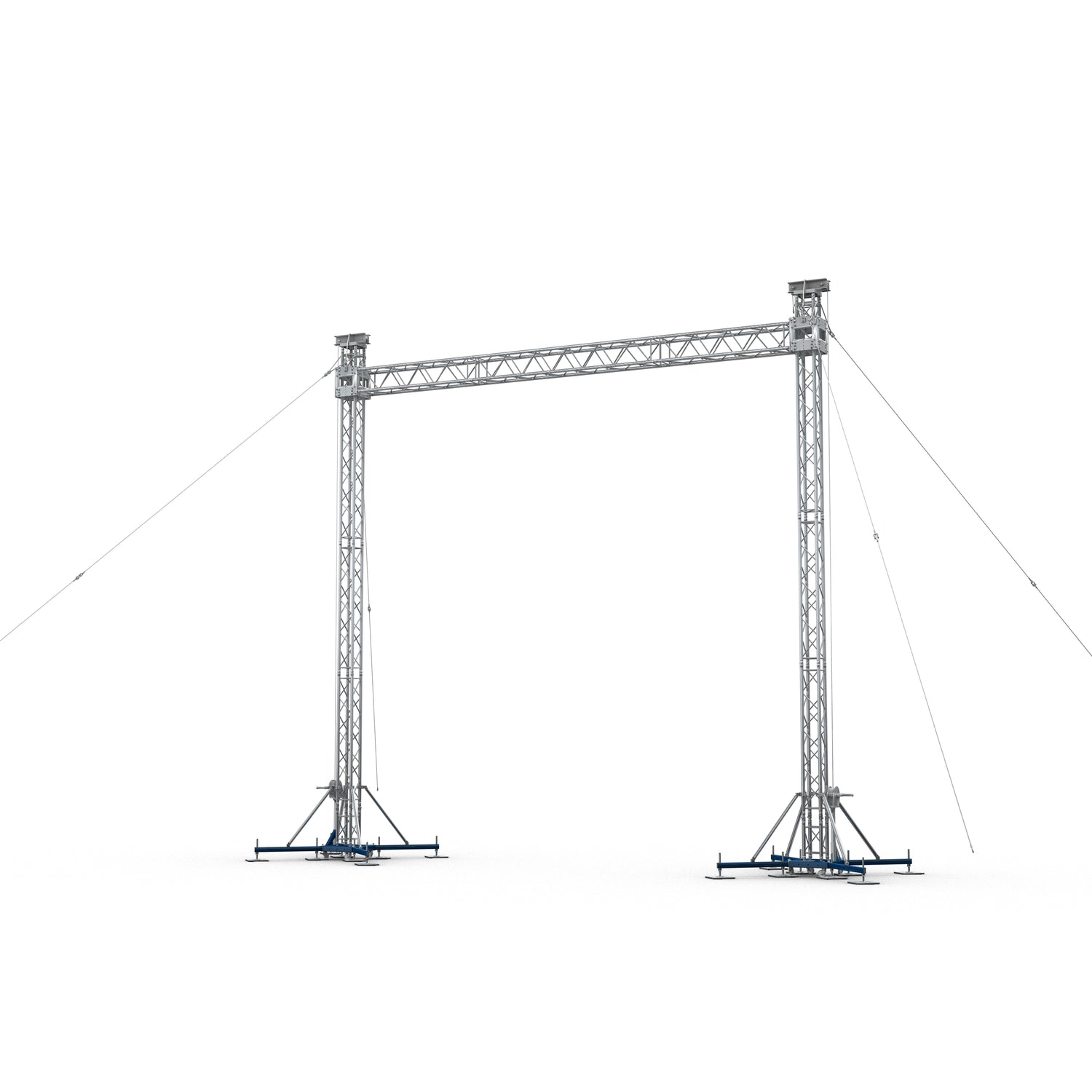

The LSG1-MT1-QTL-7,5x7,5m is a compact and cost-effective LED screen support tower from the Milos LSG1 series**, featuring self-climbing MT1 towers with integrated ballast platforms for quick, simple, and secure assembly. This ground-supported structure works indoors or outdoors and reliably holds screens up to 7.5 x 7.5 m (24.download 24.60 x 24.60 ft) with a maximum total load of 2500 kg (5511 lbs) distributed as four point loads of 625 kg (1377 lbs) each. It suits events, concerts, or exhibitions needing fast setup and stability—ideal for truss professionals seeking efficient rigging or those new to LED wall supports wanting a straightforward, entry-level tower system.
Key Features
- MT1 Self-Climbing Towers: Equipped with electric or manual hoists for safe and easy screen lifting during assembly.
- Fast Connection System: Enables quick, simple, and secure buildup with minimal tools, reducing setup time on site.
- Guy Wire Stabilization: Includes connection points and necessary guy wires for wind resistance up to 28 m/s (100 km/h / 62 mph).
- Integrated Ballast Platform: Requires 4 x 2160 kg (4757 lbs) per outrigger end (on screwjack to timber spreader to rubber to concrete/asphalt) for excellent stability.
- Professional Standards: Built to DIN EN 13814, DIN 1055-4, DIN 4113, DIN 18800, and EN 1090 EXC2; includes engineering report, instruction manual, and guy wires.
- Custom Options: Powder coat color finish available on request; customizable truss configuration or dimensions to fit specific screen requirements.
- Self-Weight: Approximately 850 kg (1874 lbs) (depends on exact configuration).
- Transport Volume: 8 m³ (282 ft³) (packed in carton boxes and bubble foil).
Dimensions
| Dimension | Metric | Imperial |
|---|---|---|
| LED screen size | 7.5 × 7.5 m | 24.60 × 24.60 ft |
| A Internal width | 7.65 m | 25.09 ft |
| B External width | 9.99 m | 32.78 ft |
| C Width set-up area incl. guy wires | 19.75 m | 64.80 ft |
| D Depth set-up area incl. guy wires | 16.10 m | 52.82 ft |
| E Clearance | 7.00 m | 22.96 ft |
| F Overall height | 8.05 m | 26.41 ft |
