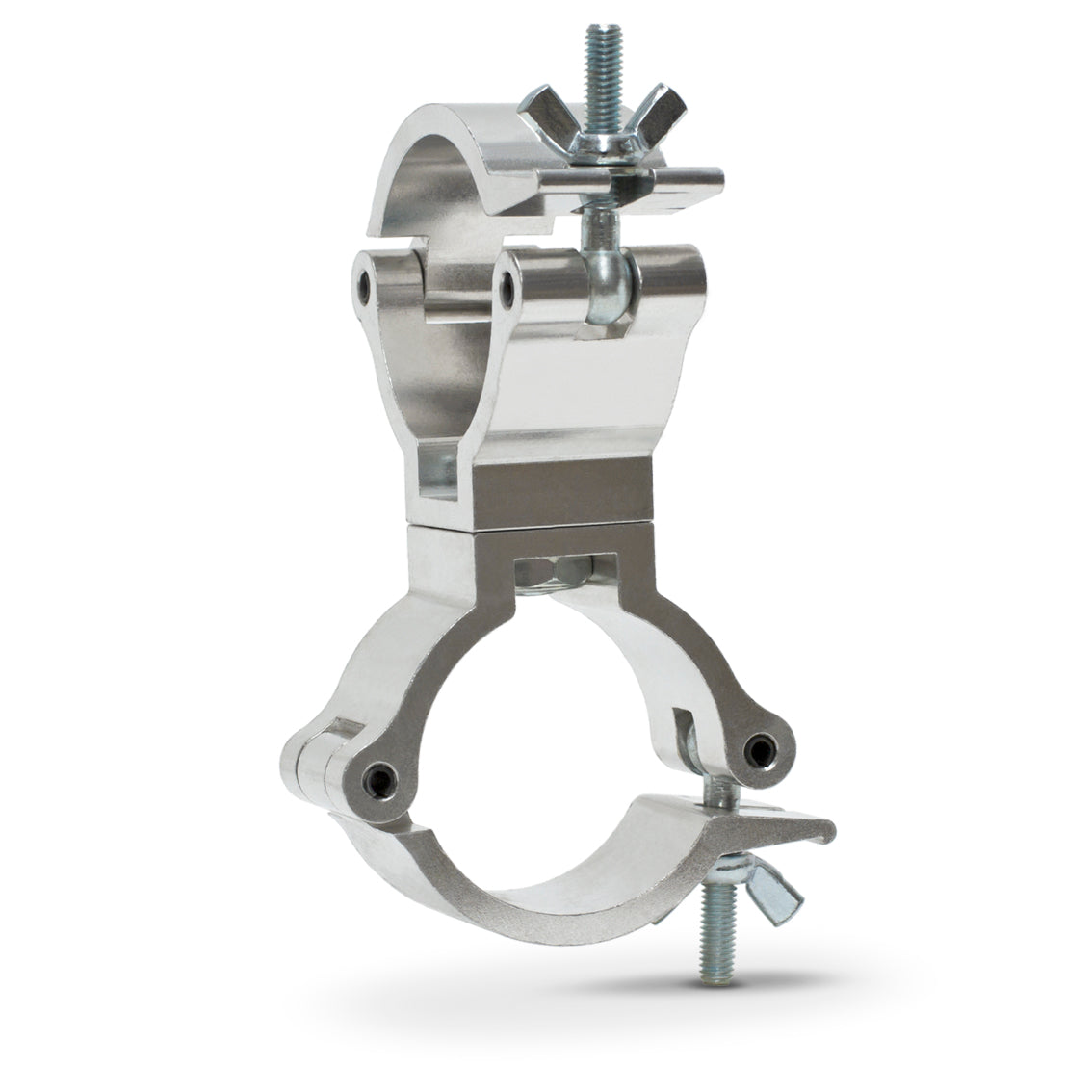

The Cell504 Swivel Coupler is a high-performance rigging solution featuring a set of two clamps designed to connect 48-51mm (1 7/8''-2'') diameter tubes with full 360° rotation. This innovative design offers exceptional flexibility, making it perfect for exhibitions, displays, and light-duty applications. Constructed from precision extruded ultra-high tensile aluminium alloy, the Cell504 combines lightweight durability with superior strength, ensuring reliable performance in a variety of setups. With a DGUV17/BGV C1 rating, it meets rigorous safety standards, and its supplied M6 bolt and wingnut enable fast, tool-free assembly for quick and secure installations.

Engineered for versatility, the Cell504 Swivel Coupler is compatible with an extensive range of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, making it an adaptable choice for diverse projects. Its polished surface with micro-percussion markings provides a sleek, professional appearance, while powder-coated versions are available on request for a customized look. Boasting a safe working load (SWL) of 230kg (SF8:1) under DGUV17/BGV C1 and SWL of 115kg (SF4:1) per 2006/42/EC, this coupler delivers robust performance for both small-scale and demanding applications.

Key Features

• For 48-51mm (1 7/8''-2'') Tubes: Precision fit for standard truss diameters.

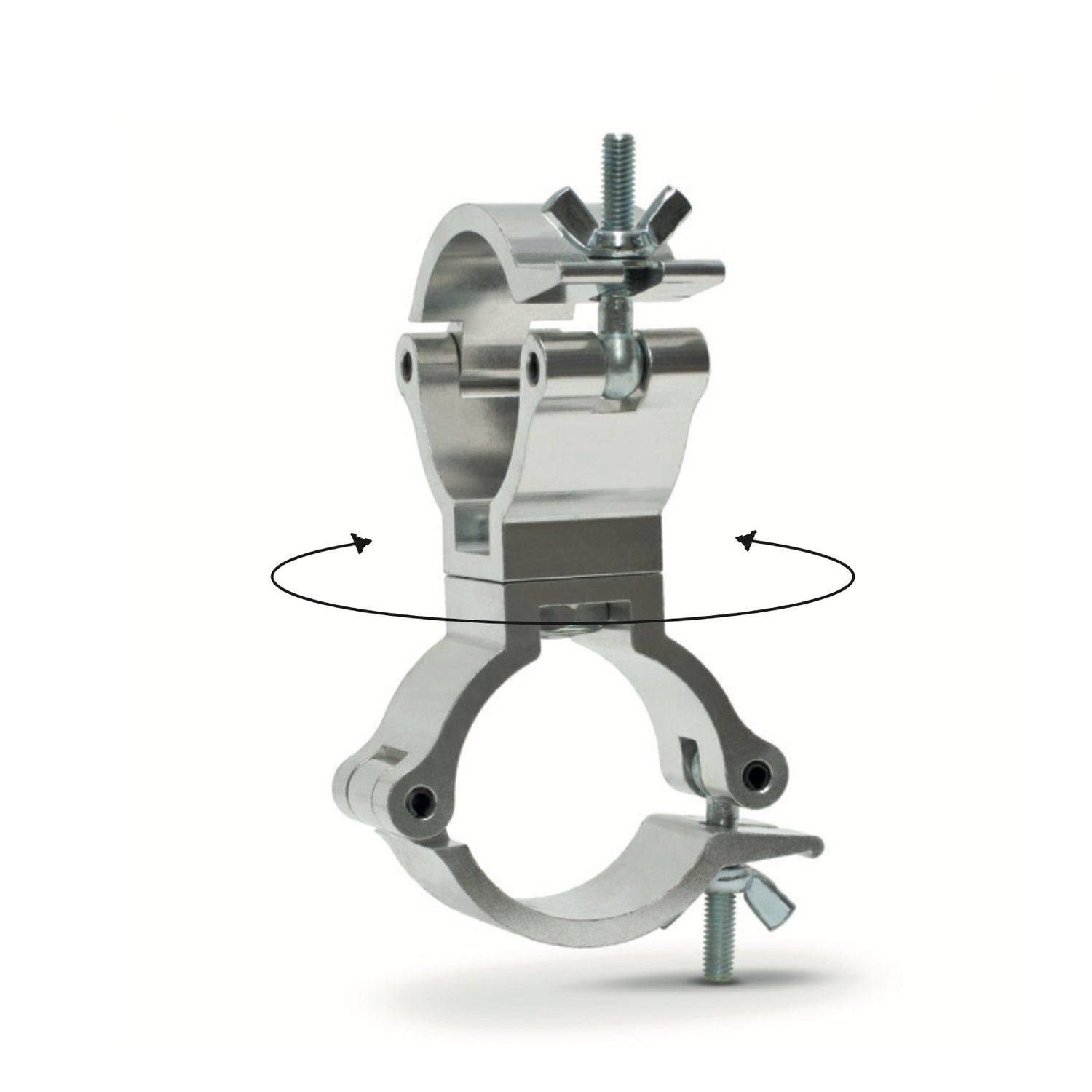

• 360° Swivel Clamps: Two rotating clamps for flexible tube connections.
• Ultra-High Tensile Aluminium: Lightweight and exceptionally strong.
• Tool-Free Setup: Includes M6 bolt and wingnut for easy installation.
• Wide Compatibility: Works with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62 trusses.
• Safety Certified: DGUV17/BGV C1 rated for professional reliability.
• Premium Finish: Polished with micro-percussion markings; powder-coated options available.
• Mounting Flexibility: Features a hole for up to 10.5mm bolts.
• Load Capacity: SWL 230kg (SF8:1) per DGUV17/BGV C1; SWL 115kg (SF4:1) per 2006/42/EC.
