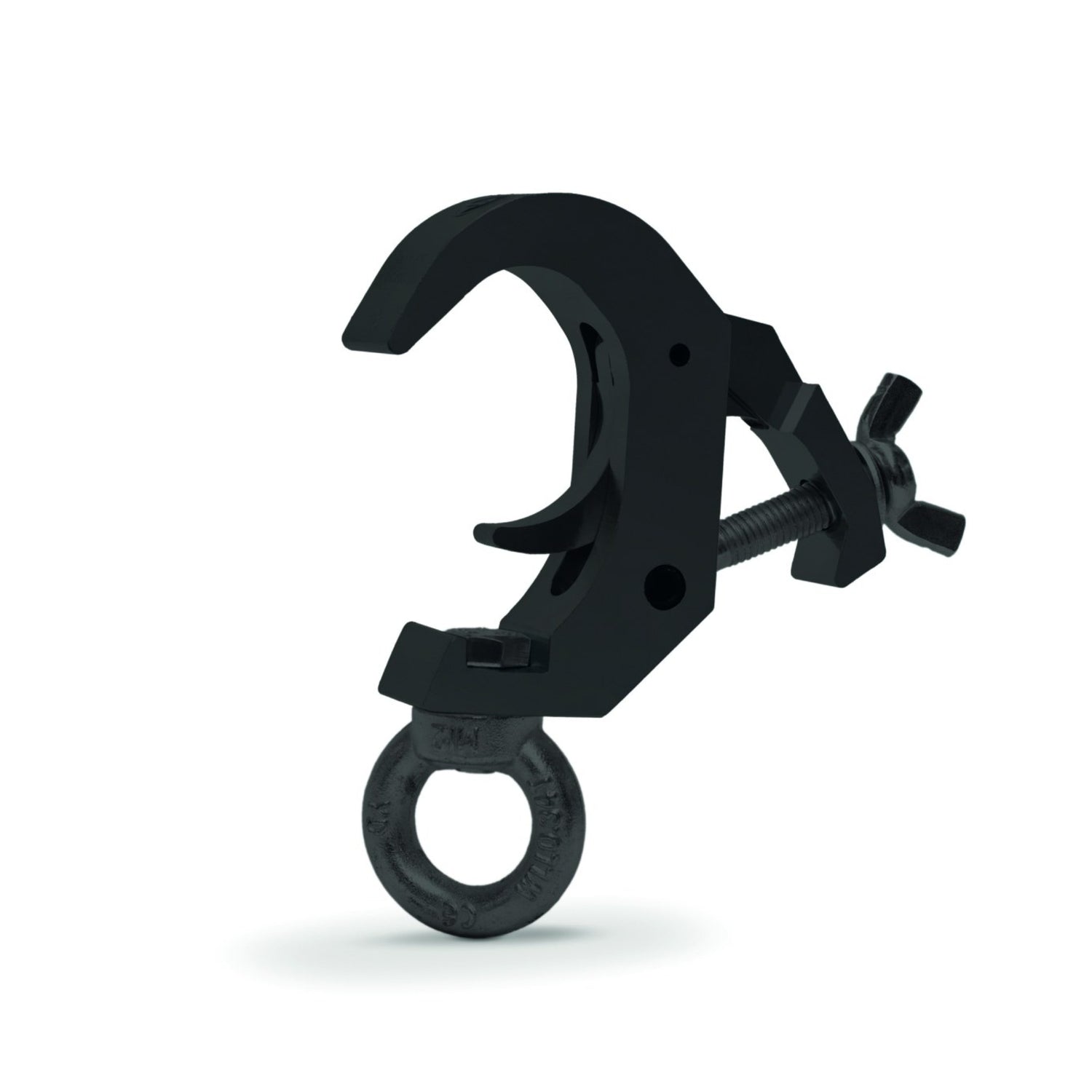

Quick truss clamp with lifting eye-SWL 360kg (794lbs) (SF8:1) for 38-51mm (1 1/2"-2") tube Anodized
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us
The CELL403 Black Anodized, part of the CELL400 series, is a premium quick clamp engineered for professionals requiring a reliable attachment solution. Designed specifically for 38-51mm (1 1/2''-2'') diameter tubes, this clamp features a quick hook design for easy attachment, particularly suitable for moving heads, and includes a steel eye for rope or cable securing. Crafted from precision extruded high tensile aluminium alloy with a sleek black anodized finish achieved through an electrochemical process, it enhances durability and resistance to wear and corrosion while providing a professional aesthetic. It offers long-lasting performance in demanding environments, making it an essential tool for concerts, exhibitions, and structural installations. With a black anodized surface featuring micro-percussion markings, it delivers a modern, polished look. Certified with DGUV 17 / BGV C1 rating and TÜV NORD tested, it boasts a safe working load (SWL) of 360kg (794 lbs) at an 8:1 safety factor under DGUV-17/BGV C1 and 720kg (1587 lbs) at a 4:1 safety factor under 2006/42/EC, ensuring dependable performance in demanding environments. This clamp works seamlessly with truss systems like M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, and is supplied with an M12 closing bolt and wingnut for secure fastening.
Key Features:
- Designed for 38-51mm (1 1/2''-2'') diameter tubes for precision fit
- High tensile aluminium alloy construction with black anodized finish and micro-percussion marking
- Quick hook design for easy attachment, ideal for moving heads
- Steel eye for rope or cable attachment
- Safe working load (SWL): 360kg (794 lbs) at SF 8:1 (DGUV 17 / BGV C1); 720kg (1587 lbs) at SF 4:1 (2006/42/EC)
- Safety certified: DGUV 17 / BGV C1 and TÜV NORD tested
- Compatible with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62 truss series
- Mounting hole up to 13mm (1/2") bolt
- Supplied with M12 closing bolt and wingnut for secure fastening
- Lightweight: Self-weight of 0.75 kg (1.65 lbs) for easy handling
- Black Anodized Finish: Durable, corrosion-resistant, and professionally sleek
- Professional Aesthetic: Black anodized for a modern, polished look
- Ideal for concerts, exhibitions, and structural installations
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The CELL403 Black Anodized, part of the CELL400 series, is a premium quick clamp engineered for professionals requiring a reliable attachment solution. Designed specifically for 38-51mm (1 1/2''-2'') diameter tubes, this clamp features a quick hook design for easy attachment, particularly suitable for moving heads, and includes a steel eye for rope or cable securing. Crafted from precision extruded high tensile aluminium alloy with a sleek black anodized finish achieved through an electrochemical process, it enhances durability and resistance to wear and corrosion while providing a professional aesthetic. It offers long-lasting performance in demanding environments, making it an essential tool for concerts, exhibitions, and structural installations. With a black anodized surface featuring micro-percussion markings, it delivers a modern, polished look. Certified with DGUV 17 / BGV C1 rating and TÜV NORD tested, it boasts a safe working load (SWL) of 360kg (794 lbs) at an 8:1 safety factor under DGUV-17/BGV C1 and 720kg (1587 lbs) at a 4:1 safety factor under 2006/42/EC, ensuring dependable performance in demanding environments. This clamp works seamlessly with truss systems like M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, and is supplied with an M12 closing bolt and wingnut for secure fastening.
Key Features:
- Designed for 38-51mm (1 1/2''-2'') diameter tubes for precision fit
- High tensile aluminium alloy construction with black anodized finish and micro-percussion marking
- Quick hook design for easy attachment, ideal for moving heads
- Steel eye for rope or cable attachment
- Safe working load (SWL): 360kg (794 lbs) at SF 8:1 (DGUV 17 / BGV C1); 720kg (1587 lbs) at SF 4:1 (2006/42/EC)
- Safety certified: DGUV 17 / BGV C1 and TÜV NORD tested
- Compatible with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62 truss series
- Mounting hole up to 13mm (1/2") bolt
- Supplied with M12 closing bolt and wingnut for secure fastening
- Lightweight: Self-weight of 0.75 kg (1.65 lbs) for easy handling
- Black Anodized Finish: Durable, corrosion-resistant, and professionally sleek
- Professional Aesthetic: Black anodized for a modern, polished look
- Ideal for concerts, exhibitions, and structural installations
