Quick truss clamp with bolt+wingnut-SWL 360kg (794lbs) (SF8:1) for 38-51mm (1 1/2"-2") tube - 10 pcs
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us

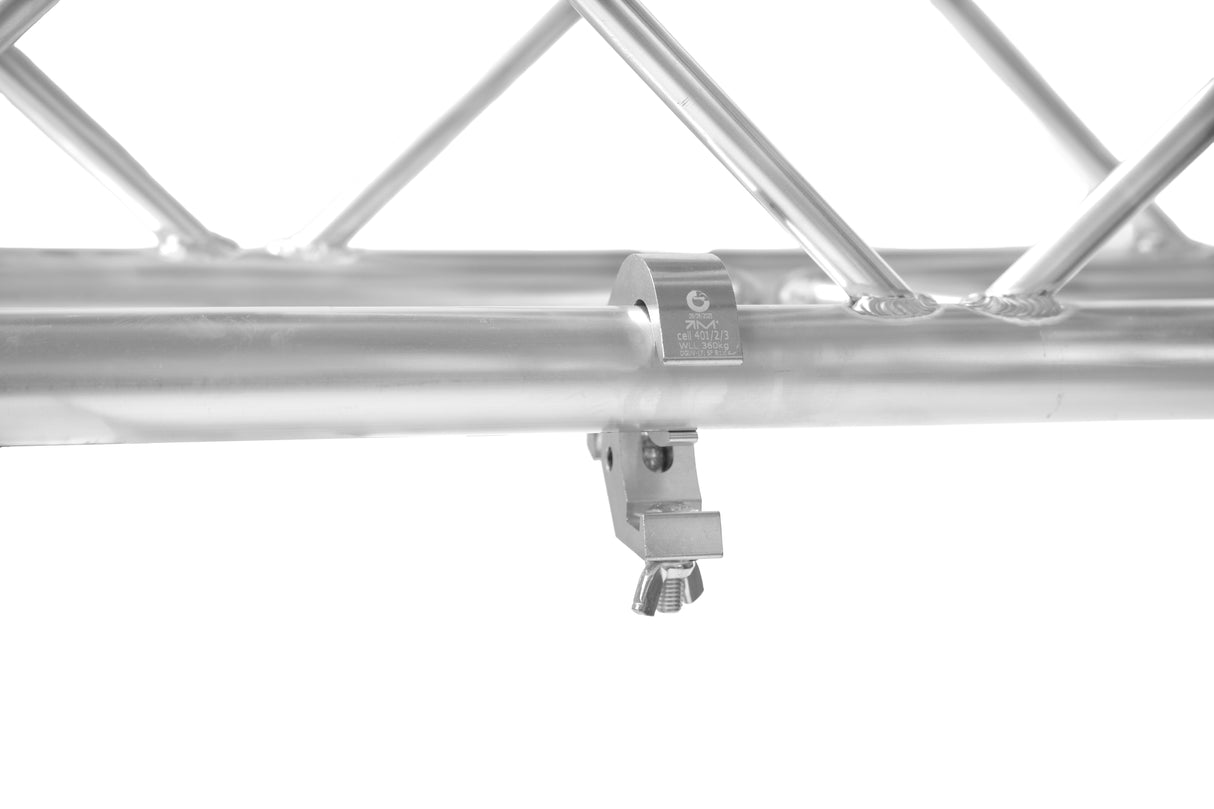

The Cell402 Quick Clamp with Bolt & Wingnut is a high-performance rigging solution crafted for professionals who prioritize speed, strength, and safety. Designed for 1 7/8""-2"" (48-51mm) diameter tubes, this clamp provides a fast and secure attachment method for moving heads and other equipment, making it perfect for stages, events, and installations. Built from precision extruded high tensile aluminium alloy, it offers a lightweight yet durable construction that withstands demanding environments. With a DGUV17/BGV C1 rating and a safe working load (SWL) of 360kg (794 lbs) at an 8:1 safety factor, it guarantees reliable performance. The included M12 x 35 bolt and wingnut ensure quick, tool-free assembly, enhancing efficiency on the job.
Versatile and reliable, the Cell402 Quick Clamp integrates seamlessly with a variety of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, offering flexibility for diverse rigging applications. Its polished surface with micro-percussion markings delivers a sleek, professional appearance, with powder-coated versions available upon request for customization. Featuring a mounting hole for bolts up to 13mm, it provides additional rigging adaptability. With an SWL of 360kg (794 lbs) at SF8:1 under DGUV17/BGV C1 and an impressive 720kg (1587 lbs) at SF4:1 under 2006/42/EC, this clamp is engineered to handle substantial loads with confidence.

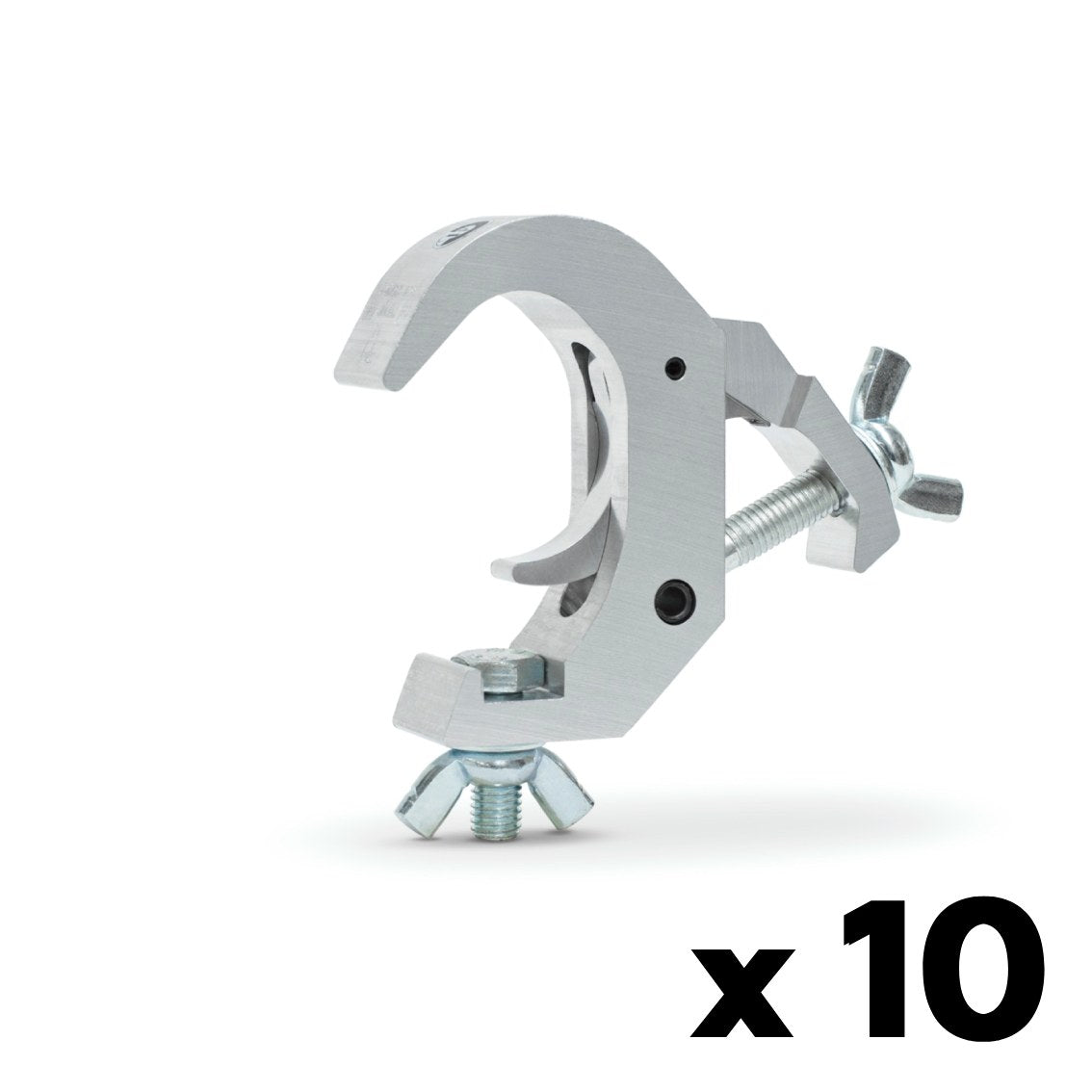

Package with 10 pcs
Key Features

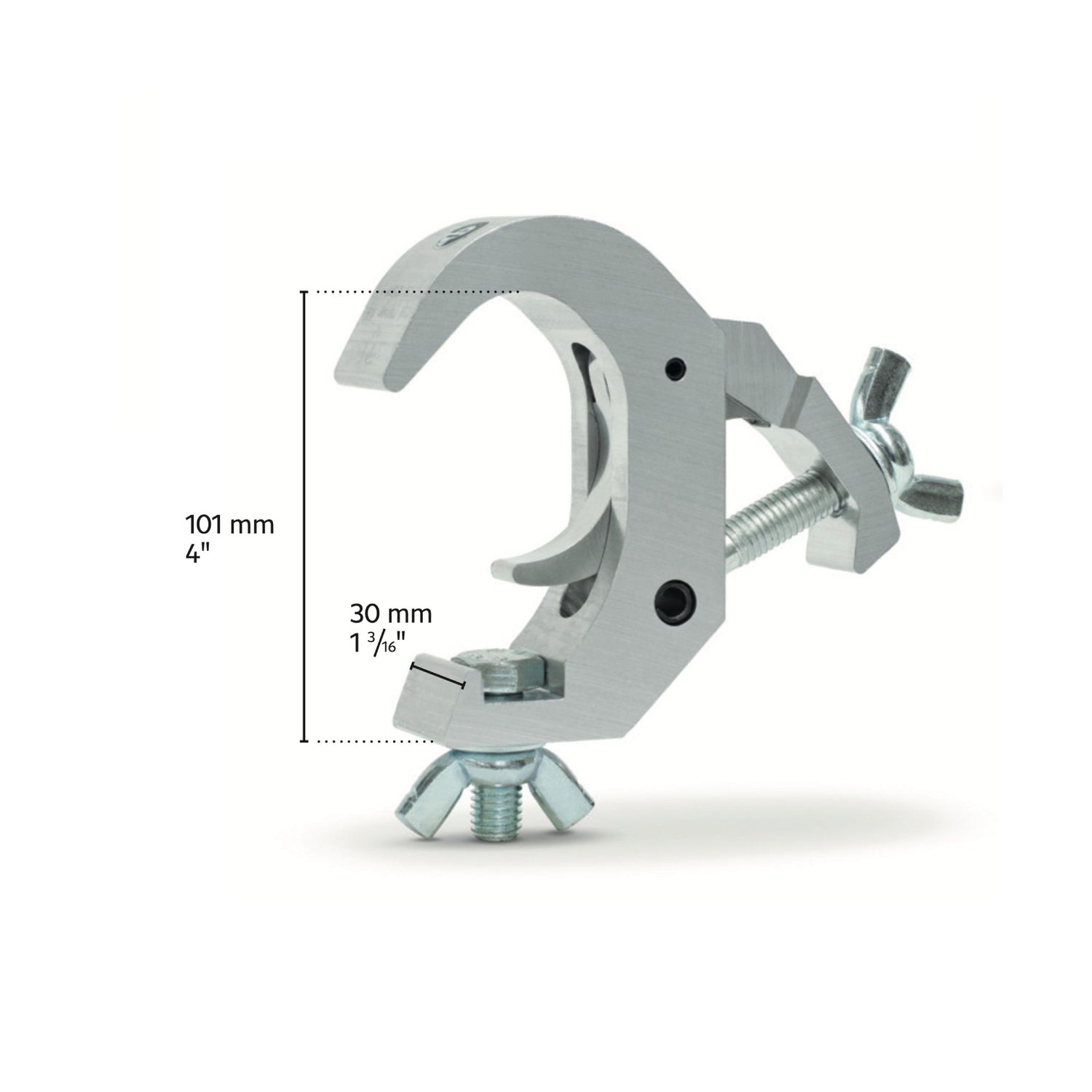

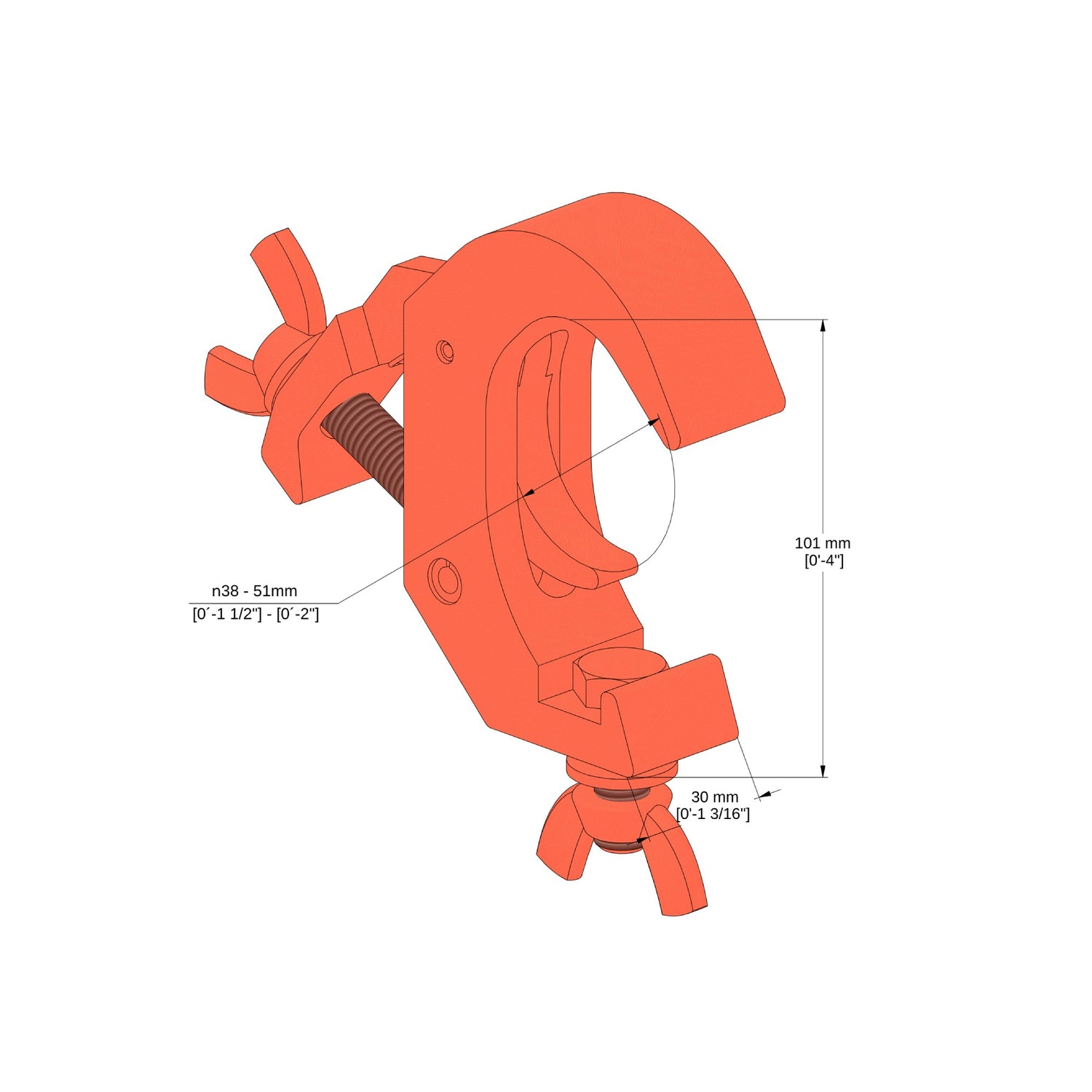

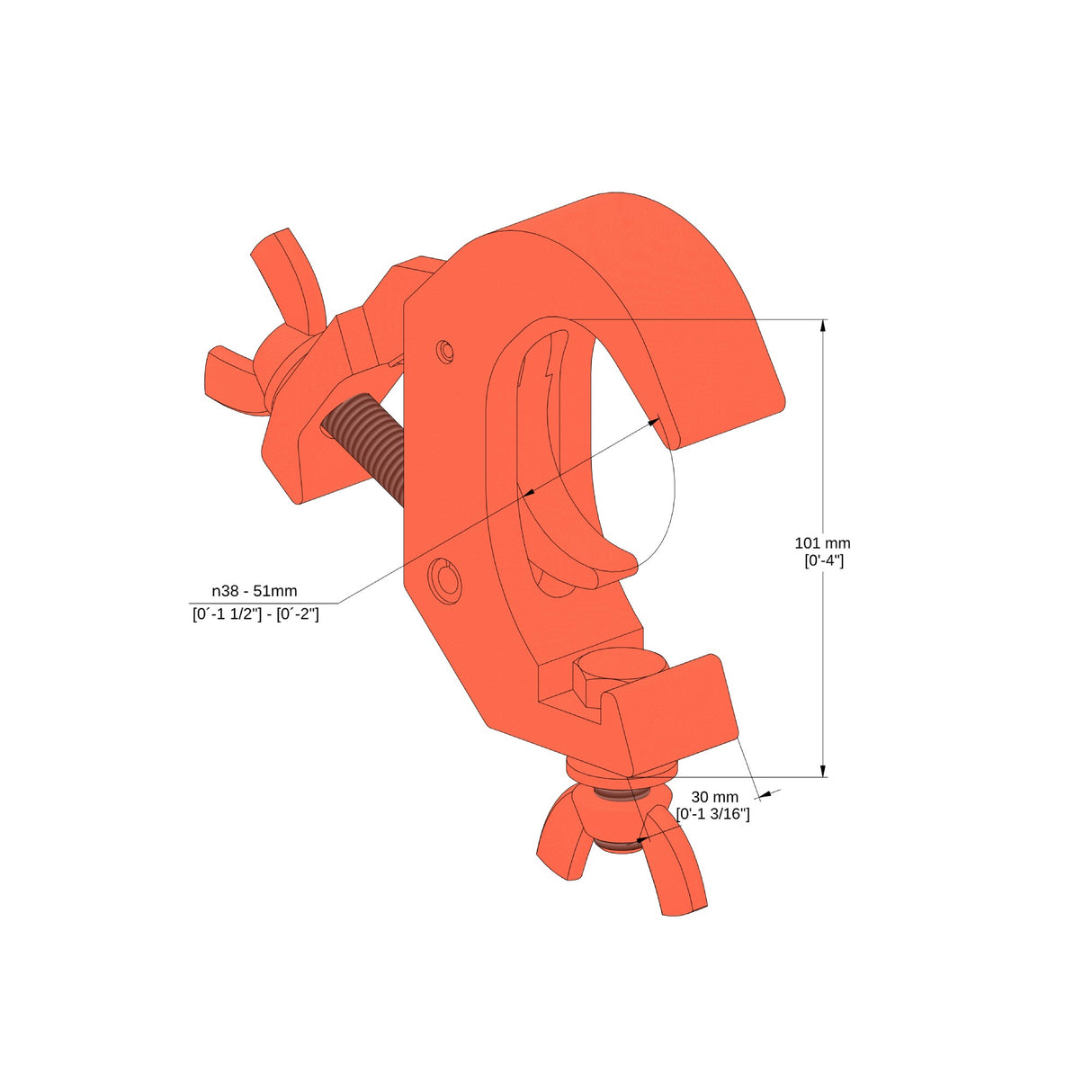

- For 1 7/8""-2"" (48-51mm) Tubes: Precision-engineered for standard truss diameters.
- Load Capacity: SWL 360kg (794 lbs) at SF8:1 (DGUV17/BGV C1); 720kg (1587 lbs) at SF4:1 (2006/42/EC).
- High-Strength Aluminium: Lightweight and robust for professional-grade use.
- Quick Installation: Includes M12 x 35 bolt and wingnut for tool-free setup.
- Wide Compatibility: Supports M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62 trusses.
- Safety Certified: Meets DGUV17/BGV C1 standards.
- Sleek Design: Polished finish with micro-percussion markings.
- Customization: Powder-coated finishes available on request.
- Mounting Flexibility: Accommodates bolts up to 13mm for versatile rigging.
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The Cell402 Quick Clamp with Bolt & Wingnut is a high-performance rigging solution crafted for professionals who prioritize speed, strength, and safety. Designed for 1 7/8""-2"" (48-51mm) diameter tubes, this clamp provides a fast and secure attachment method for moving heads and other equipment, making it perfect for stages, events, and installations. Built from precision extruded high tensile aluminium alloy, it offers a lightweight yet durable construction that withstands demanding environments. With a DGUV17/BGV C1 rating and a safe working load (SWL) of 360kg (794 lbs) at an 8:1 safety factor, it guarantees reliable performance. The included M12 x 35 bolt and wingnut ensure quick, tool-free assembly, enhancing efficiency on the job.
Versatile and reliable, the Cell402 Quick Clamp integrates seamlessly with a variety of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, offering flexibility for diverse rigging applications. Its polished surface with micro-percussion markings delivers a sleek, professional appearance, with powder-coated versions available upon request for customization. Featuring a mounting hole for bolts up to 13mm, it provides additional rigging adaptability. With an SWL of 360kg (794 lbs) at SF8:1 under DGUV17/BGV C1 and an impressive 720kg (1587 lbs) at SF4:1 under 2006/42/EC, this clamp is engineered to handle substantial loads with confidence.
Package with 10 pcs
Key Features
- For 1 7/8""-2"" (48-51mm) Tubes: Precision-engineered for standard truss diameters.
- Load Capacity: SWL 360kg (794 lbs) at SF8:1 (DGUV17/BGV C1); 720kg (1587 lbs) at SF4:1 (2006/42/EC).
- High-Strength Aluminium: Lightweight and robust for professional-grade use.
- Quick Installation: Includes M12 x 35 bolt and wingnut for tool-free setup.
- Wide Compatibility: Supports M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62 trusses.
- Safety Certified: Meets DGUV17/BGV C1 standards.
- Sleek Design: Polished finish with micro-percussion markings.
- Customization: Powder-coated finishes available on request.
- Mounting Flexibility: Accommodates bolts up to 13mm for versatile rigging.
