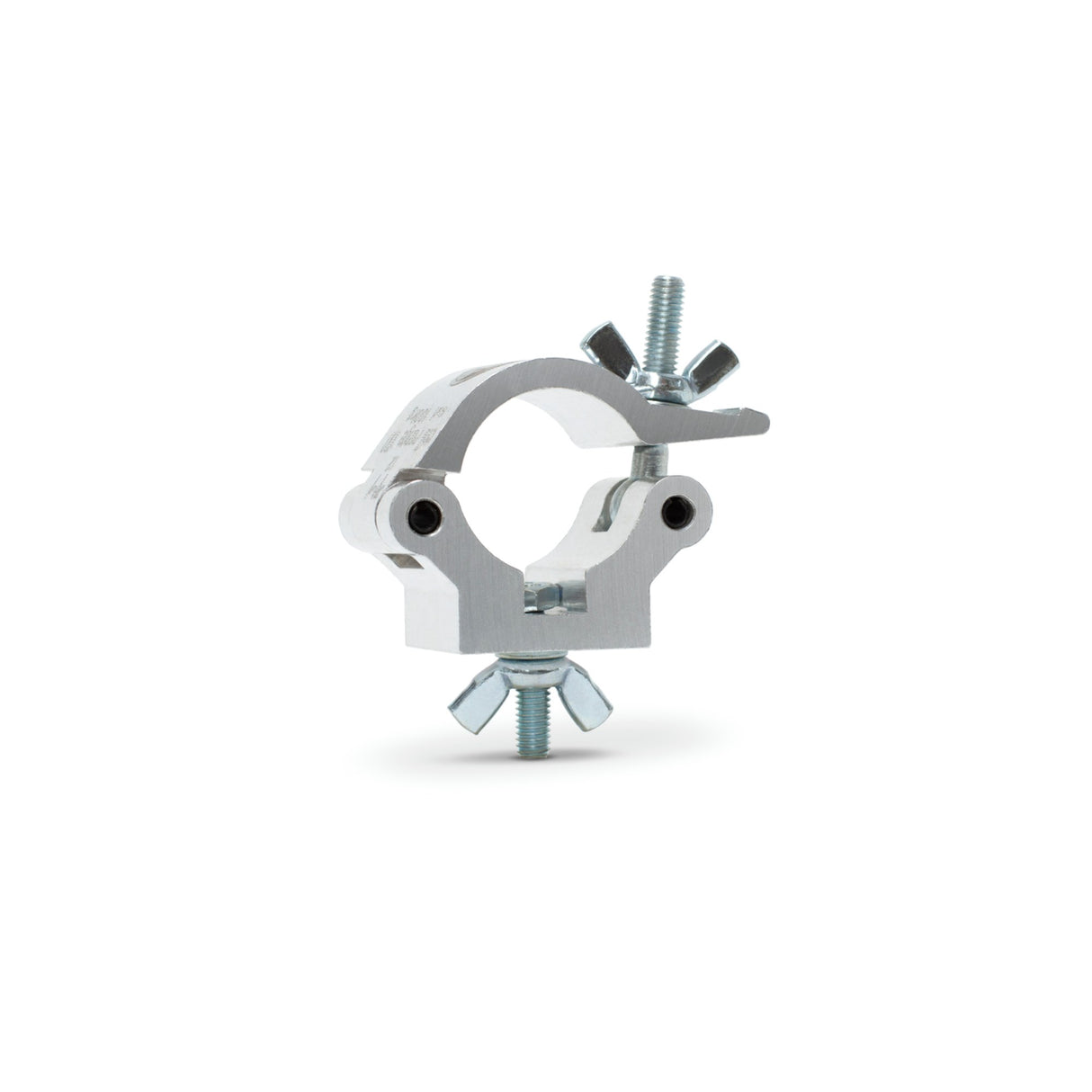

Clamp with bolt + wingnut - SWL 160kg (353lbs) (SF8:1) for 32-35mm (1 1/4"-1 3/8") tube
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us

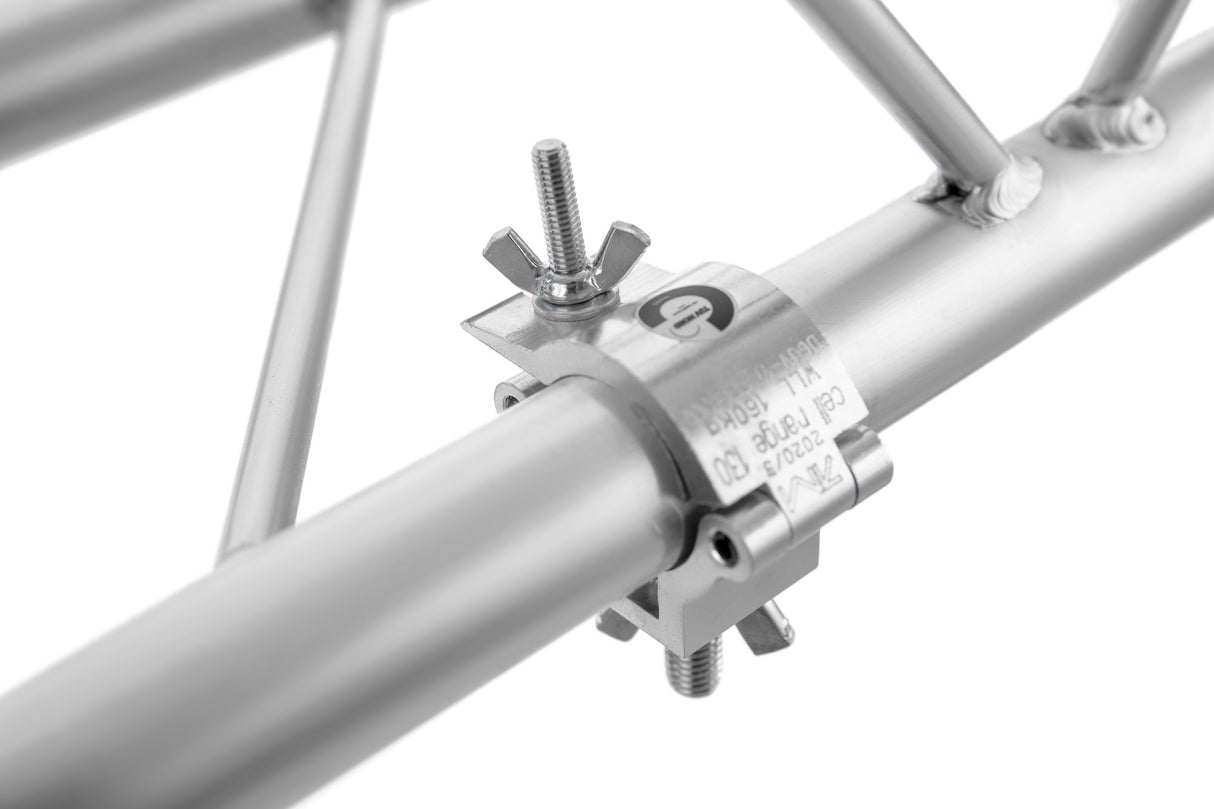

Elevate your rigging setup with the Cell132 Clamp, a robust and user-friendly solution designed to secure equipment to 32-35mm (1 1/4''-1 3/8'') diameter tubes. Crafted from precision extruded high tensile aluminium alloy, this clamp combines lightweight portability with impressive durability, making it perfect for exhibitions, stage setups, and structural displays. Rated with a safe working load (SWL) of 160kg (353 lbs) at an 8:1 safety factor under DGUV17/BGV C1, and offering even higher capacity at a 4:1 safety factor per 2006/42/EC, it delivers trusted performance for professional applications. Supplied with an M10x30 bolt and wingnut, the Cell132 Clamp ensures fast, tool-free assembly—ideal for on-the-go installations.
Tailored for versatility, this clamp features a mounting hole suitable for bolts up to 6.5mm (¼"), allowing secure attachment of various equipment with ease. Its polished surface with micro-percussion markings adds a sleek, professional touch, while powder-coated versions are available on request for a personalized finish. Whether you’re rigging a compact truss system or enhancing a creative display, the Cell132 Clamp offers the strength, adaptability, and style you need to get the job done efficiently and safely.
Key Features

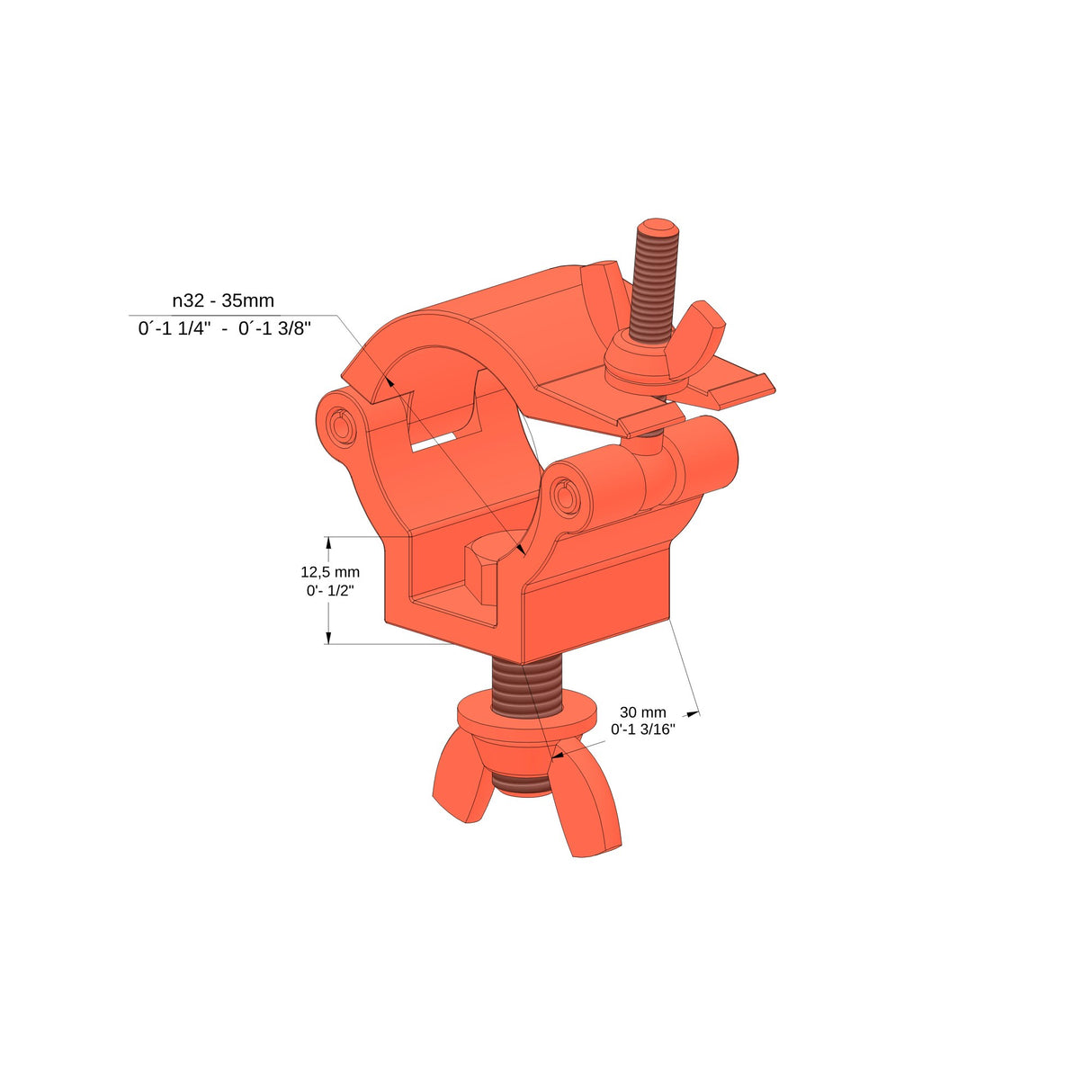

- Tube Compatibility: Fits 32-35mm (1 1/4''-1 3/8'') diameter tubes perfectly.
- Load Rating: SWL 160kg (353 lbs) at SF8:1 (DGUV17/BGV C1); higher at SF4:1 (2006/42/EC).
- Material: High tensile aluminium alloy for strength and lightweight design.
- Easy Setup: Comes with M10x30 bolt and wingnut for quick, tool-free installation.
- Mounting Options: Accepts bolts up to 6.5mm (¼") for flexible attachments.
- Professional Finish: Polished with micro-percussion markings; powder-coating available.
- Certified Safety: Meets DGUV17/BGV C1 standards for reliable performance.
