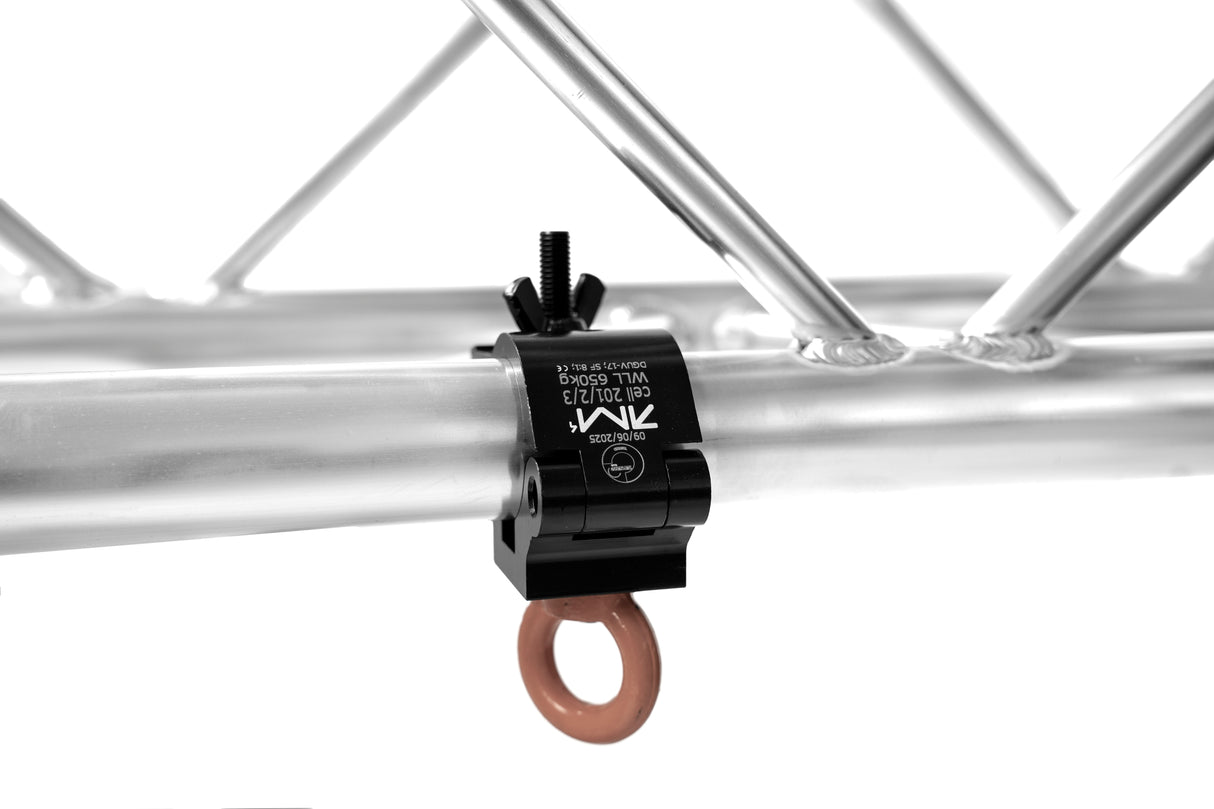

Truss clamp with lifting eye-SWL 650kg (1433lbs) (SF8:1) for 48-51mm (1 7/8"-2") tube Anodized
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us

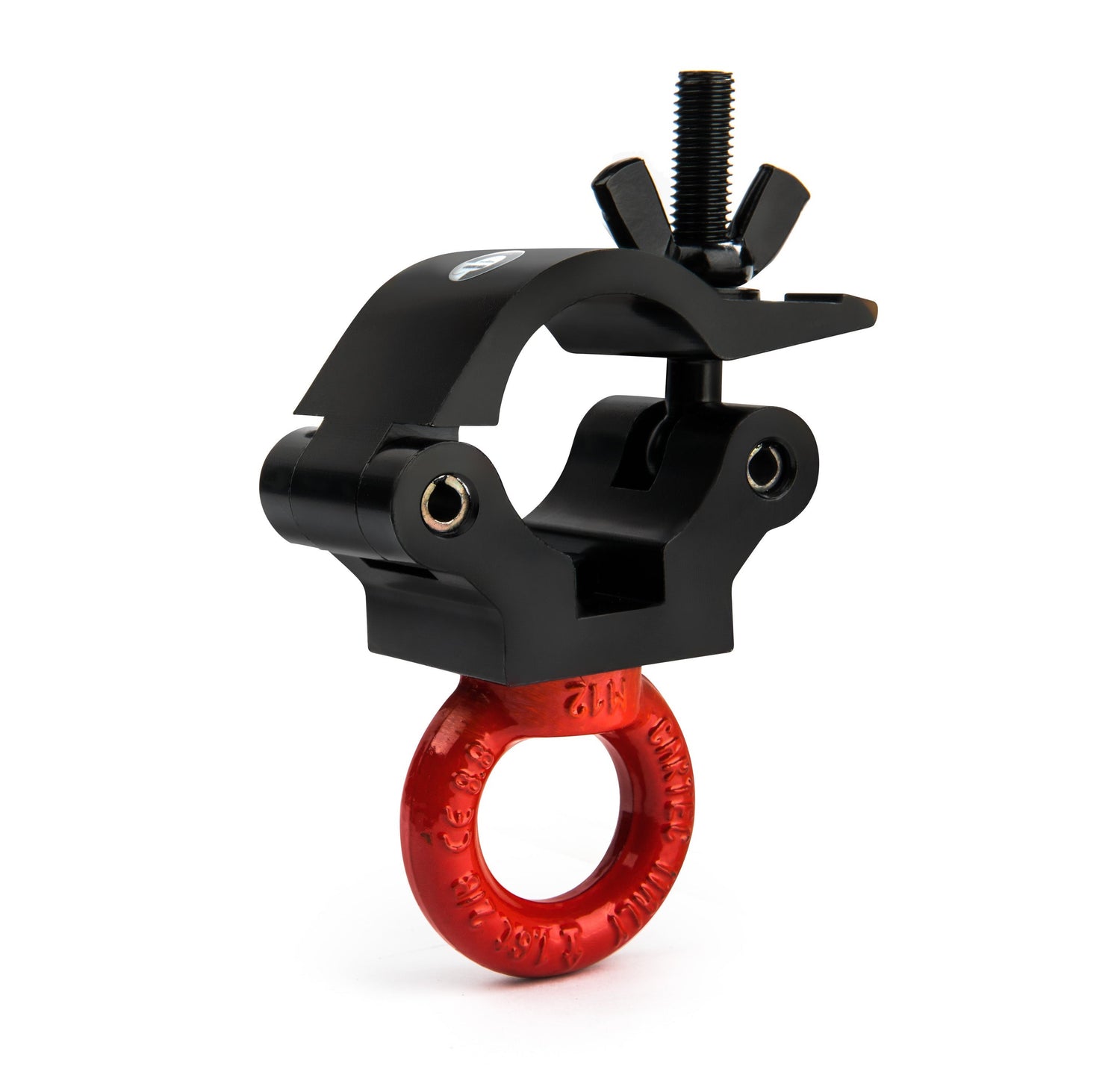

The Cell203/650Kg Clamp with Lifting Eye in Anodized Black is a robust and versatile rigging solution designed for professionals who demand strength, safety, and adaptability. As part of the Cell 200 clamps series, this clamp is engineered for 48-51mm (1 7/8''-2'') diameter tubes and features a steel lifting eye finished in black to complement its sleek, anodized exterior. This makes it ideal for lifting and suspending heavy loads in concerts, exhibitions, and structural installations where both performance and aesthetics matter. Constructed from precision-extruded high tensile aluminium alloy with a durable anodized black finish, it combines lightweight portability with exceptional durability and corrosion resistance. With a safe working load (SWL) of 650kg (1433 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and a higher capacity at a 4:1 safety factor under 2006/42/EC, this clamp is built to handle the most demanding rigging tasks with confidence.
Designed for seamless integration, the Cell203/650Kg Clamp is compatible with a wide range of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62. It comes supplied with an M12 bolt and wingnut for quick, tool-free attachment to the truss, and its mounting hole accommodates bolts up to 13mm for secure equipment fixing. The polished black surface with micro-percussion markings ensures a professional, cohesive appearance, while custom powder-coated versions are available upon request for further customization. Whether you’re rigging a complex stage setup or need a reliable lifting solution with a modern aesthetic, the Cell203/650Kg Clamp with Lifting Eye in Anodized Black offers the perfect blend of strength, versatility, and style.
Key Features
- Anodized Black Finish: Provides a sleek, professional look with enhanced durability and corrosion resistance.
- For 48-51mm (1 7/8''-2'') Tubes: Precision fit for standard truss diameters.
- Lifting Eye: Steel eye finished in black for secure rope or cable attachment.
- High Tensile Aluminium: Lightweight and exceptionally strong.
- Load Capacity: SWL 650kg (1433 lbs) at SF8:1 (DGUV17/BGV C1); higher at SF4:1 (2006/42/EC).
- Quick Installation: Includes M12 bolt and wingnut for tool-free truss attachment.
- Mounting Flexibility: Supports bolts up to 13mm for secure equipment fixing.
- Truss Compatibility: Works with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62.
- Safety Certified: Meets DGUV17/BGV C1 standards for professional reliability.
- Premium Finish: Polished black surface with micro-percussion markings.
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The Cell203/650Kg Clamp with Lifting Eye in Anodized Black is a robust and versatile rigging solution designed for professionals who demand strength, safety, and adaptability. As part of the Cell 200 clamps series, this clamp is engineered for 48-51mm (1 7/8''-2'') diameter tubes and features a steel lifting eye finished in black to complement its sleek, anodized exterior. This makes it ideal for lifting and suspending heavy loads in concerts, exhibitions, and structural installations where both performance and aesthetics matter. Constructed from precision-extruded high tensile aluminium alloy with a durable anodized black finish, it combines lightweight portability with exceptional durability and corrosion resistance. With a safe working load (SWL) of 650kg (1433 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and a higher capacity at a 4:1 safety factor under 2006/42/EC, this clamp is built to handle the most demanding rigging tasks with confidence.
Designed for seamless integration, the Cell203/650Kg Clamp is compatible with a wide range of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62. It comes supplied with an M12 bolt and wingnut for quick, tool-free attachment to the truss, and its mounting hole accommodates bolts up to 13mm for secure equipment fixing. The polished black surface with micro-percussion markings ensures a professional, cohesive appearance, while custom powder-coated versions are available upon request for further customization. Whether you’re rigging a complex stage setup or need a reliable lifting solution with a modern aesthetic, the Cell203/650Kg Clamp with Lifting Eye in Anodized Black offers the perfect blend of strength, versatility, and style.
Key Features
- Anodized Black Finish: Provides a sleek, professional look with enhanced durability and corrosion resistance.
- For 48-51mm (1 7/8''-2'') Tubes: Precision fit for standard truss diameters.
- Lifting Eye: Steel eye finished in black for secure rope or cable attachment.
- High Tensile Aluminium: Lightweight and exceptionally strong.
- Load Capacity: SWL 650kg (1433 lbs) at SF8:1 (DGUV17/BGV C1); higher at SF4:1 (2006/42/EC).
- Quick Installation: Includes M12 bolt and wingnut for tool-free truss attachment.
- Mounting Flexibility: Supports bolts up to 13mm for secure equipment fixing.
- Truss Compatibility: Works with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62.
- Safety Certified: Meets DGUV17/BGV C1 standards for professional reliability.
- Premium Finish: Polished black surface with micro-percussion markings.
