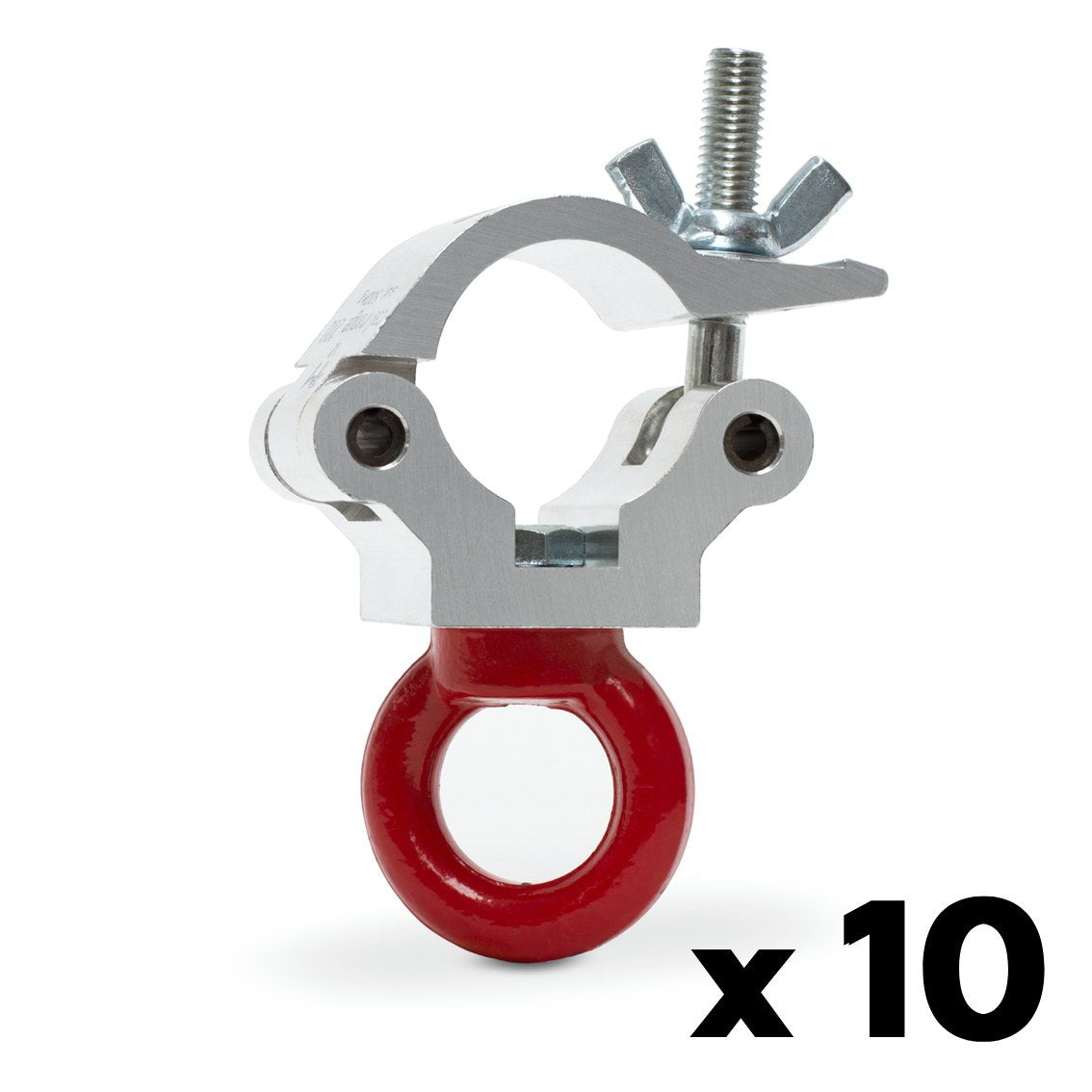

Truss clamp with lifting eye-SWL 650kg (1433lbs) (SF8:1) for 48-51mm (1 7/8"-2") tube - 10 pcs
Speedy Delivery. No Surprises.
Speedy Delivery. No Surprises.
Flat-rate shipping of $50 or less on every order.
Orders typically ship the next business day, so you can get what you need — fast.
Contact us
The Cell203/650Kg Clamp with lifting eye is a robust and versatile rigging solution designed for professionals who demand strength, safety, and adaptability. As part of the Cell 200 clamps series, this clamp is engineered for 48-51mm (1 7/8''-2'') diameter tubes and features a steel lifting eye for secure rope or cable attachment, making it ideal for lifting and suspending heavy loads in concerts, exhibitions, and structural installations. Constructed from precision extruded high tensile aluminium alloy, it combines lightweight portability with exceptional durability. With a safe working load (SWL) of 650kg (1433 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and a higher capacity at a 4:1 safety factor under 2006/42/EC, this clamp is built to handle even the most demanding rigging tasks with confidence.
Designed for seamless integration, the Cell203/650Kg Clamp is compatible with a wide range of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62. It comes supplied with an M12 bolt and wingnut for quick, tool-free attachment to the truss, and its mounting hole accommodates bolts up to 13mm for secure equipment fixing. The clamp’s polished surface with micro-percussion markings ensures a professional appearance, while powder-coated versions are available upon request for a customized finish. Whether you’re rigging a complex stage setup or need a reliable lifting solution, the Cell203/650Kg Clamp with lifting eye offers the perfect blend of strength, versatility, and ease of use.
Key Features
- For 48-51mm (1 7/8''-2'') Tubes: Precision fit for standard truss diameters.
- Lifting Eye: Steel eye for secure rope or cable attachment.
- High Tensile Aluminium: Lightweight and exceptionally strong.
- Load Capacity: SWL 650kg (1433 lbs) at SF8:1 (DGUV17/BGV C1); higher at SF4:1 (2006/42/EC).
- Quick Installation: Includes M12 bolt and wingnut for tool-free truss attachment.
- Mounting Flexibility: Supports bolts up to 13mm for secure equipment fixing.
- Truss Compatibility: Works with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62.
- Safety Certified: Meets DGUV17/BGV C1 standards for professional reliability.
- Premium Finish: Polished with micro-percussion markings; powder-coated options available.
Specifications
Specifications
-
Tube Diameter (in)
-
Truss Series CompatibilityM290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62
-
What's In the box What is in the package
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The Cell203/650Kg Clamp with lifting eye is a robust and versatile rigging solution designed for professionals who demand strength, safety, and adaptability. As part of the Cell 200 clamps series, this clamp is engineered for 48-51mm (1 7/8''-2'') diameter tubes and features a steel lifting eye for secure rope or cable attachment, making it ideal for lifting and suspending heavy loads in concerts, exhibitions, and structural installations. Constructed from precision extruded high tensile aluminium alloy, it combines lightweight portability with exceptional durability. With a safe working load (SWL) of 650kg (1433 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and a higher capacity at a 4:1 safety factor under 2006/42/EC, this clamp is built to handle even the most demanding rigging tasks with confidence.
Designed for seamless integration, the Cell203/650Kg Clamp is compatible with a wide range of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62. It comes supplied with an M12 bolt and wingnut for quick, tool-free attachment to the truss, and its mounting hole accommodates bolts up to 13mm for secure equipment fixing. The clamp’s polished surface with micro-percussion markings ensures a professional appearance, while powder-coated versions are available upon request for a customized finish. Whether you’re rigging a complex stage setup or need a reliable lifting solution, the Cell203/650Kg Clamp with lifting eye offers the perfect blend of strength, versatility, and ease of use.
Key Features
- For 48-51mm (1 7/8''-2'') Tubes: Precision fit for standard truss diameters.
- Lifting Eye: Steel eye for secure rope or cable attachment.
- High Tensile Aluminium: Lightweight and exceptionally strong.
- Load Capacity: SWL 650kg (1433 lbs) at SF8:1 (DGUV17/BGV C1); higher at SF4:1 (2006/42/EC).
- Quick Installation: Includes M12 bolt and wingnut for tool-free truss attachment.
- Mounting Flexibility: Supports bolts up to 13mm for secure equipment fixing.
- Truss Compatibility: Works with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62.
- Safety Certified: Meets DGUV17/BGV C1 standards for professional reliability.
- Premium Finish: Polished with micro-percussion markings; powder-coated options available.
