Truss clamp with lifting eye-SWL 340kg (750lbs) (SF5:1) for 48-51mm (1 7/8"-2") tube - 10 pcs
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us

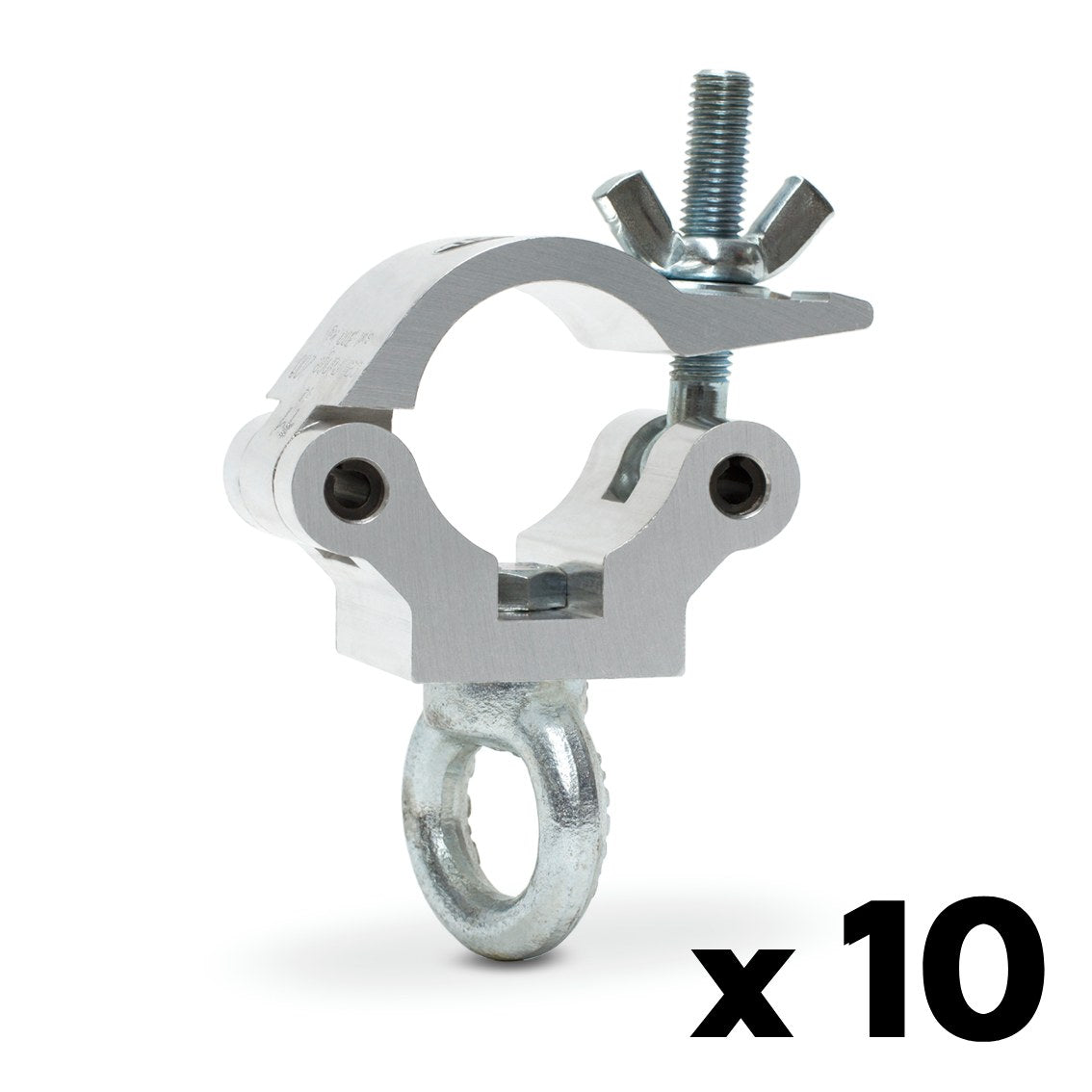

The Cell203/340Kg Clamp with Lifting Eye is a dependable and adaptable rigging accessory designed to fit 48-51mm (1 7/8''-2'') diameter tubes, making it perfect for professionals working on concerts, exhibitions, or structural setups. Equipped with a steel lifting eye, it simplifies the attachment of ropes or cables, offering a safe and efficient solution for lifting and suspending loads. With a safe working load (SWL) of 340kg (750 lbs) at a 5:1 safety factor, this clamp delivers reliable performance across a variety of applications. Constructed from precision extruded high tensile aluminium alloy, it strikes a balance between lightweight design and rugged durability, while a silver lifting eye option adds a touch of style for those who value aesthetics alongside functionality.
This clamp is engineered for compatibility with a wide array of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, ensuring it meets the needs of diverse projects. It comes complete with an M12 bolt and wingnut for fast, tool-free installation, and its mounting hole supports bolts up to 13mm for secure equipment attachment. The polished surface with micro-percussion markings lends a professional finish, with powder-coated versions available on request for a tailored look. Certified with a DGUV17/BGV C1 rating and additional ratings of SF 8:1 (DGUV17/BGV C1) and SF 4:1 (2006/42/EC), this clamp meets rigorous safety standards, making it a trusted choice for demanding rigging tasks.
Package with 10 pcs
Key Features
- Fits 48-51mm (1 7/8''-2'') Tubes: Perfect for standard truss sizes.
- Steel Lifting Eye: Enables secure rope or cable connections.
- Load Capacity: SWL 340kg (750 lbs) at SF5:1.
- High Tensile Aluminium: Lightweight yet exceptionally strong.
- Easy Setup: Supplied with M12 bolt and wingnut for quick installation.
- Mounting Versatility: Accommodates bolts up to 13mm.
- Wide Compatibility: Supports M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62 truss systems.
- Safety Certified: Rated DGUV17/BGV C1 (SF 8:1) and 2006/42/EC (SF 4:1).
- Professional Finish: Polished with micro-percussion markings; powder-coated options available.
- Silver Eye Option: Available for a stylish, modern appearance.
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The Cell203/340Kg Clamp with Lifting Eye is a dependable and adaptable rigging accessory designed to fit 48-51mm (1 7/8''-2'') diameter tubes, making it perfect for professionals working on concerts, exhibitions, or structural setups. Equipped with a steel lifting eye, it simplifies the attachment of ropes or cables, offering a safe and efficient solution for lifting and suspending loads. With a safe working load (SWL) of 340kg (750 lbs) at a 5:1 safety factor, this clamp delivers reliable performance across a variety of applications. Constructed from precision extruded high tensile aluminium alloy, it strikes a balance between lightweight design and rugged durability, while a silver lifting eye option adds a touch of style for those who value aesthetics alongside functionality.
This clamp is engineered for compatibility with a wide array of truss systems, including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, ensuring it meets the needs of diverse projects. It comes complete with an M12 bolt and wingnut for fast, tool-free installation, and its mounting hole supports bolts up to 13mm for secure equipment attachment. The polished surface with micro-percussion markings lends a professional finish, with powder-coated versions available on request for a tailored look. Certified with a DGUV17/BGV C1 rating and additional ratings of SF 8:1 (DGUV17/BGV C1) and SF 4:1 (2006/42/EC), this clamp meets rigorous safety standards, making it a trusted choice for demanding rigging tasks.
Package with 10 pcs
Key Features
- Fits 48-51mm (1 7/8''-2'') Tubes: Perfect for standard truss sizes.
- Steel Lifting Eye: Enables secure rope or cable connections.
- Load Capacity: SWL 340kg (750 lbs) at SF5:1.
- High Tensile Aluminium: Lightweight yet exceptionally strong.
- Easy Setup: Supplied with M12 bolt and wingnut for quick installation.
- Mounting Versatility: Accommodates bolts up to 13mm.
- Wide Compatibility: Supports M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62 truss systems.
- Safety Certified: Rated DGUV17/BGV C1 (SF 8:1) and 2006/42/EC (SF 4:1).
- Professional Finish: Polished with micro-percussion markings; powder-coated options available.
- Silver Eye Option: Available for a stylish, modern appearance.
