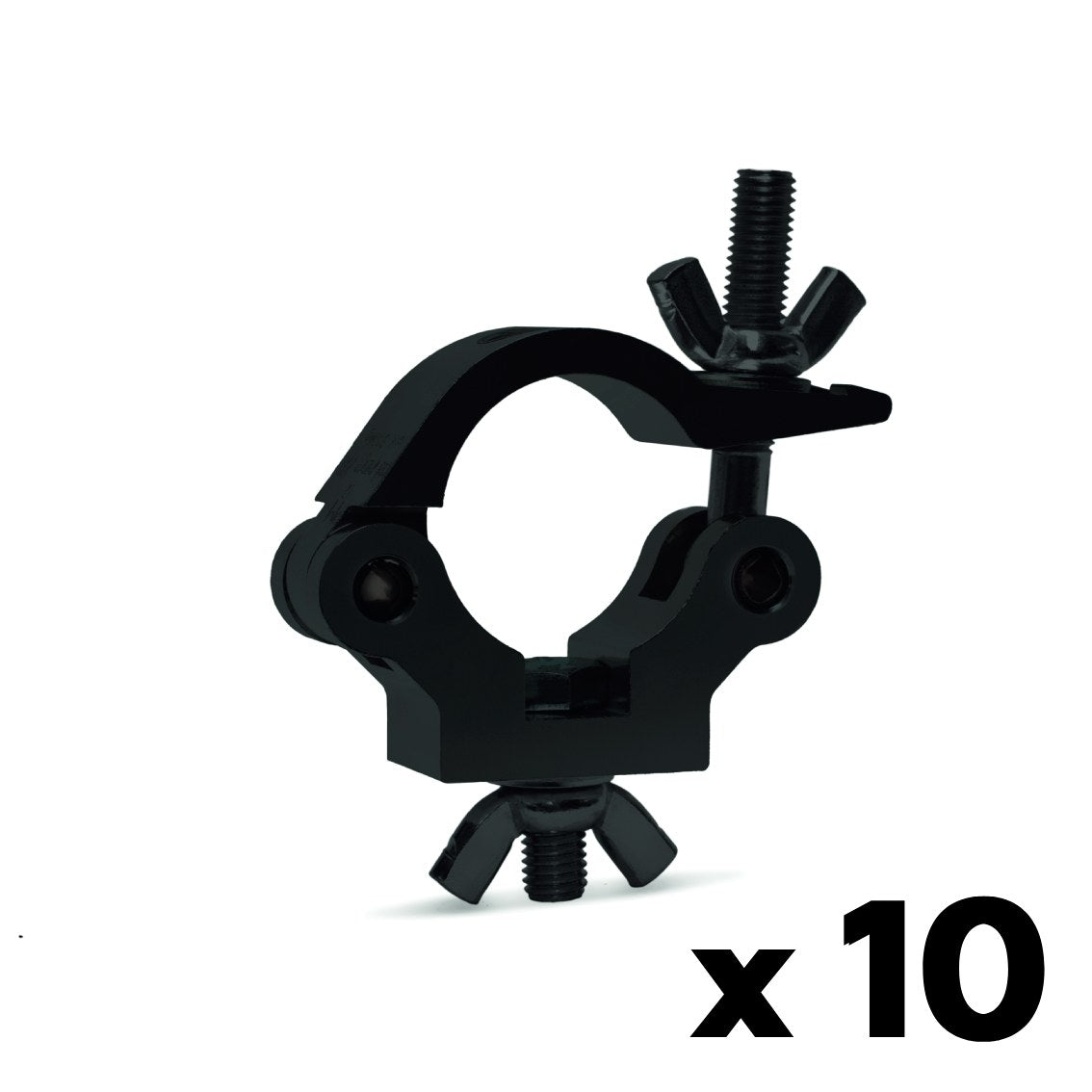

The Cell208 Slim Clamp with Bolt & Nut in Anodized Black is a high-strength rigging solution that combines exceptional load capacity with sleek design and ease of use. Tailored for 48-51mm (1 7/8''-2'') diameter tubes, this clamp is ideal for securely mounting equipment to truss systems in concerts, exhibitions, and installations. Its precision-extruded high tensile aluminium alloy construction with a durable anodized black finish ensures durability without the weight, making it a favorite among professionals. The anodized black finish not only delivers a modern, cohesive aesthetic but also enhances corrosion resistance for reliable performance over time.
Boasting a safe working load (SWL) of 560kg (1235 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and 1120kg (2469 lbs) at a 4:1 safety factor under 2006/42/EC, the Cell208 is engineered to handle even the most demanding rigging tasks. Its compatibility with a wide range of truss systems—including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62—offers unparalleled versatility. The included M12 x 50 bolt and wingnut allow for quick, tool-free assembly, while the polished black surface with micro-percussion markings adds a touch of professionalism. For those seeking a customized look, powder-coated versions are available on request. The original polished finish remains an option alongside this anodized black variant.
Package with 10 pcs
Key Features
- Anodized Black Finish: Provides a sleek, professional look with enhanced corrosion resistance.
- For 48-51mm (1 7/8''-2'') Tubes: Precision fit for standard truss sizes.
- High Load Capacity: SWL 560kg (1235 lbs) at SF8:1 (DGUV17/BGV C1); 1120kg (2469 lbs) at SF4:1 (2006/42/EC).
- Premium Aluminium Alloy: Lightweight and durable for professional use.
- Quick Installation: Includes M12 x 50 bolt and wingnut for tool-free setup.
- Wide Compatibility: Supports M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62 trusses.
- Safety Certified: Meets DGUV17/BGV C1 standards.
- Sleek Design: Polished black surface with micro-percussion markings.
- Mounting Flexibility: Accommodates bolts up to 13mm.
Specifications
Specifications
-
Tube Diameter (in)
-
Truss Series CompatibilityM290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62
-
What's In the box What is in the package
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The Cell208 Slim Clamp with Bolt & Nut in Anodized Black is a high-strength rigging solution that combines exceptional load capacity with sleek design and ease of use. Tailored for 48-51mm (1 7/8''-2'') diameter tubes, this clamp is ideal for securely mounting equipment to truss systems in concerts, exhibitions, and installations. Its precision-extruded high tensile aluminium alloy construction with a durable anodized black finish ensures durability without the weight, making it a favorite among professionals. The anodized black finish not only delivers a modern, cohesive aesthetic but also enhances corrosion resistance for reliable performance over time.
Boasting a safe working load (SWL) of 560kg (1235 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and 1120kg (2469 lbs) at a 4:1 safety factor under 2006/42/EC, the Cell208 is engineered to handle even the most demanding rigging tasks. Its compatibility with a wide range of truss systems—including M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62—offers unparalleled versatility. The included M12 x 50 bolt and wingnut allow for quick, tool-free assembly, while the polished black surface with micro-percussion markings adds a touch of professionalism. For those seeking a customized look, powder-coated versions are available on request. The original polished finish remains an option alongside this anodized black variant.
Package with 10 pcs
Key Features
- Anodized Black Finish: Provides a sleek, professional look with enhanced corrosion resistance.
- For 48-51mm (1 7/8''-2'') Tubes: Precision fit for standard truss sizes.
- High Load Capacity: SWL 560kg (1235 lbs) at SF8:1 (DGUV17/BGV C1); 1120kg (2469 lbs) at SF4:1 (2006/42/EC).
- Premium Aluminium Alloy: Lightweight and durable for professional use.
- Quick Installation: Includes M12 x 50 bolt and wingnut for tool-free setup.
- Wide Compatibility: Supports M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62 trusses.
- Safety Certified: Meets DGUV17/BGV C1 standards.
- Sleek Design: Polished black surface with micro-percussion markings.
- Mounting Flexibility: Accommodates bolts up to 13mm.
