Slim truss clamp basic -SWL 560kg (1234lbs) (SF8:1) for 48-51mm (1 7/8"-2") tube Anodized
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us

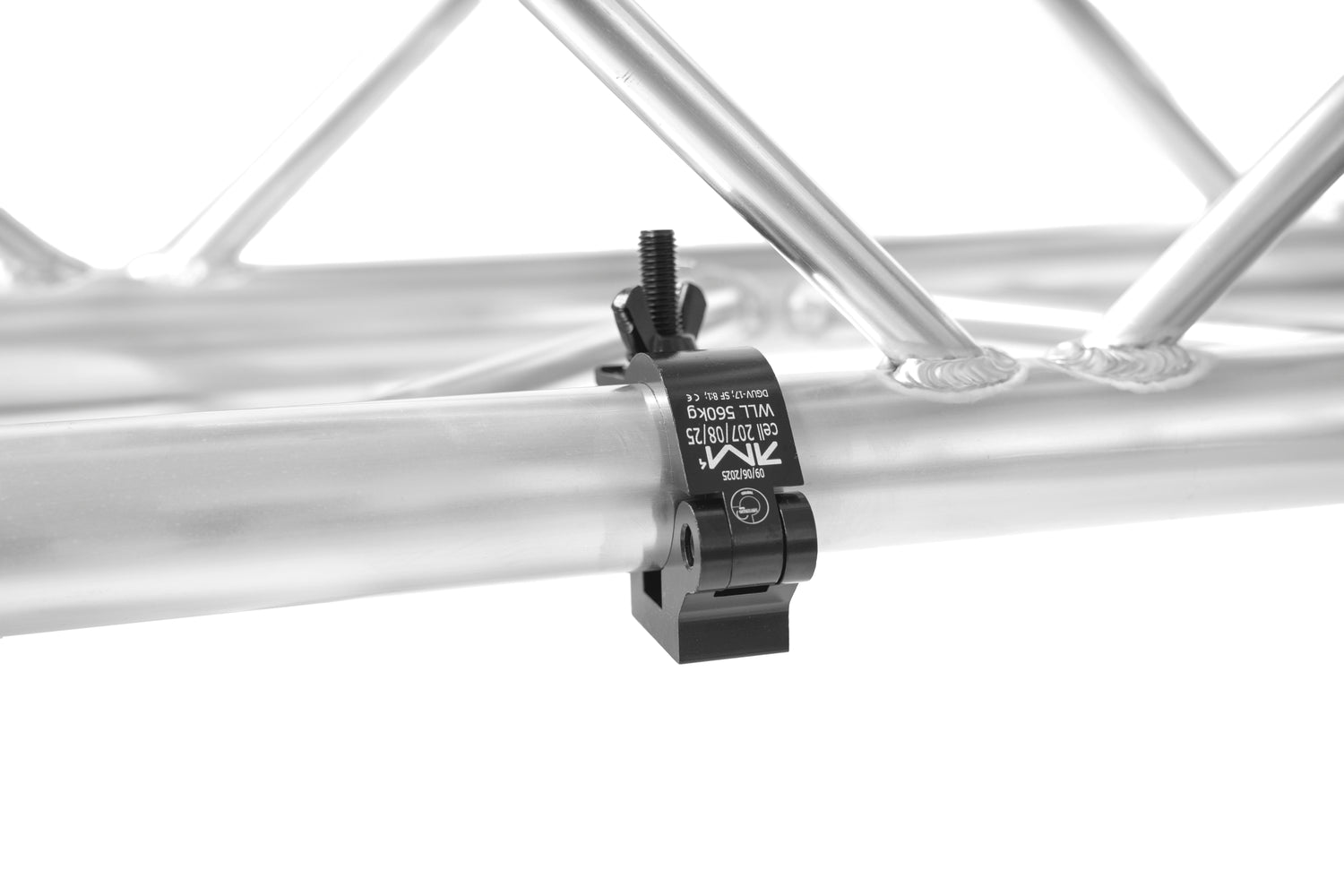

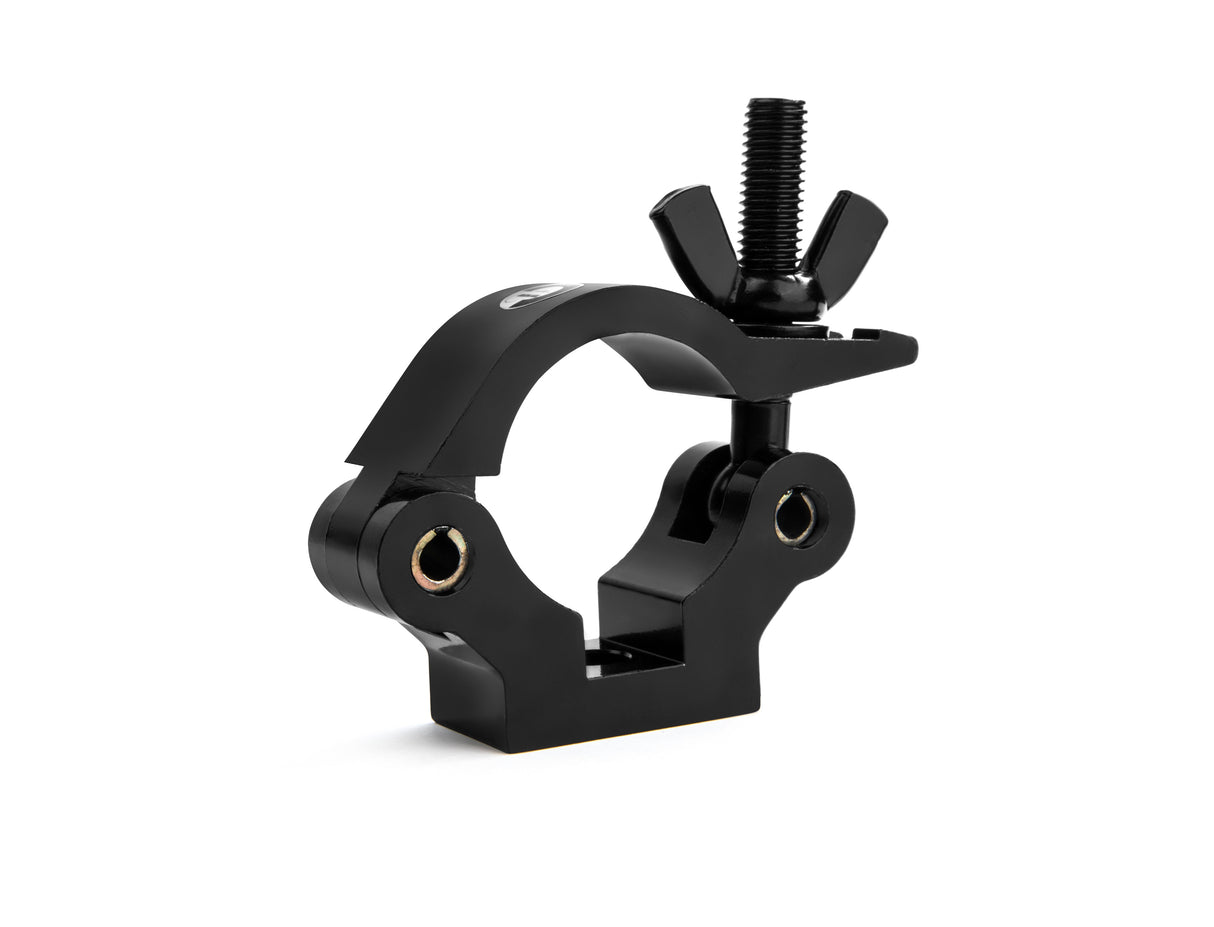

The Cell207 Slim Basic Clamp in Anodized Black is a versatile and dependable rigging solution designed to secure equipment to 48-51mm (1 7/8''-2'') diameter tubes. Crafted from precision-extruded high tensile aluminium alloy with a durable anodized black finish, this clamp delivers outstanding strength and durability in a lightweight package. With a safe working load (SWL) of 560kg (1235 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and 1120kg (2469 lbs) at a 4:1 safety factor under 2006/42/EC, it’s built to tackle heavy-duty applications with reliability—perfect for concerts, exhibitions, and installations. The anodized black finish enhances its sleek, professional appearance while providing improved corrosion resistance for long-term performance.
This clamp offers broad compatibility with truss systems such as M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, making it an adaptable choice for diverse setups. It comes equipped with an M12 bolt and wingnut for fast, tool-free attachment to the truss, while the mounting hole supports bolts up to 13mm for securing your equipment. Featuring a polished black surface with micro-percussion markings, it maintains a refined look and is also available in custom powder-coated versions upon request. The original polished finish remains an option alongside this anodized black variant.
Key Features
- Anodized Black Finish: Offers a sleek, professional look with enhanced corrosion resistance.
- Tube Compatibility: Fits 48-51mm (1 7/8''-2'') diameter tubes.
- Load Capacity: SWL 560kg (1235 lbs) at SF8:1 (DGUV17/BGV C1); 1120kg (2469 lbs) at SF4:1 (2006/42/EC).
- Material: High tensile aluminium alloy—lightweight and robust.
- Easy Installation: Includes M12 bolt and wingnut for quick truss attachment.
- Mounting Options: Supports bolts up to 13mm for equipment security.
- Truss Compatibility: Works with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62.
- Safety Certified: Meets DGUV17/BGV C1 standards.
- Finish Options: Polished black surface with micro-percussion markings
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The Cell207 Slim Basic Clamp in Anodized Black is a versatile and dependable rigging solution designed to secure equipment to 48-51mm (1 7/8''-2'') diameter tubes. Crafted from precision-extruded high tensile aluminium alloy with a durable anodized black finish, this clamp delivers outstanding strength and durability in a lightweight package. With a safe working load (SWL) of 560kg (1235 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and 1120kg (2469 lbs) at a 4:1 safety factor under 2006/42/EC, it’s built to tackle heavy-duty applications with reliability—perfect for concerts, exhibitions, and installations. The anodized black finish enhances its sleek, professional appearance while providing improved corrosion resistance for long-term performance.
This clamp offers broad compatibility with truss systems such as M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, making it an adaptable choice for diverse setups. It comes equipped with an M12 bolt and wingnut for fast, tool-free attachment to the truss, while the mounting hole supports bolts up to 13mm for securing your equipment. Featuring a polished black surface with micro-percussion markings, it maintains a refined look and is also available in custom powder-coated versions upon request. The original polished finish remains an option alongside this anodized black variant.
Key Features
- Anodized Black Finish: Offers a sleek, professional look with enhanced corrosion resistance.
- Tube Compatibility: Fits 48-51mm (1 7/8''-2'') diameter tubes.
- Load Capacity: SWL 560kg (1235 lbs) at SF8:1 (DGUV17/BGV C1); 1120kg (2469 lbs) at SF4:1 (2006/42/EC).
- Material: High tensile aluminium alloy—lightweight and robust.
- Easy Installation: Includes M12 bolt and wingnut for quick truss attachment.
- Mounting Options: Supports bolts up to 13mm for equipment security.
- Truss Compatibility: Works with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62.
- Safety Certified: Meets DGUV17/BGV C1 standards.
- Finish Options: Polished black surface with micro-percussion markings
