Slim truss clamp basic -SWL 560kg (1234lbs) (SF8:1) for 48-51mm (1 7/8"-2") tube - 10 pcs
Speedy Delivery. No Surprises.
Speedy Delivery. No Surprises.
Flat-rate shipping of $50 or less on every order.
Orders typically ship the next business day, so you can get what you need — fast.
Contact us

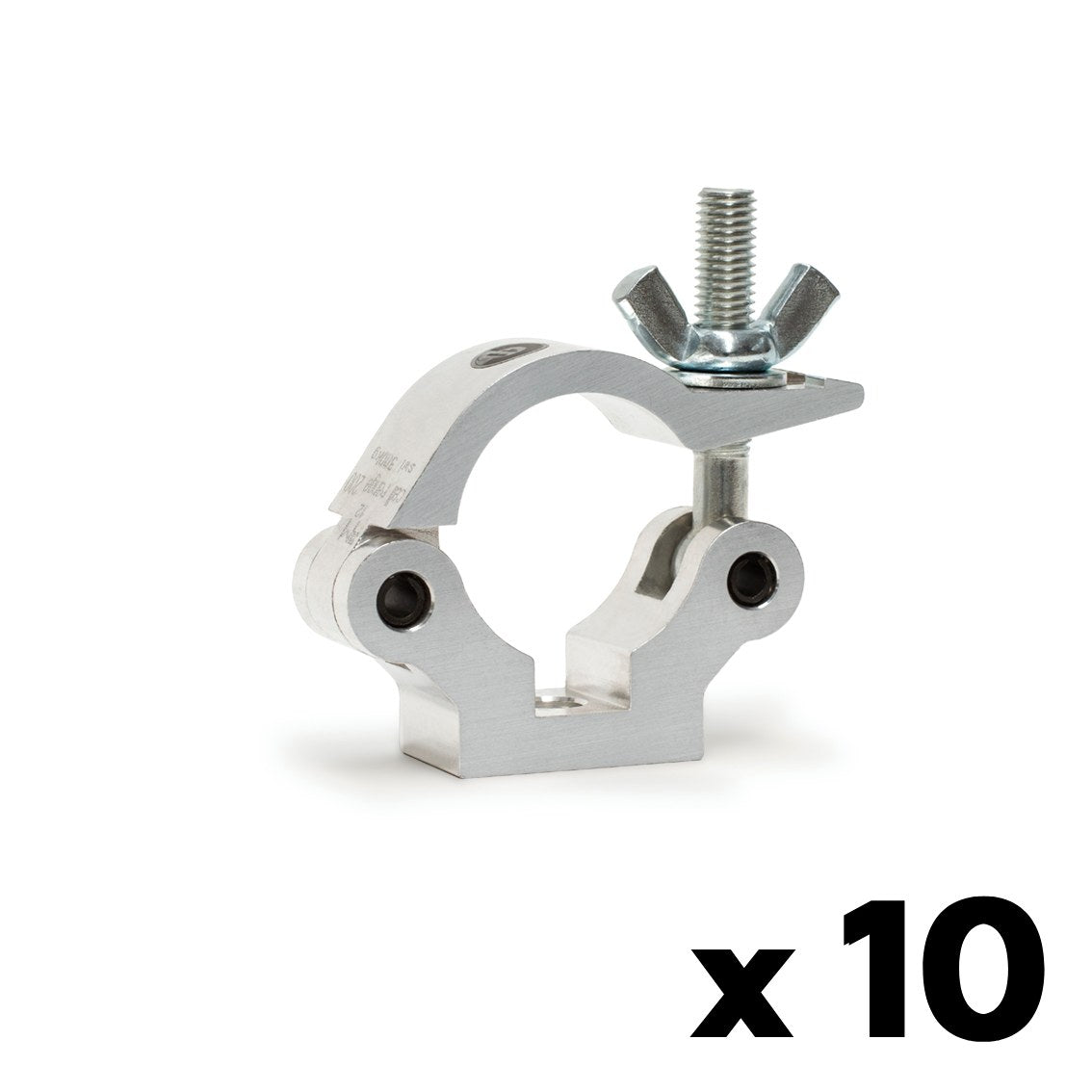

The Cell207 Slim Basic Clamp is a versatile and dependable rigging solution designed to secure equipment to 48-51mm (1 7/8''-2'') diameter tubes. Crafted from precision extruded high tensile aluminium alloy, this clamp delivers outstanding strength and durability in a lightweight package. With a safe working load (SWL) of 560kg (1235 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and 1120kg (2469 lbs) at a 4:1 safety factor under 2006/42/EC, it’s built to tackle heavy-duty applications with reliability—perfect for concerts, exhibitions, and installations.
This clamp offers broad compatibility with truss systems such as M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, making it an adaptable choice for diverse setups. It comes equipped with an M12 bolt and wingnut for fast, tool-free attachment to the truss, while the mounting hole supports bolts up to 13mm for securing your equipment. Featuring a polished surface with micro-percussion markings for a sleek, professional look, it’s also available in powder-coated versions upon request for a customized finish.
Package with 10 pcs
Key Features
- Tube Compatibility: Fits 48-51mm (1 7/8''-2'') diameter tubes.
- Load Capacity: SWL 560kg (1235 lbs) at SF8:1 (DGUV17/BGV C1); 1120kg (2469 lbs) at SF4:1 (2006/42/EC).
- Material: High tensile aluminium alloy—lightweight and robust.
- Easy Installation: Includes M12 bolt and wingnut for quick truss attachment.
- Mounting Options: Supports bolts up to 13mm for equipment security.
- Truss Compatibility: Works with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62.
- Safety Certified: Meets DGUV17/BGV C1 standards.
- Finish: Polished with micro-percussion markings; powder-coated options available.
Specifications
Specifications
-
Tube Diameter (in)
-
Truss Series CompatibilityM290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62
-
What's In the box What is in the package
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The Cell207 Slim Basic Clamp is a versatile and dependable rigging solution designed to secure equipment to 48-51mm (1 7/8''-2'') diameter tubes. Crafted from precision extruded high tensile aluminium alloy, this clamp delivers outstanding strength and durability in a lightweight package. With a safe working load (SWL) of 560kg (1235 lbs) at an 8:1 safety factor under DGUV17/BGV C1 and 1120kg (2469 lbs) at a 4:1 safety factor under 2006/42/EC, it’s built to tackle heavy-duty applications with reliability—perfect for concerts, exhibitions, and installations.
This clamp offers broad compatibility with truss systems such as M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, making it an adaptable choice for diverse setups. It comes equipped with an M12 bolt and wingnut for fast, tool-free attachment to the truss, while the mounting hole supports bolts up to 13mm for securing your equipment. Featuring a polished surface with micro-percussion markings for a sleek, professional look, it’s also available in powder-coated versions upon request for a customized finish.
Package with 10 pcs
Key Features
- Tube Compatibility: Fits 48-51mm (1 7/8''-2'') diameter tubes.
- Load Capacity: SWL 560kg (1235 lbs) at SF8:1 (DGUV17/BGV C1); 1120kg (2469 lbs) at SF4:1 (2006/42/EC).
- Material: High tensile aluminium alloy—lightweight and robust.
- Easy Installation: Includes M12 bolt and wingnut for quick truss attachment.
- Mounting Options: Supports bolts up to 13mm for equipment security.
- Truss Compatibility: Works with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62.
- Safety Certified: Meets DGUV17/BGV C1 standards.
- Finish: Polished with micro-percussion markings; powder-coated options available.
