Extended parallel coupler L39.37" for 48-51mm (1 7/8"-2") tube
Speedy Delivery. No Surprises.
Speedy Delivery. No Surprises.
Flat-rate shipping of $50 or less on every order.
Orders typically ship the next business day, so you can get what you need — fast.
Contact us

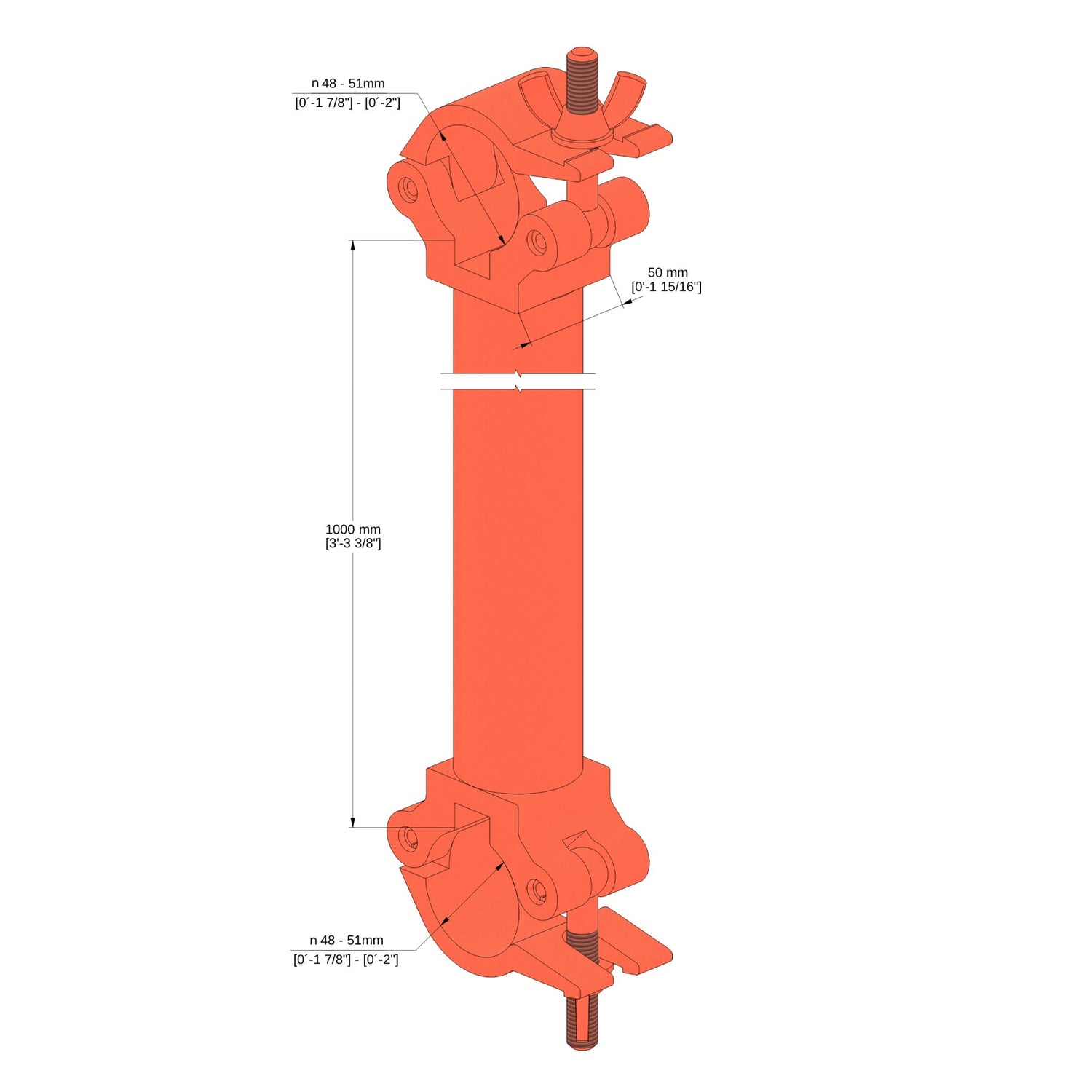

The CELL209L3 is a practical rigging accessory consisting of a set of two clamps connected by an aluminum tube, designed for secure parallel tube connections in truss systems. Crafted from precision extruded high tensile aluminum alloy, this assembly provides reliable performance with a polished surface featuring micropercussion marking for professional applications in events, exhibitions, and installations. Featuring a connecting tube for parallel mounting with a length of 39.37 inches (1000 mm), it is compatible with 48-51mm (1 7/8"–2") diameter tubes and includes an M12 closing bolt with wingnut for secure fastening. Certified with DGUV 17 / BGV C1 rating and TÜV NORD tested, it offers safety factors of 8:1 under DGUV-17/BGV C1 and 4:1 under 2006/42/EC, ensuring safe and efficient connections. This clamp set works seamlessly with truss systems like M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, making it ideal for users needing a sturdy and adaptable solution.
Key Features:
- Set of two clamps connected for parallel tube connections

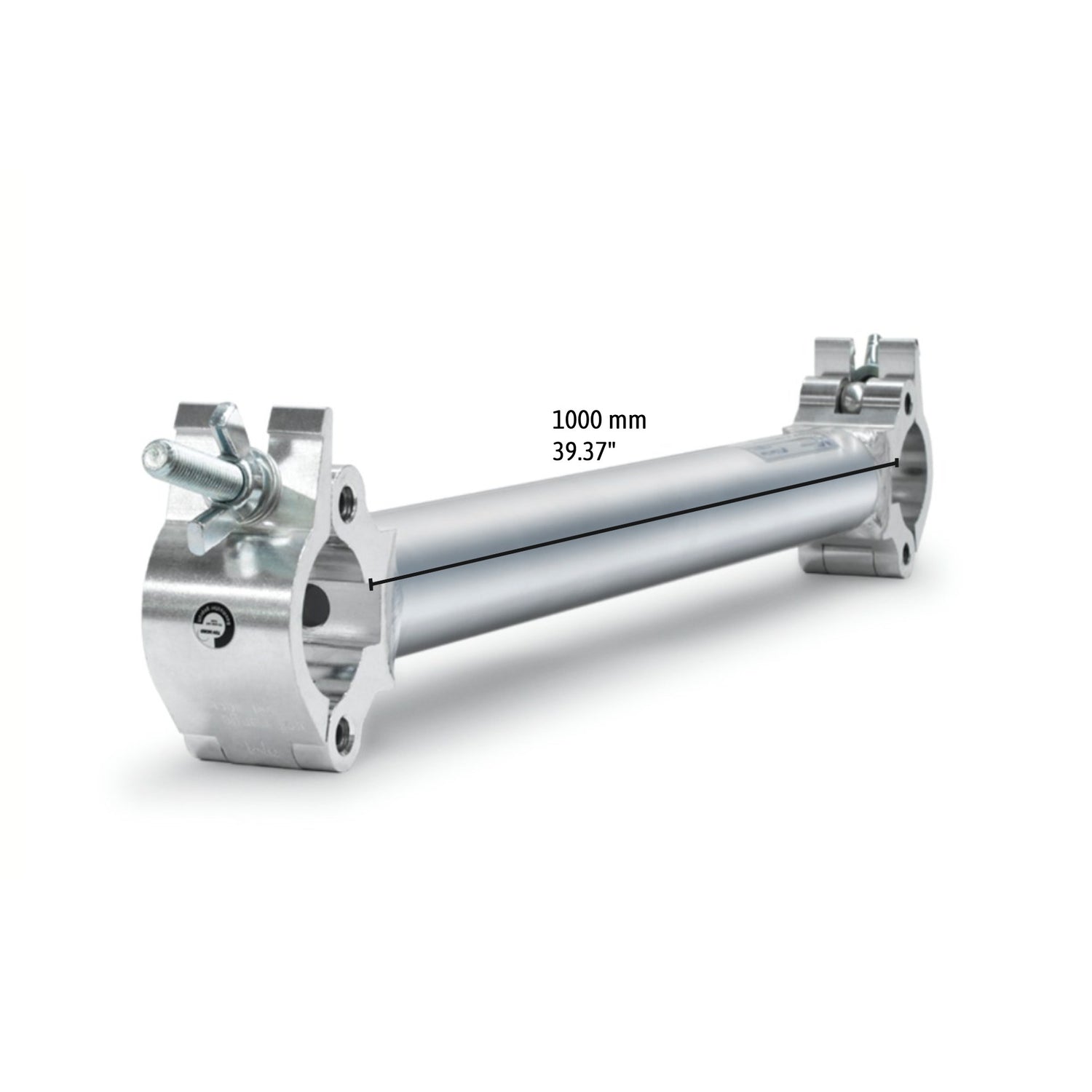

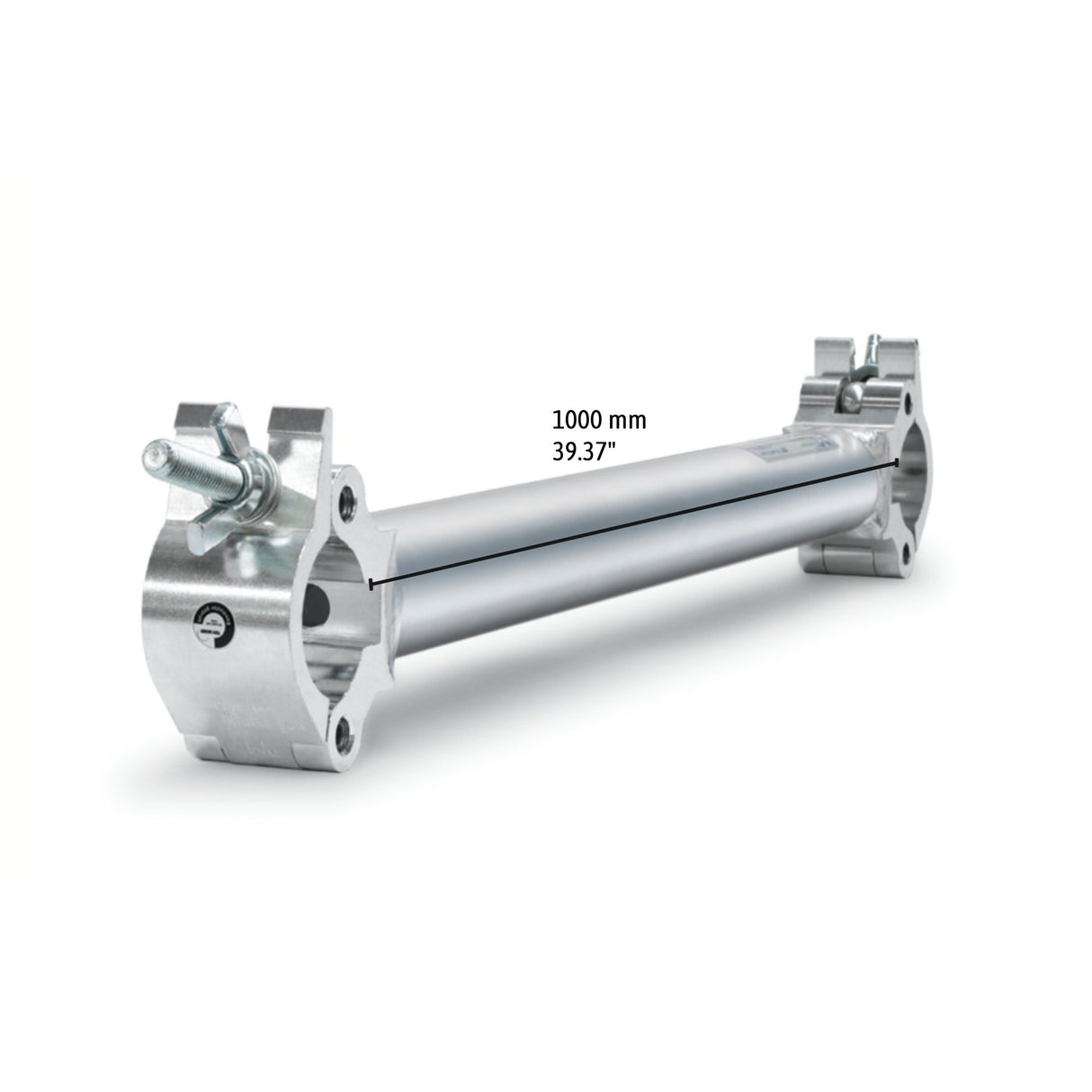

- Aluminum tube length: 39.37 inches (1000 mm)
- Suitable for tubes with diameter 1 7/8 - 2 inches (48-51 mm)
- High tensile aluminum alloy construction with polished finish and micropercussion marking
- M12 closing bolt and wingnut for secure attachment
- Mounting hole up to 13mm (1/2") bolt
- Safety certified: DGUV 17 / BGV C1 and TÜV NORD tested, with SF 8:1 and 4:1 ratings
- Compatible with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62 truss series
- Designed for truss systems in events and installations
Specifications
Specifications
-
Tube Diameter (in)
-
Truss Series CompatibilityM290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62
-
Extension tube length (in)
-
What's In the box What is in the package
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The CELL209L3 is a practical rigging accessory consisting of a set of two clamps connected by an aluminum tube, designed for secure parallel tube connections in truss systems. Crafted from precision extruded high tensile aluminum alloy, this assembly provides reliable performance with a polished surface featuring micropercussion marking for professional applications in events, exhibitions, and installations. Featuring a connecting tube for parallel mounting with a length of 39.37 inches (1000 mm), it is compatible with 48-51mm (1 7/8"–2") diameter tubes and includes an M12 closing bolt with wingnut for secure fastening. Certified with DGUV 17 / BGV C1 rating and TÜV NORD tested, it offers safety factors of 8:1 under DGUV-17/BGV C1 and 4:1 under 2006/42/EC, ensuring safe and efficient connections. This clamp set works seamlessly with truss systems like M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, making it ideal for users needing a sturdy and adaptable solution.
Key Features:
- Set of two clamps connected for parallel tube connections
- Aluminum tube length: 39.37 inches (1000 mm)
- Suitable for tubes with diameter 1 7/8 - 2 inches (48-51 mm)
- High tensile aluminum alloy construction with polished finish and micropercussion marking
- M12 closing bolt and wingnut for secure attachment
- Mounting hole up to 13mm (1/2") bolt
- Safety certified: DGUV 17 / BGV C1 and TÜV NORD tested, with SF 8:1 and 4:1 ratings
- Compatible with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62 truss series
- Designed for truss systems in events and installations
