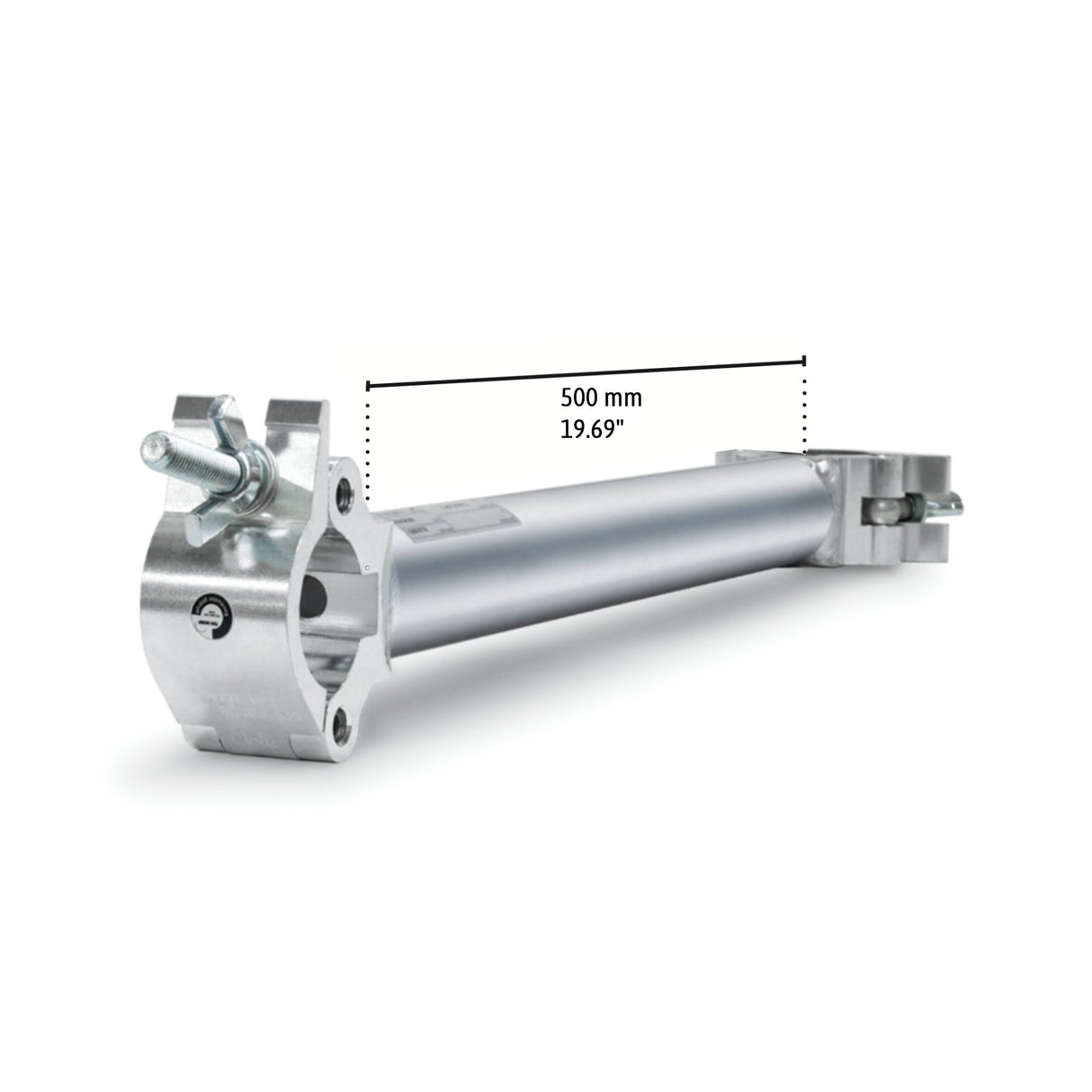

Extended 90° fixed coupler L500mm for 48-51mm (1 7/8"-2") tube
Delivery and Shipping
Delivery and Shipping
Your shipping will be calculated on checkout.
If not mentioned, items are shipped next working day.
Contact us
The CELL210L2 is a practical rigging accessory consisting of a set of two clamps connected by an aluminum tube, designed for secure 90-degree tube connections in truss systems. Crafted from precision extruded high tensile aluminum alloy, this assembly provides reliable performance with a polished surface featuring micropercussion marking for professional applications in events, exhibitions, and installations. Featuring a connecting tube for 90-degree mounting with a length of 19.69 inches (500 mm), it is compatible with 48-51mm (1 7/8"–2") diameter tubes and includes an M12 closing bolt with wingnut for secure fastening. Certified with DGUV 17 / BGV C1 rating and TÜV NORD tested, it offers safety factors of 8:1 under DGUV-17/BGV C1 and 4:1 under 2006/42/EC, ensuring safe and efficient connections. This clamp set works seamlessly with truss systems like M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, making it ideal for users needing a sturdy and adaptable solution.
Key Features:
- Set of two clamps connected for 90-degree tube connections

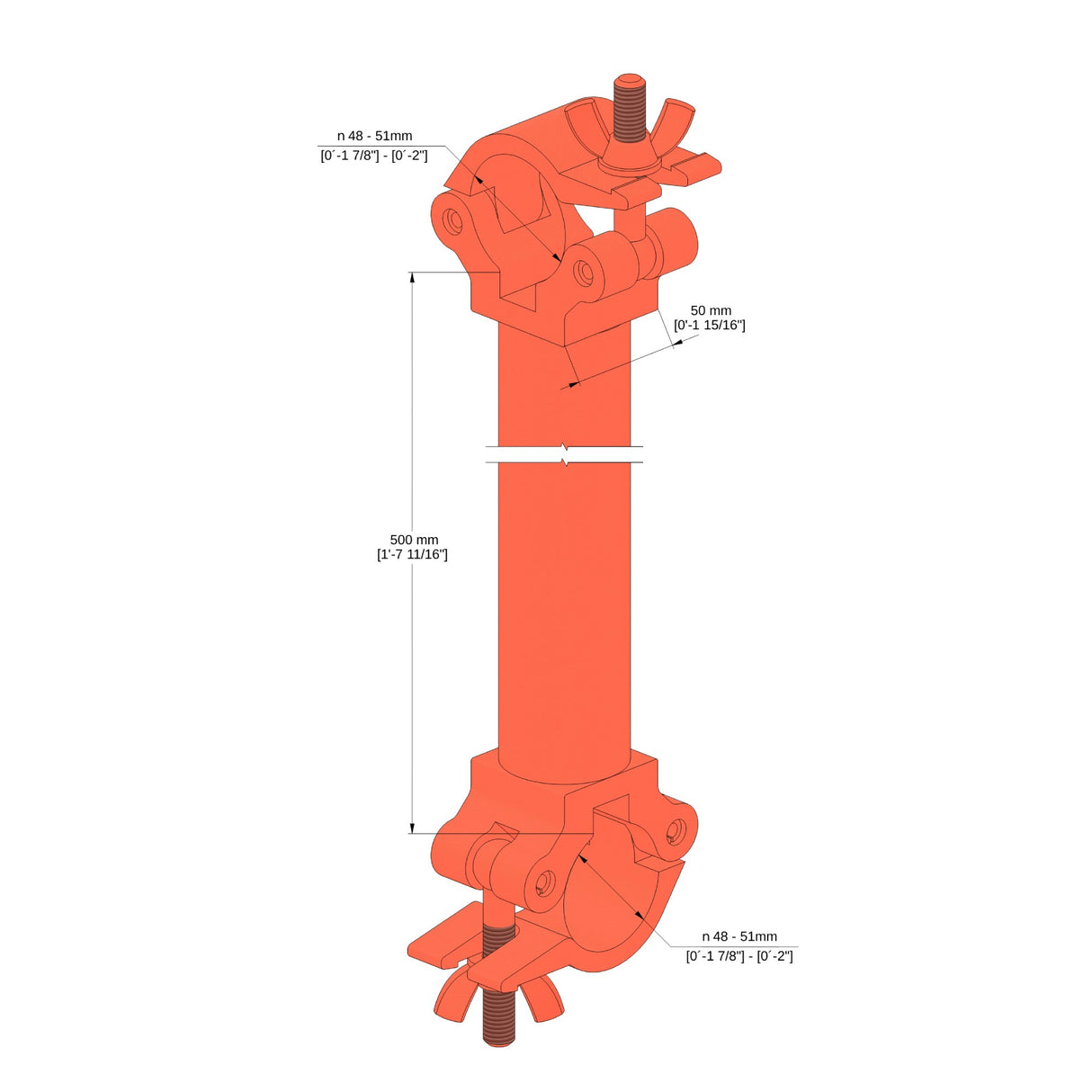

- Aluminum tube length: 19.69 inches (500 mm)
- Suitable for tubes with diameter 1 7/8 - 2 inches (48-51 mm)
- High tensile aluminum alloy construction with polished finish and micropercussion marking
- M12 closing bolt and wingnut for secure attachment
- Mounting hole up to 13mm (1/2") bolt
- Safety certified: DGUV 17 / BGV C1 and TÜV NORD tested, with SF 8:1 and 4:1 ratings
- Compatible with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62 truss series
- Designed for truss systems in events and installations
Support documents
Support documents
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Detail
The CELL210L2 is a practical rigging accessory consisting of a set of two clamps connected by an aluminum tube, designed for secure 90-degree tube connections in truss systems. Crafted from precision extruded high tensile aluminum alloy, this assembly provides reliable performance with a polished surface featuring micropercussion marking for professional applications in events, exhibitions, and installations. Featuring a connecting tube for 90-degree mounting with a length of 19.69 inches (500 mm), it is compatible with 48-51mm (1 7/8"–2") diameter tubes and includes an M12 closing bolt with wingnut for secure fastening. Certified with DGUV 17 / BGV C1 rating and TÜV NORD tested, it offers safety factors of 8:1 under DGUV-17/BGV C1 and 4:1 under 2006/42/EC, ensuring safe and efficient connections. This clamp set works seamlessly with truss systems like M290, M390, M400, M520, M760, 4GS-35, 4GS-50, and 4GS-62, making it ideal for users needing a sturdy and adaptable solution.
Key Features:
- Set of two clamps connected for 90-degree tube connections
- Aluminum tube length: 19.69 inches (500 mm)
- Suitable for tubes with diameter 1 7/8 - 2 inches (48-51 mm)
- High tensile aluminum alloy construction with polished finish and micropercussion marking
- M12 closing bolt and wingnut for secure attachment
- Mounting hole up to 13mm (1/2") bolt
- Safety certified: DGUV 17 / BGV C1 and TÜV NORD tested, with SF 8:1 and 4:1 ratings
- Compatible with M290, M390, M400, M520, M760, 4GS-35, 4GS-50, 4GS-62 truss series
- Designed for truss systems in events and installations
